NLV17SG17DFT2G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> NLV17SG17DFT2G

NLV17SG17DFT2G: DescriptionIC INVERTER SCHMITT 1CH SC88A; Categorylogic logic; File Size89KB，9 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

NLV17SG17DFT2G Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NLV17SG17DFT2G	-	-	View	Buy Now

NLV17SG17DFT2G Overview

IC INVERTER SCHMITT 1CH SC88A

NLV17SG17DFT2G Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Lead free
Maker	ON Semiconductor
package instruction	TSSOP,
Manufacturer packaging code	419A-02
Reach Compliance Code	compliant
Factory Lead Time	1 week
series	LVP
JESD-30 code	R-PDSO-G5
JESD-609 code	e3
length	2 mm
Logic integrated circuit type	BUFFER
Humidity sensitivity level	1
Number of functions	1
Number of entries	1
Number of terminals	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	35.9 ns
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	0.9 V
Nominal supply voltage (Vsup)	1.1 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	1.25 mm

Preview

Download Datasheet

View All

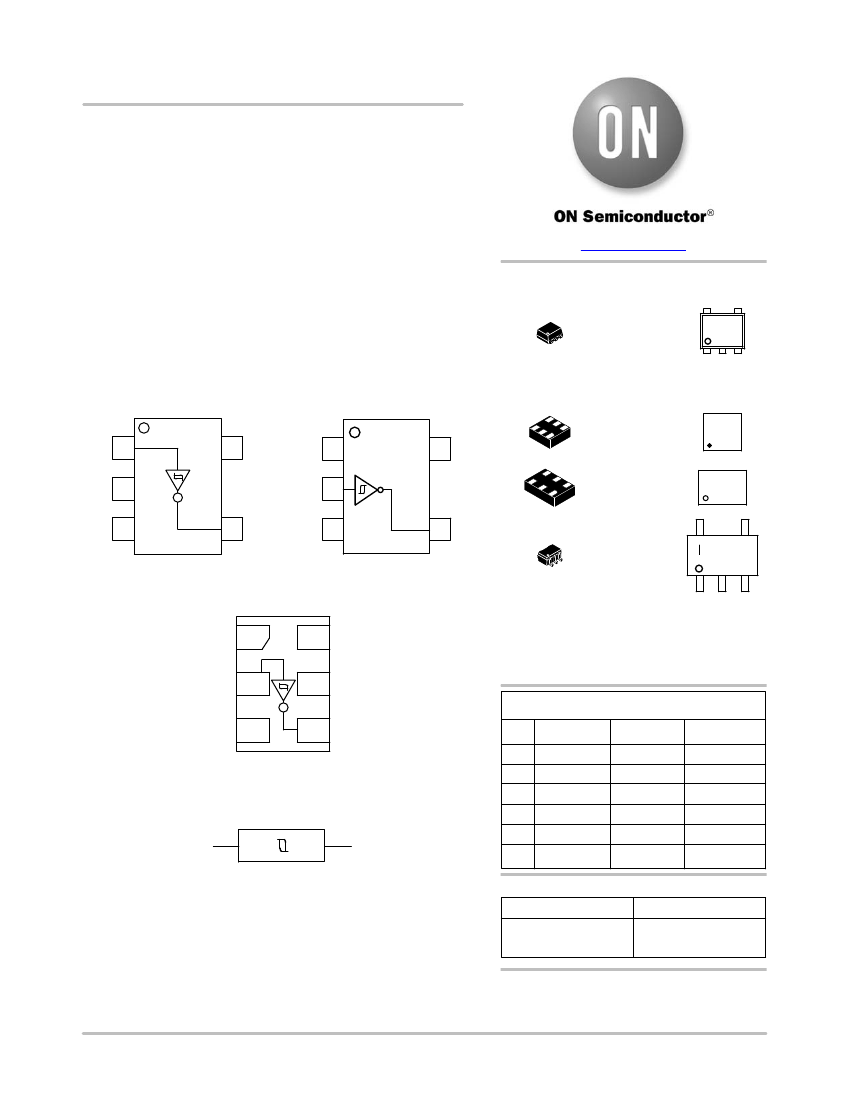

NL17SG17

Schmitt Buffer

The NL17SG17 MiniGatet is an advanced high−speed CMOS

Schmitt Buffer in ultra−small footprint.

The NL17SG17 input structures provides protection when voltages

up to 4.6 V are applied.

Features

www.onsemi.com

MARKING

DIAGRAMS

SOT−953

CASE 527AE

= Specific Device Code

(A with 90 degree clockwise rotation)

UDFN6

1.0 x 1.0

CASE 517BX

UDFN6

1.45 x 1.0

CASE 517AQ

OUT Y

SC−88A

DF SUFFIX

CASE 419A

= Date Code*

= Pb−Free Package

AN M

•

Wide Operating V

Range: 0.9 V to 3.6 V

High Speed: t

= 3.7 ns (Typ) at V

= 3.0 V, C

= 15 pF

Low Power Dissipation: I

= 0.5

(Max) at T

= 25°C

4.6 V Overvoltage Tolerant (OVT) Input Pins

Ultra−Small Packages

These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS

Compliant

IN A

GND

IN A

OUT Y

GND

Figure 1. SOT−953

(Top Thru View)

Figure 2. SC−88A

(Top View)

(Note: Microdot may be in either location)

*Date Code orientation and/or position may vary

depending upon manufacturing location.

IN A

PIN ASSIGNMENT

GND

OUT Y

SOT−953

IN A

GND

OUT Y

SC−88A

IN A

GND

OUT Y

UDFN6

IN A

GND

OUT Y

Figure 3. UDFN6

(Top View)

IN A

OUT Y

Figure 4. Logic Symbol

FUNCTION TABLE

A Input

Y Output

ORDERING INFORMATION

See detailed ordering and shipping information on page 5 of

this data sheet.

Semiconductor Components Industries, LLC, 2015

July, 2015 − Rev. 6

Publication Order Number:

NL17SG17/D

NLV17SG17DFT2G Related Products

	NLV17SG17DFT2G	NL17SG17	NL17SG17CMUTCG
Description	IC INVERTER SCHMITT 1CH SC88A	17SG SERIES, 1-INPUT NON-INVERT GATE, PDSO5	17SG SERIES, 1-INPUT NON-INVERT GATE, PDSO5
series	LVP	17SG	17SG
length	2 mm	1 mm	1 mm
Number of functions	1	1	1
Number of terminals	5	5	6
Maximum operating temperature	125 °C	125 Cel	125 °C
Minimum operating temperature	-55 °C	-55 Cel	-55 °C
surface mount	YES	YES	YES
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	FLAT	NO LEAD
Terminal location	DUAL	DUAL	DUAL
width	1.25 mm	0.8000 mm	1 mm
Maker	ON Semiconductor	-	ON Semiconductor
package instruction	TSSOP,	-	VSON,
Reach Compliance Code	compliant	-	compliant
JESD-30 code	R-PDSO-G5	-	S-PDSO-N6
Logic integrated circuit type	BUFFER	-	BUFFER
Humidity sensitivity level	1	-	1
Number of entries	1	-	1
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	TSSOP	-	VSON
Package shape	RECTANGULAR	-	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	-	SMALL OUTLINE, VERY THIN PROFILE
propagation delay (tpd)	35.9 ns	-	58.1 ns
Maximum seat height	1.1 mm	-	0.55 mm
Maximum supply voltage (Vsup)	3.6 V	-	3.6 V
Minimum supply voltage (Vsup)	0.9 V	-	0.9 V
Nominal supply voltage (Vsup)	1.1 V	-	3 V
technology	CMOS	-	CMOS
Terminal surface	Tin (Sn)	-	Nickel/Gold/Palladium (Ni/Au/Pd)
Terminal pitch	0.65 mm	-	0.35 mm
