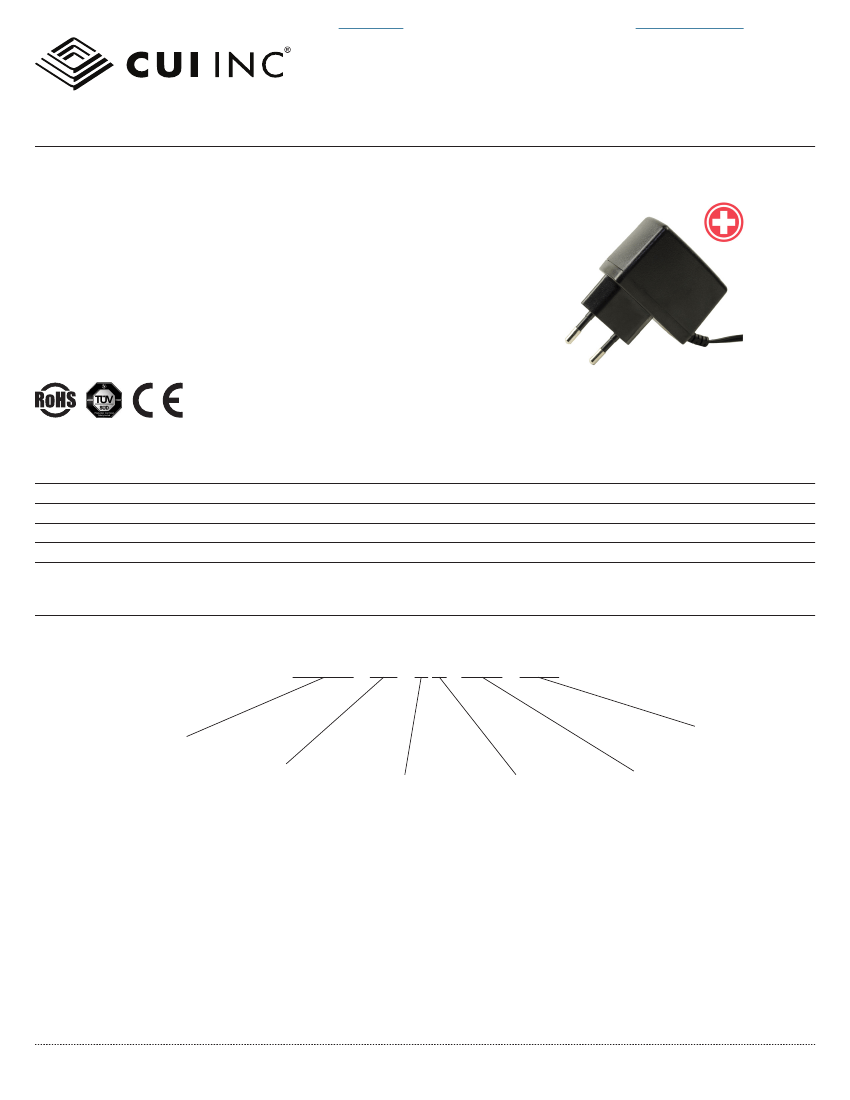

1. At full load, 100 ~ 240 Vac input, 20 MHz bandwidth oscilloscope, output terminated with a low ESR 47 μF electrolytic and 0.1 μF multilayer capacitor.
2. CoC Tier 2 compliant.
PART NUMBER KEY
SWM6
-
XX
- E
X
-
XXX
-
CXX
Base Number
Output Voltage
AC Input Type:
Europe
Orientation:
H = horizontal
V = vertical
Reserved for Custom
Configurations
DC Plug Type:
XXX = See output plug options
on page 4 for more details
cui.com
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SWM6-E
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
06/27/2017
│
page
2 of 5
INPUT
parameter
voltage
frequency
current
inrush current
leakage current
no load power consumption
at 115 Vac, full load
at 230 Vac, full load
at 115 Vac, full load, cold start
at 230 Vac, full load, cold start
at 240 Vac, 50 Hz
at 115/230 Vac, 60/50 Hz
conditions/description
min
90
47
typ
max
264
63
0.6
0.3
30
60
0.1
0.075
units
Vac
Hz
A
A
A
A
mA
W
OUTPUT
parameter
line regulation
load regulation
start-up time
rise time
hold-up time
at 100 Vac, to 90% of rated output voltage
at nominal input voltage, full load, from 10% to
90% of output voltage
at nominal input voltage, full load
8.3
conditions/description
min
typ
±1
±5
3
50
max
units
%
%
s
ms
ms
PROTECTIONS
parameter
over voltage protection
over current protection
short circuit protection
conditions/description
output shutdown, auto recovery
output shutdown, auto recovery
output shut down, auto recovery
200
%
min
typ
max
units
SAFETY & COMPLIANCE
parameter
isolation voltage
isolation resistance
safety approvals
EMI/EMC
MTBF
RoHS
conditions/description
input to output
input to output at 500 Vdc for 3 seconds
medical TUV EN 60601-1
CE
as per MIL-HDBK-217F
2011/65/EU
100,000
hours
50
min
typ
4,000
max
units
Vac
MΩ
ENVIRONMENTAL
parameter
operating temperature
storage temperature
operating humidity
storage humidity
altitude
non-condensing
non-condensing
conditions/description
min
0
-20
10
5
5,000
typ
max
40
85
90
90
units
°C
°C
%
%
m
cui.com
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SWM6-E
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
06/27/2017
│
page
3 of 5
MECHANICAL
parameter
dimensions
inlet plug
weight
color
conditions/description
horizontal models: 55 x 25 x 55
vertical models: 53 x 41 x 46
Europe
horizontal models
vertical models
black
60
65
g
g
min
typ
max
units
mm
mm

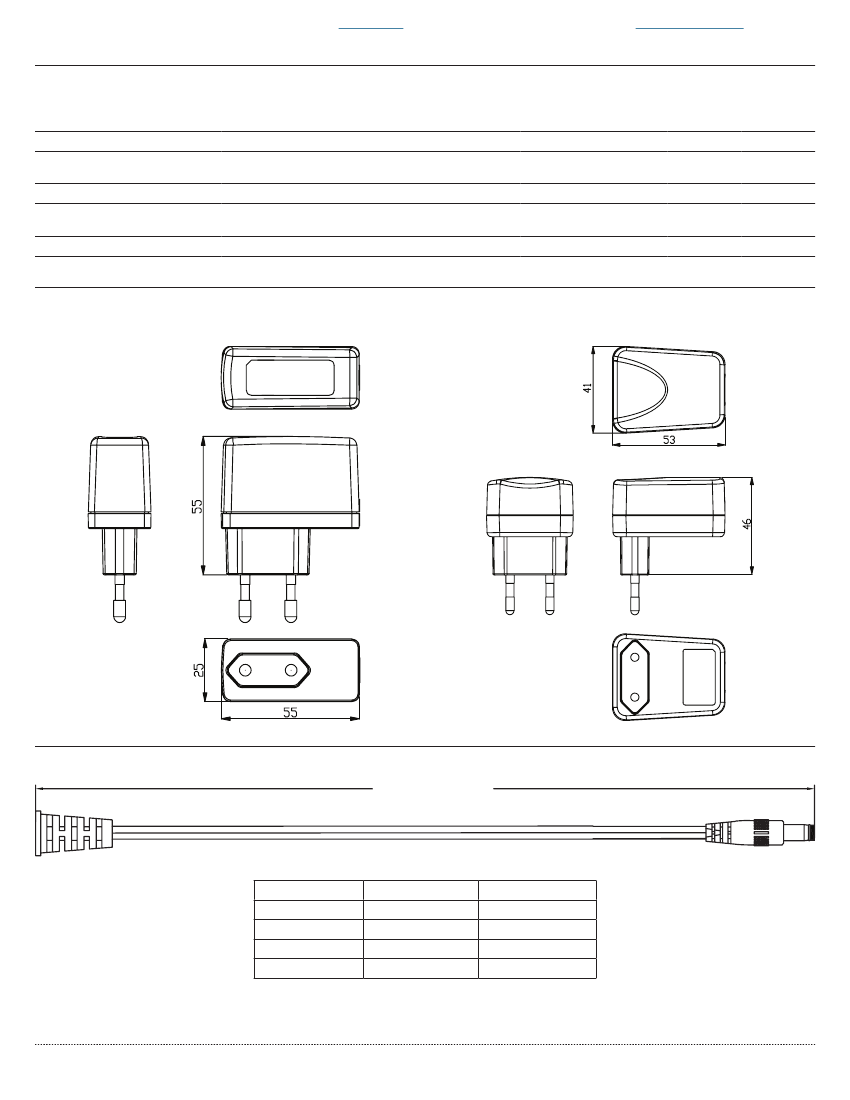

MECHANICAL DRAWINGS
units: mm
tolerance: ±1 mm
Horizontal Models
Vertical Models
DC CORD
units: mm
cord length
Table 1
MODEL NO.
SWM6-5-E
SWM6-6-E
SWM6-9-E
SWM6-12-E
CABLE
UL2468, 22 AWG
UL2468, 22 AWG
UL2468, 24 AWG
UL2468, 24 AWG
CORD LENGTH
1,500 mm ±50
1,500 mm ±50
1,500 mm ±50
1,500 mm ±50
cui.com
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SWM6-E
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
06/27/2017
│
page
4 of 5
DC PLUG TYPE PART NUMBER KEY
XXX
Plug Polarity:
P = Center Positive
N = Center Negative
Plug Code:
X = Choose a code from the
options below
Plug Angle:
“blank” = Straight
R = Right Angle
Plug Polarity
Center Pos.
●
●
●
●
●
●
●
●
N/A
N/A
Note:
Code
Option
5
6
7
8
9
12
13
14
ST
MUB
USB
Type
Standard
Standard
Standard
Standard
Standard
EIAJ-1
EIAJ-2
EIAJ-3
A
Dimensions (mm)
B
2.1
2.5
1.35
1.35
1.05
0.7
1.7
1.7
Micro USB Type B
C
9.5
9.5
9.5
9.5
9.5
9.5
9.5
9.5
5.5
5.5
3.5
3.8
3.8
2.35
4.0
4.75
Plug Angle
Straight
●
●
●
●
●
●
●
●
N/A
●
Right
●
●
●
●
●
●
●
●
N/A
N/A
Center Neg.
●
●
●
●
●
●
●
●
N/A
N/A
Stripped & Tinned
1. Contact CUI for additional plug options
Standard
C
EIAJ
C
B
A
A
B
C
B
A
A
C
B
Straight
Right Angle (R)
Straight
Right Angle (R)
Stripped & Tinned
5±1
USB
6.5±0.5
10±3
P5(-)
P1(+)
cui.com
For more information, please visit the
product page
|
For information on related products, view
Dc Power Connectors
CUI Inc
│
SERIES:
SWM6-E
│
DESCRIPTION:
AC-DC POWER SUPPLY
date
06/27/2017
│
page
5 of 5
REVISION HISTORY
rev.
1.0
description
initial release
The revision history provided is for informational purposes only and is believed to be accurate.
date
06/27/2017
Headquarters
20050 SW 112th Ave.
Tualatin, OR 97062
800.275.4899
Fax 503.612.2383
cui.com
techsupport@cui.com
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
CUI offers a one (1) year limited warranty. Complete warranty information is listed on our website.
CUI reserves the right to make changes to the product at any time without notice. Information provided by CUI is believed to be accurate and reliable. However, no responsibility is
assumed by CUI for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any component of a
life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.
