SRLAHS-10-01 datasheet, PDF - EEWORLD Datasheet

SRLAHS-10-01: DescriptionSN/RIV LOCKING ARROW SUPT 5/8"; Categoryaccessories; File Size35KB，1 Pages; ManufacturerEssentra Components; Environmental Compliance

Download Datasheet Parametric Compare View All

SRLAHS-10-01 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SRLAHS-10-01	-	-	View	Buy Now

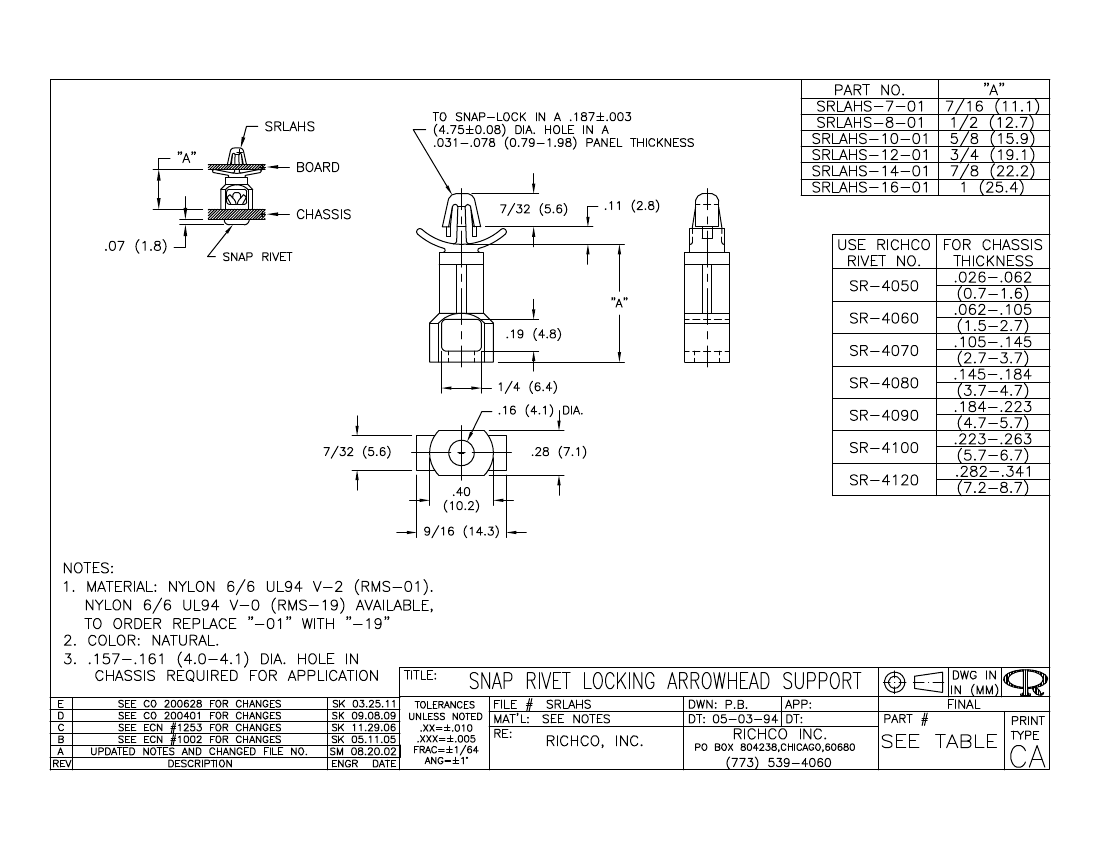

SN/RIV LOCKING ARROW SUPT 5/8"

Parameter Name	Attribute value
keep type	card lock
Installation type	buckle rivets
Height between panels	0.625"（15.88mm） 5/8"
Length - total	0.956"（24.28mm）
Support hole diameter	0.187"（4.75mm）3/16"
Support panel thickness	0.031" ~ 0.078"（0.79mm ~ 1.98mm）
Mounting hole diameter	0.157 ~ 0.161"（4.00 ~ 4.10mm）
Installation panel thickness	-
characteristic	Wing type
Material	nylon

SRLAHS-10-01 Related Products

	SRLAHS-10-01	SRLAHS-7-01	SRLAHS-12-01	SRLAHS-14-01	SRLAHS-8-01	SRLAHS-16-01
Description	SN/RIV LOCKING ARROW SUPT 5/8"	SN/riv locking arrow supt 7/16"	SN/RIV LOCKING ARROW SUPT 3/4"	SN/RIV LOCKING ARROW SUPT 7/8"	SN/RIV LOCKING ARROW SUPT 1/2"	SN/RIV LOCKING ARROW SUPT 1"
Material	nylon	Nyl	nylon	nylon	nylon	nylon
keep type	card lock	-	card lock	card lock	card lock	card lock
Installation type	buckle rivets	-	buckle rivets	buckle rivets	buckle rivets	buckle rivets
Height between panels	0.625"（15.88mm） 5/8"	-	0.750"（19.05mm）3/4"	0.875"（22.23mm）7/8"	0.500"（12.70mm）1/2"	1.000"（25.40mm）1"
Length - total	0.956"（24.28mm）	-	1.081"（27.46mm）	1.206"（30.63mm）	0.831"（21.10mm）	1.331"（33.80mm）
Support hole diameter	0.187"（4.75mm）3/16"	-	0.187"（4.75mm）3/16"	0.187"（4.75mm）3/16"	0.187"（4.75mm）3/16"	0.187"（4.75mm）3/16"
Support panel thickness	0.031" ~ 0.078"（0.79mm ~ 1.98mm）	-	0.031" ~ 0.078"（0.79mm ~ 1.98mm）	0.031" ~ 0.078"（0.79mm ~ 1.98mm）	0.031" ~ 0.078"（0.79mm ~ 1.98mm）	0.031" ~ 0.078"（0.79mm ~ 1.98mm）
Mounting hole diameter	0.157 ~ 0.161"（4.00 ~ 4.10mm）	-	0.157 ~ 0.161"（4.00 ~ 4.10mm）	0.157 ~ 0.161"（4.00 ~ 4.10mm）	0.157 ~ 0.161"（4.00 ~ 4.10mm）	0.157 ~ 0.161"（4.00 ~ 4.10mm）
characteristic	Wing type	-	Wing type	Wing type	Wing type	Wing type
