10MBZ2200M10x23 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 10MBZ2200M10x23

10MBZ2200M10x23: DescriptionMINIATURE ALUMINUM ELECTROLYTIC CAPACITORS; CategoryPassive components capacitor; File Size80KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

10MBZ2200M10x23 Overview

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

10MBZ2200M10x23 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
capacitance	2200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	12 mΩ
JESD-609 code	e3
leakage current	0.66 mA
Manufacturer's serial number	MBZ
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	2800 mA
surface mount	NO
Delta tangent	0.19
Terminal surface	Tin (Sn)
Terminal shape	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

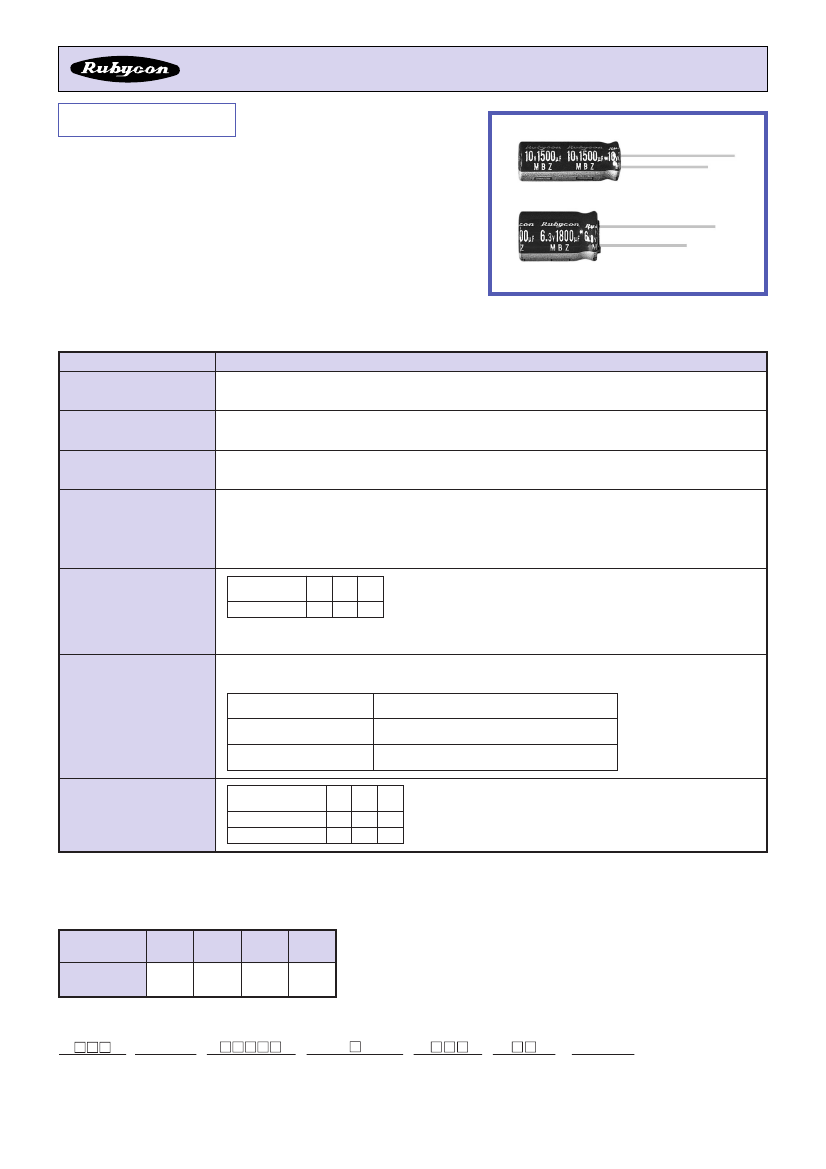

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

MBZ

SERIES

105°C Ultra Low ESR.

♦FEATURES

•

Ultra

Low ESR for VRM.

•

Enabled high ripple current by a reduction of ESR at high frequency range.

♦SPECIFICATIONS

Items

Category Temperature

Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

-40~+105°C

6.3~16V.DC

±20%(20°C,120Hz)

Leakage Current(MAX)

I=0.03CV (After 3 minutes application of rated voltage)

I=Leakage Current(µA)

Rated Voltage

(V)

tanδ

C=Rated Capacitance(µF)

(20°C,120Hz)

V=Rated Voltage(V)

6.3

Dissipation

Factor(MAX)

0.22 0.19 0.16

When rated capacitance is over 1000µF, tanδ shall be added 0.02 to the listed value with

increase of every 1000µF.

After applying rated voltage with rated ripple current for 2000hrs at 105°C, the capacitors shall

meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within

±25%

of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

Low Temperature

Stability

Impedance Ratio(MAX)

Rated Voltage

(V)

Z(-25°C)/Z(20°C)

Z(-40°C)/Z(20°C)

6.3

(120Hz)

♦MULTIPLIER

FOR RIPPLE CURRENT

Frequency coefficient

Frequency

(Hz)

Coefficient

120

0.50

0.80

10k

0.90

100k <

1.00

♦PART

NUMBER

MBZ

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

Lead Forming

DxL

Case Size

Recommended Resources

Circuit system composed of CPU

Silicon rectifier capacitor energy storage DC system circuit

Phase-shift trigger circuit of single-junction transistor a

Motor delayed starting control circuit b

Dual time constant bidirectional thyristor dimming light circuit

Bidirectional diode trigger circuit
