B390Q-13-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> B390Q-13-F

B390Q-13-F: DescriptionDIODE SCHOTTKY 90V 3A SMC; Categorysemiconductor Discrete semiconductor; File Size257KB，4 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

B390Q-13-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B390Q-13-F	-	-	View	Buy Now

B390Q-13-F Overview

DIODE SCHOTTKY 90V 3A SMC

B390Q-13-F Parametric

Parameter Name	Attribute value
Diode type	Schottky
Voltage - DC Reverse (Vr) (Maximum)	90V
Current - average rectification (Io)	3A
Voltage at different If - Forward (Vf	790mV @ 3A
speed	Fast recovery = < 500 ns, > 200mA (Io)
Current at different Vr - Reverse leakage current	500µA @ 90V
Capacitance at different Vr, F	100pF @ 4V，1MHz
Installation type	surface mount
Package/casing	DO-214AB，SMC
Supplier device packaging	SMC
Operating Temperature - Junction	-55°C ~ 125°C

Preview

Download Datasheet

View All

Green

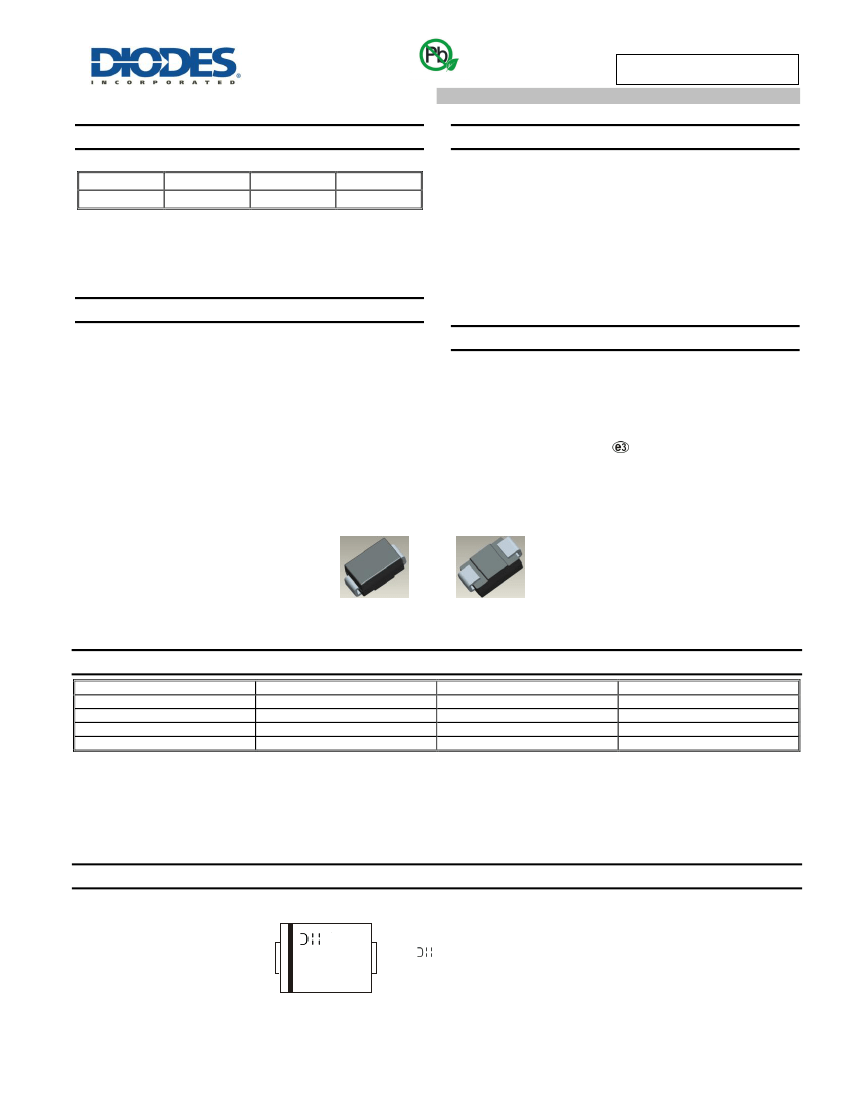

B370Q - B3100Q

3.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER

Product Summary

B370Q/B380Q/B390Q/B3100Q

RRM

(V)

70/80/90/100

(A)

3.0

F max

(V)

0.79

R max

(mA)

0.5

Features and Benefits



Guard Ring Die Construction for Transient Protection

Low Power Loss, High Efficiency

Surge Overload Rating to 100A Peak

For Use in Low Voltage, High Frequency Inverters, Free

Wheeling, and Polarity Protection Application

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Description and Applications

This Schottky Barrier Rectifier has been designed to meet the general

requirements of commercial applications. It is ideally suited for use

as:



Polarity Protection Diode



Re-Circulating Diode



Switching Diode

Mechanical Data



Case: SMC

Case Material: Molded Plastic, “Green” Molding Compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Lead Free Plating (Matte Tin Finish). Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: 0.21 grams (Approximate)

Top View

Bottom View

Ordering Information

(Note 5)

Part Number

B370Q-13-F

B380Q-13-F

B390Q-13-F

B3100Q-13-F

Notes:

Compliance

Automotive

Case

SMC

Packaging

3000/Tape & Reel

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

B3X0 = Product Type Marking Code, ex: B380 (SMC Package)

B3XX0 = Product Type Marking Code, ex: B3100 (SMC Package)

= Manufacturers’ Code Marking

YWW = Date Code Marking

Y = Last Digit of Year (ex: 5 for 2015)

WW = Week Code (01 to 53)

YWW

B3X(X)0

B370Q - B3100Q

Document number: DS38667 Rev. 1 - 2

1 of 4

www.diodes.com

March 2016

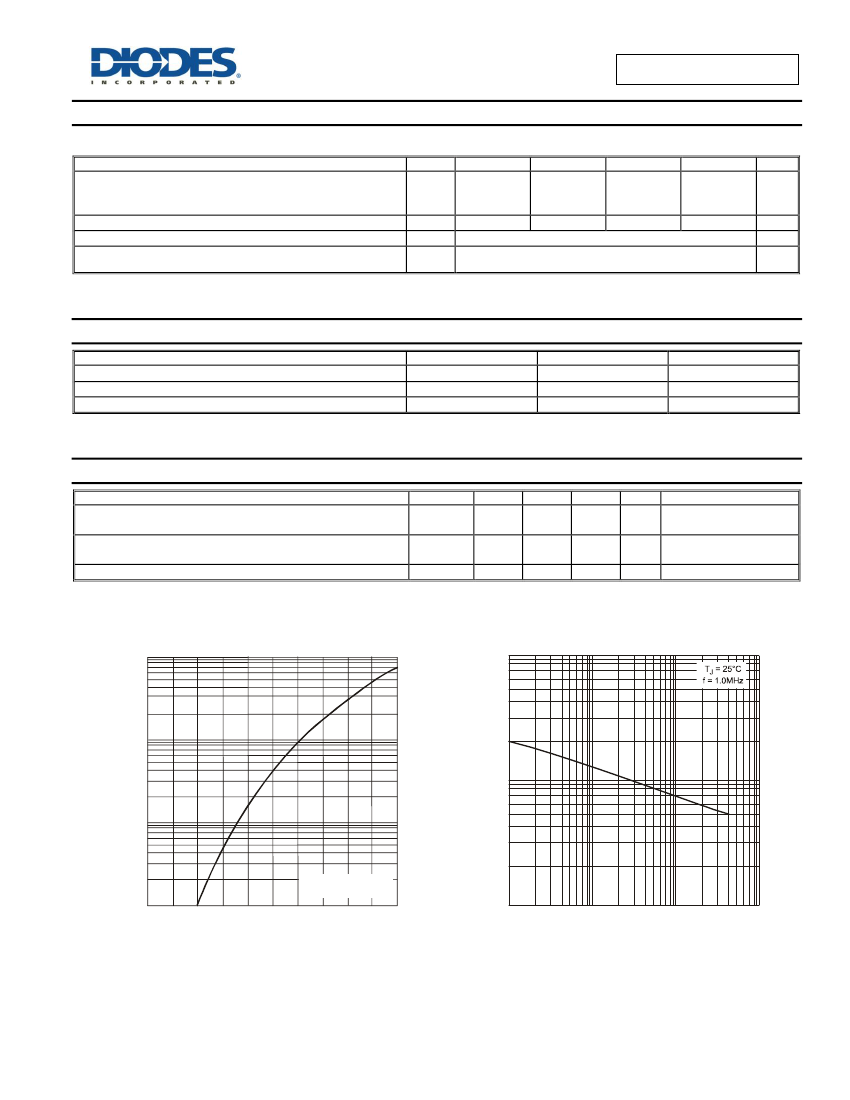

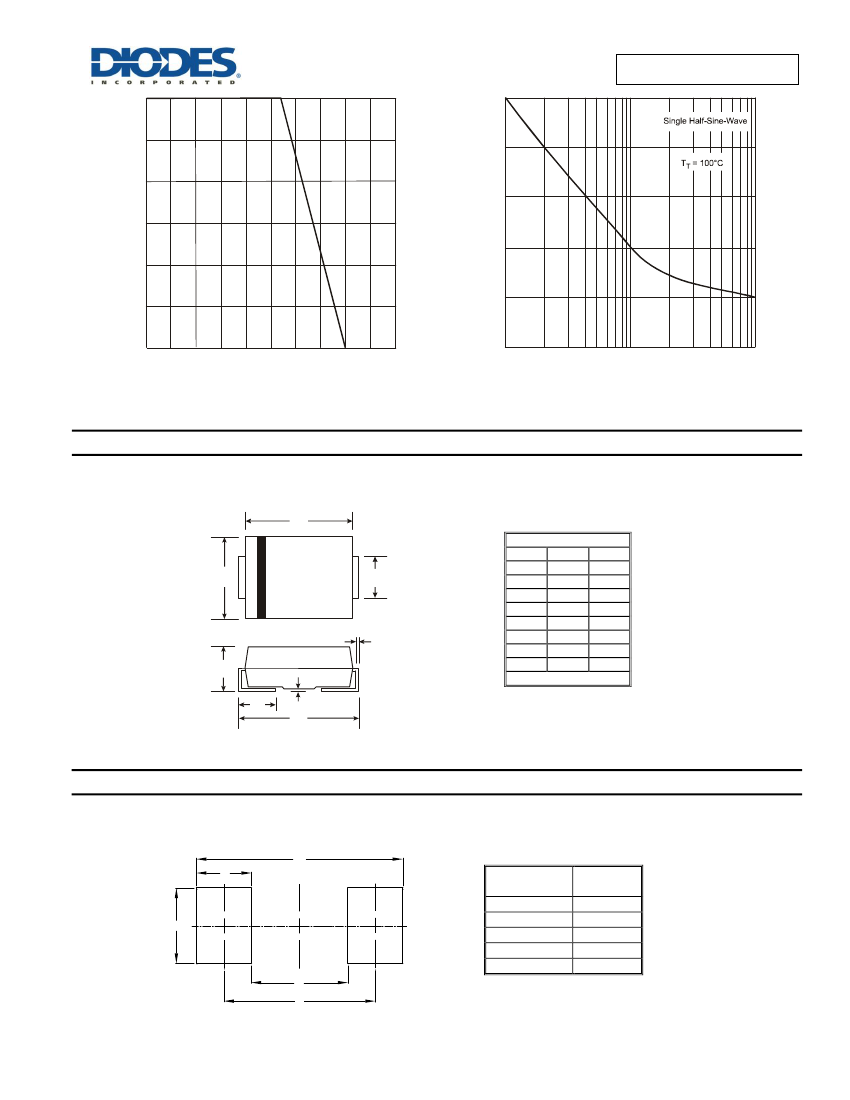

B370Q - B3100Q

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

B370Q - B3100Q

Document number: DS38667 Rev. 1 - 2

4 of 4

www.diodes.com

March 2016
