1.5SMC110CALEADFREE datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> 1.5SMC110CALEADFREE

1.5SMC110CALEADFREE: DescriptionTrans Voltage Suppressor Diode, 1500W, 94V V(RWM), Bidirectional, 1 Element, Silicon, SMC, 2 PIN; CategoryDiscrete semiconductor diode; File Size878KB，3 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

1.5SMC110CALEADFREE Overview

Trans Voltage Suppressor Diode, 1500W, 94V V(RWM), Bidirectional, 1 Element, Silicon, SMC, 2 PIN

1.5SMC110CALEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	UL RECONGNIZED
Maximum breakdown voltage	115.5 V
Minimum breakdown voltage	104.5 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	BIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	94 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Base Number Matches	1

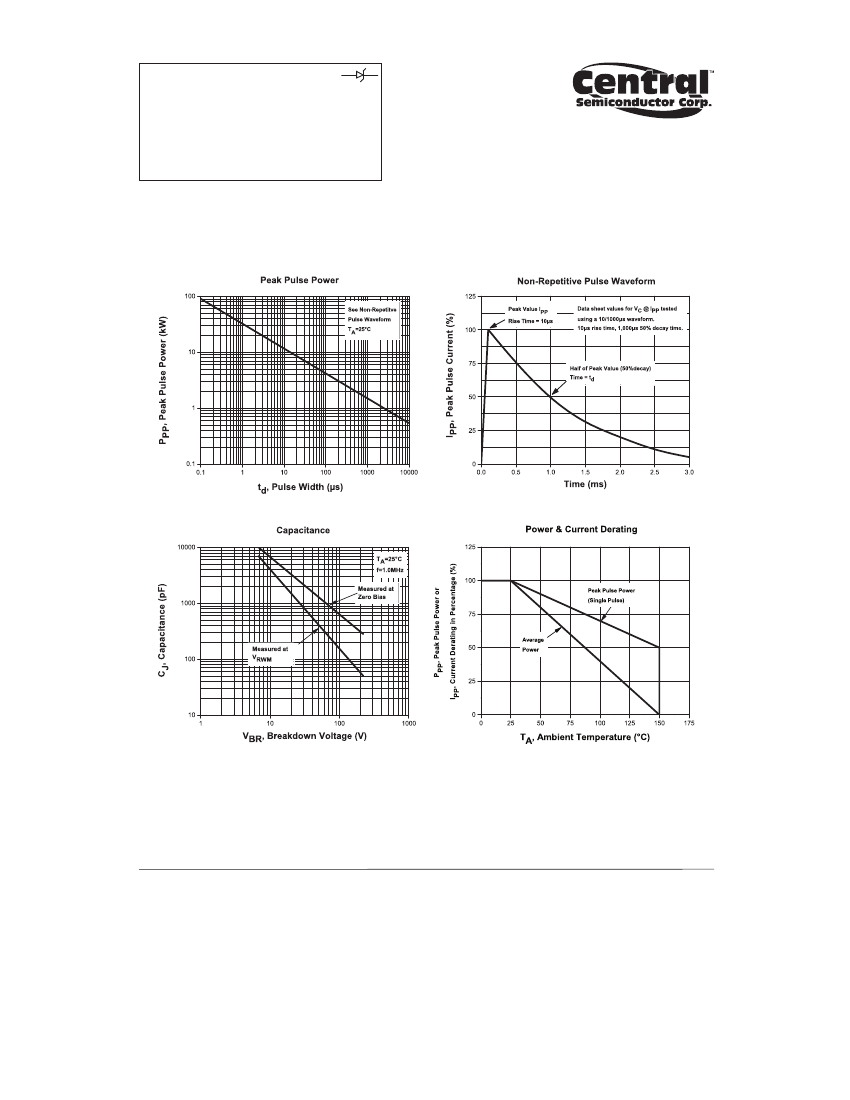

Preview

Download Datasheet

View All

1.5SMC6.8A

THRU

1.5SMC220A

SURFACE MOUNT SILICON

UNI-DIRECTIONAL

GLASS PASSIVATED JUNCTION

TRANSIENT VOLTAGE SUPPRESSORS

1500 WATT, 6.8 THRU 220 VOLT

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR 1.5SMC6.8A series

devices are surface mount uni-directional glass

passivated junction Transient Voltage Suppressors

designed to protect voltage sensitive components from

high voltage transients.

THIS DEVICE IS MANUFACTURED WITH A GLASS

PASSIVATED CHIP FOR OPTIMUM RELIABILITY.

Note: For bi-directional devices, please refer to the

1.5SMC6.8CA series data sheet.

MARKING CODE: SEE ELECTRICAL

CHARACTERISTICS TABLE

SYMBOL

PPK

IFSM

TJ, Tstg

UNITS

°C

SMC CASE

• This series is UL listed, UL file number E130224

MAXIMUM RATINGS:

(TA=25°C unless otherwise noted)

Peak Power Dissipation (Note 1)

Peak Forward Surge Current (JEDEC Method)

Operating and Storage Junction Temperature

1500

200

-65 to +150

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

BREAKDOWN

VOLTAGE

TYPE

VBR @ IT

MIN

1.5SMC6.8A

1.5SMC7.5A

1.5SMC8.2A

1.5SMC9.1A

1.5SMC10A

1.5SMC11A

1.5SMC12A

1.5SMC13A

1.5SMC15A

1.5SMC16A

1.5SMC18A

1.5SMC20A

1.5SMC22A

1.5SMC24A

1.5SMC27A

1.5SMC30A

1.5SMC33A

1.5SMC36A

1.5SMC39A

6.45

7.13

7.79

8.65

9.5

10.5

11.4

12.4

14.3

15.2

17.1

19.0

20.9

22.8

25.7

28.5

31.4

34.2

37.1

NOM

6.8

7.5

8.2

9.1

MAX

7.14

7.88

8.61

9.55

10.5

11.6

12.6

13.7

15.8

16.8

18.9

21.0

23.1

25.2

28.4

31.5

34.7

37.8

1.0

TEST

CURRENT

WORKING

PEAK

REVERSE

VOLTAGE

VRWM

5.8

6.4

7.02

7.78

8.55

9.4

10.2

11.1

12.8

13.6

15.3

17.1

18.8

20.5

23.1

25.6

28.2

30.8

33.3

MAXIMUM

REVERSE

LEAKAGE

CURRENT

IR @ VRWM

μA

1000

500

200

MAXIMUM

REVERSE

SURGE

CURRENT

(Note 1)

IRSM

143

132

124

112

103

59.5

MAXIMUM

TEMPERATURE

COEFFICIENT MARKING

CODE

VRSM @ IRSM

ΘV

10.5

11.3

12.1

13.4

14.5

15.6

16.7

18.2

21.2

22.5

25.2

27.7

30.6

33.2

37.5

41.4

45.7

49.9

53.9

% / °C

0.057

0.061

0.065

0.068

0.073

0.075

0.078

0.081

0.084

0.086

0.088

0.090

0.092

0.094

0.096

0.097

0.098

0.099

0.100

C6V8A

C7V5A

C8V2A

C9V1A

C10A

C11A

C12A

C13A

C15A

C16A

C18A

C20A

C22A

C24A

C27A

C30A

C33A

C36A

C39A

MAXIMUM

REVERSE

VOLTAGE

Notes: (1) Non-repetitive 10x1,000μs pulse.

R7 (11-September 2013)
