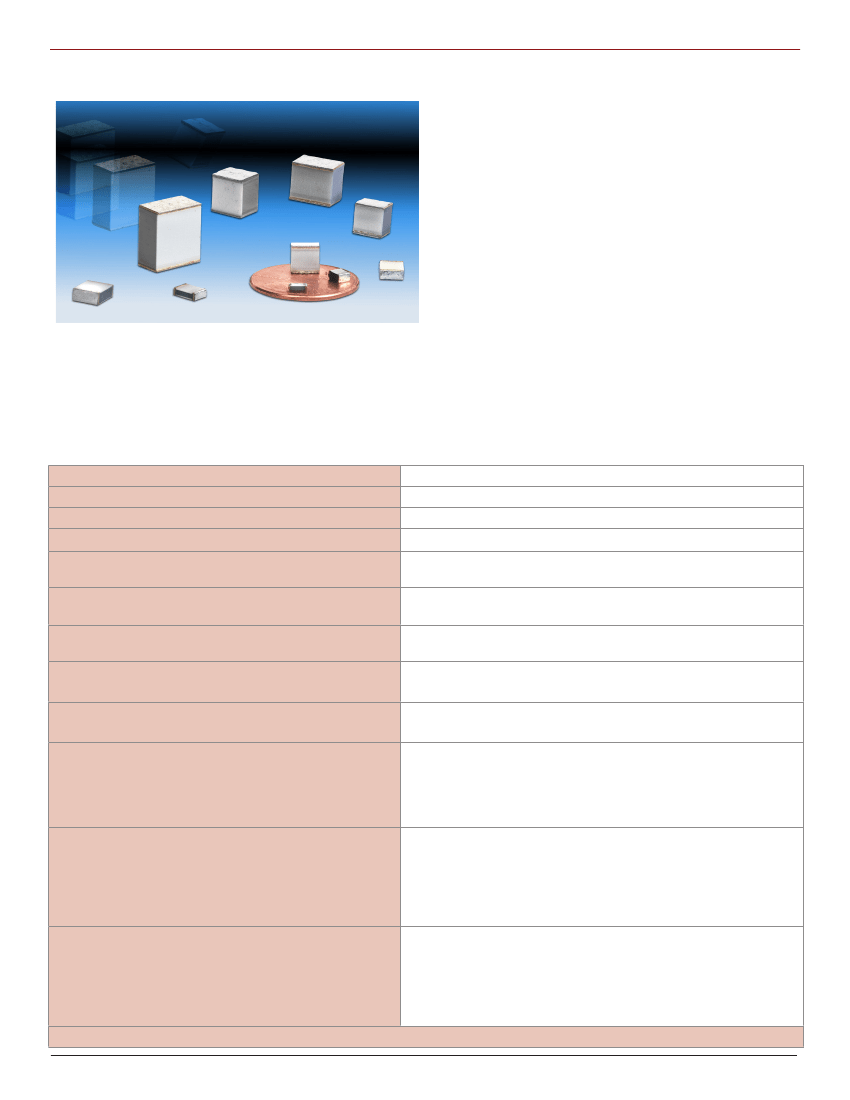

Type FCN Surface Mount Film Capacitors
Stable Stacked Metallized Film (PEN) Chips for Refow Soldering
Type FCN capacitors are designed for applications requiring a
general purpose SMT capacitor with stable temperature and
frequency characteristics similar to polyester flm capacitors.
They are ideal for applications such as EMI noise fltering, power
supply input/output filters, audio or signal coupling, and IC
power bus bypassing or decoupling. FCN SMT capacitors have
a non-inductive stacked metallized PEN flm construction which
results in a low ESR and excellent high frequency performance.
Highlights
T
ype FCN SMT capacitors are the general purpose line of CDE’s
surface mount product offerings. They range in capacitance from
.001 µF to 1.0 µF, and they are available in voltage ratings up to
400 Vdc.
•
•
•
•
•
Designed for refow soldering
Withstands 150% of rated voltage for 60 seconds
Stacked metallized polyethylene naphthalate (PEN) flm
Performs like polyester capacitors
Nonmagnetic and lead-free
Specifcations
Capacitance Range
Capacitance Tolerance
Rated Voltage
Dissipation Factor (Tan δ)
Operating Temperature Range
Surface Temperature
Insulation Resistance
Construction
Withstand Voltage
Life Test
1000 pF to 1.0 µF (1kHz at ≤5 Vrms)
±5% (J), ±10% (K) (See Ratings
16, 50, 100, 250 & 400 Vdc
1.0% Max. (1 kHz at 5 Vrms)
16, 50, 100Vdc (<0.012 µF); –55 ºC to +105 ºC
100 Vdc (≥ 0.012 µF), 250, 400 Vdc; –40 ºC to +85 ºC
16 V & 50 V & 100 V ≤ 0.01 µF: 240 ºC max
100 V ≥ 0.012 µF, 250 V & 400 V: 230 ºC max
C >0.33 µF: IR = 1000 MΩ•µF Min.
C ≤0.33 µF: IR ≥ 3000 MΩ
Stacked metallized polyphenylene sulfde (PPS) flm. Terminations are lead
free with a Sn-Ag-Cu solder fnish.
16 V & 50 V, 100 V ≤ 0.01 µF: 175% rated voltage, 5 s
100 V ≥ 0.012 µF, 250 V and 400 V: 150% rated voltage, 5 s
1000 h at rated temp. & 125% rated voltage
∆ Capacitance: +1%, –6% max
Dissipation Factor: 1.1% max
IR: 1000 MΩmin (C>0.33 µF, 300 MΩ•µF min)
No signifcant visual damage
5 s at max capacitor surface temperature
∆ Capacitance: ±5% max
Dissipation Factor: 1.1% max
IR: 1000 MΩ min (C >0.33 µF, 300 MΩ•µF min)
Voltage withstanding: 1.5 times rated voltage, 1 min.
No signifcant visual damage.
500 h at 85 ºC and 85% RH
∆ Capacitance: ±10% max
Dissipation Factor: 2% max
IR: 10 MΩ min (C >0.33 µF, 3 MΩ·µF min)
Voltage withstanding: 1.3 times rated voltage,1 min.
No signifcant damage
RoHS Compliant
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.
cde.com
Resistance to Soldering Heat
Moisture Resistance
Type FCN Surface Mount Film Capacitors
Part Numbering System
FCN
1206
A
102
J
H2
Tape
Packaging
Type
FCN
Case Size
1206
1913
2416
2420
2820
3022
3925
3931
6031
6040
Voltage
C
= 16 Vdc
H
= 50 Vdc
A
= 100 Vdc
E
= 250 Vdc
G
= 400 Vdc
Capacitance
102
= 0.001 µF
223
= 0.022 µF
474
= 0.47 µF
Tolerance
J
= ±5%
K
= ±10%
Code
K1
J1, J2
H1, H2
H3
G1, G2, G3
E1, E2
E3, E4
D1, D2
D3, D4, D5
B, Z
U, V, X, Y
S, T
=
=
=
=
=
=
=
=
=
=
=
=
Width
(mm)
8
8
8
8
8
12
12
12
12
12
16
24
Tape
Diameter
[in.(mm)]
7 (178)
7 (178)
7 (178)
7 (178)
7 (178)
13 (330)
13 (330)
13 (330)
13 (330)
13 (330)
13 (330)
13 (330)
Reel
Quantity
4000
3000
3000
2000
2000
3000
2000
3000
2000
1500
1000
750
Outline Drawing
L
T
t
W
t = 0.014 ± 0.008 in. (0.35 ±0.2 mm)
For 0.001 µF – 0.01 µF, 100 V, t = 0.026 ±0.012 in. (0.62 ± 0.3 mm)
Ratings
Rated Voltage:
Capacitance Range:
Capacitance Tolerance:
D.F. (20°C, 1 kHz):
16 Vdc (12 Vac)
0.12 to 0.47 µF
± 5% (J)
≤
1%
Operating Temperature Range:
Dielectric Withstand Voltage:
Insulation Resistance (20°C,10 Vdc, 60 Seconds);
-55 to +105°C
28 Vdc for 5 seconds
Max. capacitor surface temperature: 240°C
Capacitance (µF)
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
CDE P.N.
OBSOLETE
L ±.008 (±0.2)
[in.(mm)]
0.189
0.189
0.189
0.189
0.236
0.236
0.236
0.236
W ±.012 (±0.3)
[in.(mm)]
(4.8)
(4.8)
(4.8)
(4.8)
(6.0)
(6.0)
(6.0)
(6.0)
0.130
0.130
0.130
0.130
0.161
0.161
0.161
0.161
(3.3)
(3.3)
(3.3)
(3.3)
(4.1)
(4.1)
(4.1)
(4.1)
For C
≤
0.33 µF:I.R.
≥
3000 MegΩ
For C > 0.33 µF:I.R. = 1000 MegW•µF Min.
T ±.008 (±0.2)
[in.(mm)]
0.055
0.079
0.079
0.094
0.071
0.079
0.094
0.110
(1.4)
(2.0)
(2.0)
(2.4)
(1.8)
(2.0)
(2.4)
(2.8)
FCN1913C124J-E1
FCN1913C154J-E2
FCN1913C184J-E2
FCN1913C224J-E4
FCN2416C274J-D1
FCN2416C334J-D2
FCN2416C394J-D3
FCN2416C474J-D4
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.
cde.com
Type FCN Surface Mount Film Capacitors
Rated Voltage:
Capacitance Range:
Capacitance Tolerance:
D.F. (20°C, 1 kHz):
50 Vdc (40 Vac)
Operating Temperature Range:
-55 to +105°C
87.5 Vdc for 5 seconds
0.056 to 0.22 µF Dielectric Withstand Voltage:
± 5% (J)
≤
1%
Insulation Resistance (20°C, 50 Vdc, 60 Seconds);
Max. capacitor surface temperature: 240°C
Capacitance (µF)
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
CDE P.N.
OBSOLETE
I.R.
≥
3000 MegΩ
L ±.008 (±0.2)
[in.(mm)]
0.189
0.189
0.189
0.189
0.236
0.236
0.236
0.236
W ±.012 (±0.3)
[in.(mm)]
0.130
0.130
0.130
0.130
0.161
0.161
0.161
0.161
(4.8)
(4.8)
(4.8)
(4.8)
(6.0)
(6.0)
(6.0)
(6.0)
(3.3)
(3.3)
(3.3)
(3.3)
(4.1)
(4.1)
(4.1)
(4.1)
T ±.008 (±0.2)
[in.(mm)]
0.079
0.079
0.094
0.110
0.071
0.079
0.094
0.110
(2.0)
(2.0)
(2.4)
(2.8)
(1.8)
(2.0)
(2.4)
(2.8)
FCN1913H563J-E2
FCN1913H683J-E2
FCN1913H823J-E4
FCN1913H104J-E3
FCN2416H124J-D1
FCN2416H154J-D2
FCN2416H184J-D3
FCN2416H224J-D4
Rated Voltage:
Capacitance Range:
Capacitance Tolerance:
D.F. (20°C, 1 kHz):
100 Vdc (63 Vac)
0.001 to 0.010 µF
± 5% (J)
≤ 1%
Operating Temperature Range:
Dielectric Withstand Voltage:
-55 to +105°C
175 Vdc for 5 seconds
Insulation Resistance (20°C, 100 Vdc, 60 Seconds);
I.R. ≥ 3000 MegΩ
Max. capacitor surface temperature: 240°C
L ±.008 (±0.2)
[in.(mm)]
0.126
0.126
0.126
0.126
0.126
0.126
0.126
0.126
0.126
0.126
0.126
0.126
0.126
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
(3.2)
W ±.008 (±0.2)
[in.(mm)]
0.063
0.063
0.063
0.063
0.063
0.063
0.063
0.063
0.063
0.098
0.098
0.098
0.098
(1.6)
(1.6)
(1.6)
(1.6)
(1.6)
(1.6)
(1.6)
(1.6)
(1.6)
(2.5)
(2.5)
(2.5)
(2.5)
T ±.008 (±0.2)
[in.(mm)]
0.043
0.043
0.043
0.043
0.043
0.043
0.059
0.059
0.059
0.059
0.059
0.083
0.083
(1.1)
(1.1)
(1.1)
(1.1)
(1.1)
(1.1)
(1.5)
(1.5)
(1.5)
(1.5)
(1.5)
(2.1)
(2.1)
Capacitance (µF)
0.001
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.01
CDE P.N.
FCN1206A102J-H2
FCN1206A122J-H2
FCN1206A152J-H2
FCN1206A182J-H2
FCN1206A222J-H2
FCN1206A272J-H2
FCN1206A332J-H3
FCN1206A392J-H3
FCN1206A472J-H3
FCN1210A562J-G2
FCN1210A682J-G2
FCN1210A822J-G3
FCN1210A103J-G3
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.
cde.com
