Application
Dialight Optopipe
®
panel mount provide an excellent
solution for products that contain a PCB that is parallel to the
front panel in need of indication. The UL94-V0 water clear
polycarbonate light pipes are secured to the front panel
with a press fit that is easy to install. Dialight Optopipe
®
solutions are a cost effective way of bringing indication to
your front panel.

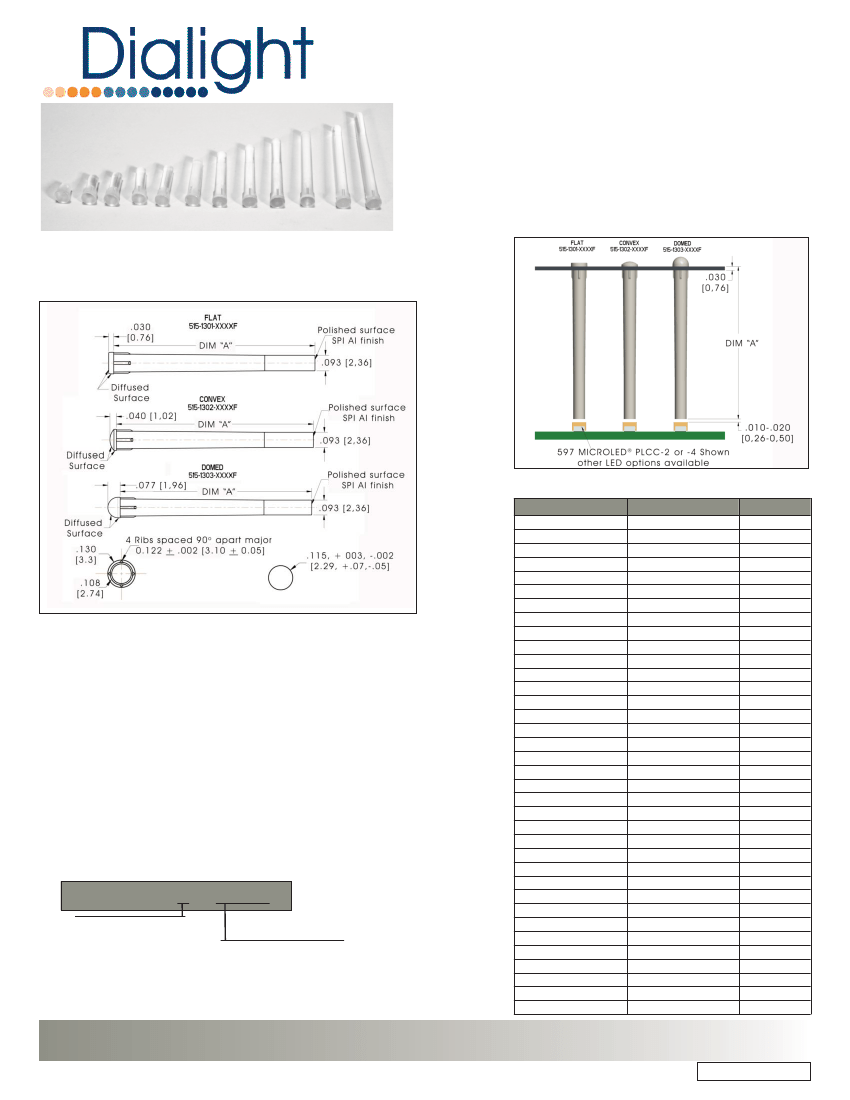

Optopipe
®
Panel Mount Light Pipes
.122’’ Diameter with .115’’ (2.92mm) Mounting Hole
Order Codes
Part Number
515-1301-0125F
515-1301-0250F
515-1301-0300F
515-1301-0350F
515-1301-0400F
515-1301-0500F
515-1301-0600F
515-1301-0700F
515-1301-0800F
515-1301-0900F
515-1301-1000F
515-1301-1200F
515-1302-0125F
515-1302-0215F
515-1302-0250F
515-1302-0350F
515-1302-0375F
515-1302-0500F
515-1302-0600F
515-1302-0700F
515-1302-0800F
515-1302-0900F
515-1302-1000F
515-1302-1200F
515-1303-0125F
515-1303-0250F
515-1303-0300F
515-1303-0350F
515-1303-0400F
515-1303-0500F
515-1303-0600F
515-1303-0700F
515-1303-0800F
515-1303-0900F
515-1303-1000F
515-1303-1200F
Length inches (mm)
0.125 [3,20]
0.250 [6,35]
0.300 [7,62]
0.350 [8,89]
0.400 [10,16]
0.500 [12,70]
0.600 [15,24]
0.700 [17,78]
0.800 [20,32]
0.900 [22,86]
1.000 [25,40]
1.200 [30,48]
0.125 [3,20]
0.215 [5,46]
0.250 [6,35]
0.350 [8,89]
0.375 [9,53]
0.500 [12,70]
0.600 [15,24]
0.700 [17,78]
0.800 [20,32]
0.900 [22,86]
1.000 [25,40]
1.200 [30,48]
0.125 [3,20]
0.250 [6,35]
0.300 [7,62]
0.350 [8,89]
0.400 [10,16]
0.500 [12,70]
0.600 [15,24]
0.700 [17,78]
0.800 [20,32]
0.900 [22,86]
1.000 [25,40]
1.200 [30,48]
Lens Shape
Flat
Flat
Flat
Flat
Flat
Flat
Flat
Flat
Flat
Flat
Flat
Flat
Convex
Convex
Convex
Convex
Convex
Convex
Convex
Convex
Convex
Convex
Convex
Convex
Domed
Domed
Domed
Domed
Domed
Domed
Domed
Domed
Domed
Domed
Domed
Domed
MTG, Hole
Dimensions in inches [mm]
Features & Benefits:
•
Lengths varying from .125” – 1.200”
•
Three lens styles for optimal viewing angles: Flat, Convex and Domed
•
Designed for both single and multiple colored LEDs
•
Press fit mount into .115” +.003/-.002 panel mount hole
•
Panel thickness .030” minimum
•
Light is produced by surface mount LEDs through photonic emission, not
as a by product of radiating heat source. Low voltage and minimal
power consumption.
•
Precision molded from ROHS compliant UL94-V0, water clear
polycarbonate with oxygen index of 35%
•
Available in diffused textured lens only
•
Optimally designed to be used with Dialight surface mount LEDs
•
See Dialight Surface Mount Selector Guide for LED options
•
Recommend PLCC-2 and PLCC-4, surface mount LED’s
Part number: 597-xxxx-207F
515 - 1 30X - X X X XF
Lens Shape
1 - Flat
2 - Convex
3 - Domed
Length inches (mm) see dim “A”
