Bourns offers Transient Voltage Suppressor Diodes for surge and ESD protection applications, in compact chip package DO-214AA (SMB)
size format. The Transient Voltage Suppressor series offers a choice of Working Peak Reverse Voltage from 12 V up to 58 V. Typical fast
response times are less than 1.0 picosecond from 0 V to Breakdown Voltage.
Bourns
®
Chip Diodes conform to JEDEC standards, are easy to handle with standard pick and place equipment and the flat configuration
minimizes roll away.
Electrical Characteristics (@ T
A
= 25 °C Unless Otherwise Noted)
Parameter
Peak Forward Surge Current
8.3 ms Single Half Sine Wave Superimposed on Rated Load
(JEDEC Method)
(Note 3)
Operating Temperature Range
Storage Temperature Range
1.
2.
3.
Minimum Peak Pulse Power Dissipation (TP = 1 ms)
(Note 1,2)
Symbol
P
PK
I
FSM
T
J
Value
600
100
-55 to +150
-55 to +150
Unit
Watts
Amps
°C
°C
T
STG
Non-repetitive current pulse, per Pulse Waveform graph and derated above TA = 25 °C per Pulse Derating Curve.
Mounted on 5.0 mm
2
(0.03 mm thick) copper pads to each terminal.
8.3 ms Single Half-Sine Wave duty cycle = 4 pulses maximum per minute (unidirectional units only).
Asia-Pacific:
Tel: +886-2 2562-4117 • Email: asiacus@bourns.com
EMEA:
Tel: +36 88 520 390 • Email: eurocus@bourns.com
The Americas:
Tel: +1-951 781-5500 • Email: americus@bourns.com
www.bourns.com
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
**”Q” part number suffix indicates AEC-Q101 compliance.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
2. Suffix ‘CA’ denotes a 5 % tolerance bidirectional device.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
SMBJ-Q Transient Voltage Suppressor Diode Series

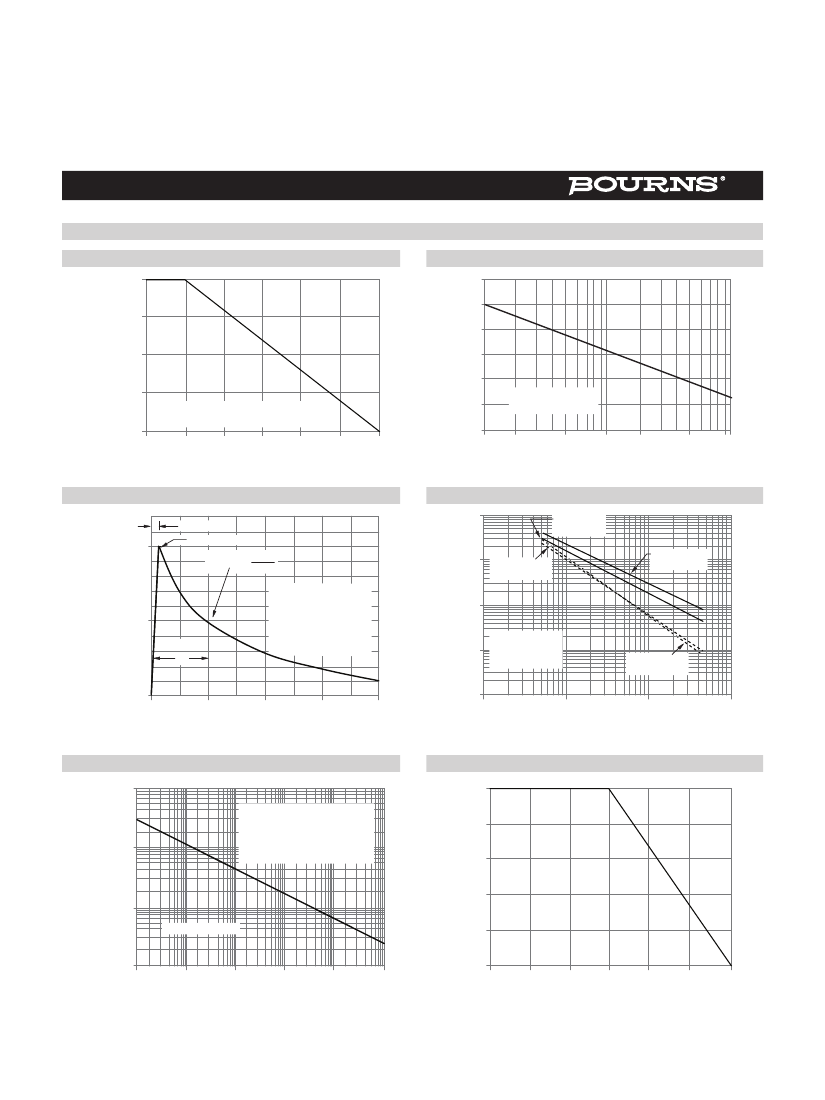

Performance Graphs
Peak Pulse Power Derating Curve
Peak Pulse Power Derating in Percent of
Peak Power or Current
100
Maximum Non-Repetitive Surge Current
Peak Forward Surge Current (Amps)
120
100
80
60
40
20
0
125
150
Pulse Width 8.3 ms
Single Half Sine-Wave
1
2
5
10
20
50
100
75
50
25
10 x 1000 Waveform as Defined
by R.E.A.
0
0
25
50
75
100
Ambient Temperature ( °C)
Number of Cycles at 60 Hz
Pulse Waveform
TR=10 µs
IRSM
2
Pulse width (TP)
is defined as that point
where the peak current
decays to 50 % of IPSM.
TA=25 °C
TP
10 x 1000 waveform
as defined by R.E.A.
Peak value (IRSM)
Typical Junction Capacitance
10000
Bidirectional
v-0v
Unidirectional
@ VR
Unidirectional
v-0v
CJ - Junction Capacitance (pF)
100
IP, Peak Pulse Current (%)
Half value=
1000
100
TJ = 25 °C
f = 1.0 MHz
Vsig = 50 mVp-p
50
10
Bidirectional
@ VR
0
1
0
1.0
2.0
T, Time (ms)
3.0
4.0
1
10
100
1000
VBR - Reverse Breakdown Voltage (V)
Pulse Rating Curve
100
Steady State Power Derating Curve
5.0
Steady State Power Dissipation (W)
10 ms
TA = 25 °C
4.0
3.0
PP, Peak Power (KW)
10
Non-repetitive
Pulse Waveform
Shown in Pulse Waveform Graph
2.0
1.0
1.0
5.0 mm Lead Areas
0.1
0.1 µs
1.0 µs
10 µs
100 µs
1.0 ms
0.0
0
25
50
75
100
125
150
TP, Pulse Width
TL - Lead Temperature (°C)
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
SMBJ-Q Transient Voltage Suppressor Diode Series
Product Dimensions
A
A
Recommended Footprint
A
A
B
C
B
B
B
C
C
G
D
Dimension
A (Max.)
H
FC
E
D
B (Min.)
C (Min.)
Dimension
A
B
C
D
E
F
G
H
DIMENSIONS:
SMB
MM
(DO-214AA)
4.06
(INCHES)
- 4.57
(0.160 - 0.180)
3.30 - 3.94
E
(0.130 - 0.155)
1.95 - 2.20
(0.077 - 0.087)
MM
DIMENSIONS:
0.31
0.15 -
(INCHES)
(0.006 - 0.112)
5.21 - 5.59
(0.205 - 0.220)
0.203
MAX.
(0.008)
2.13 - 2.44
(0.080 - 0.103)
0.76 - 1.52
(0.030 - 0.060)
MM
(INCHES)
F
SMB (DO-214AA)
2.69
(0.106)
2.10
(0.083)
1.27
(0.050)
MM
(INCHES)
DIMENSIONS:
Physical Specifications
Case ...........................................Molded plastic per UL Class 94V-0
Polarity....................... Cathode band indicates unidirectional device
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
CDDFN5-0504N - TVS/Steering Diode Array
SMBJ-Q Transient Voltage Suppressor Diode Series

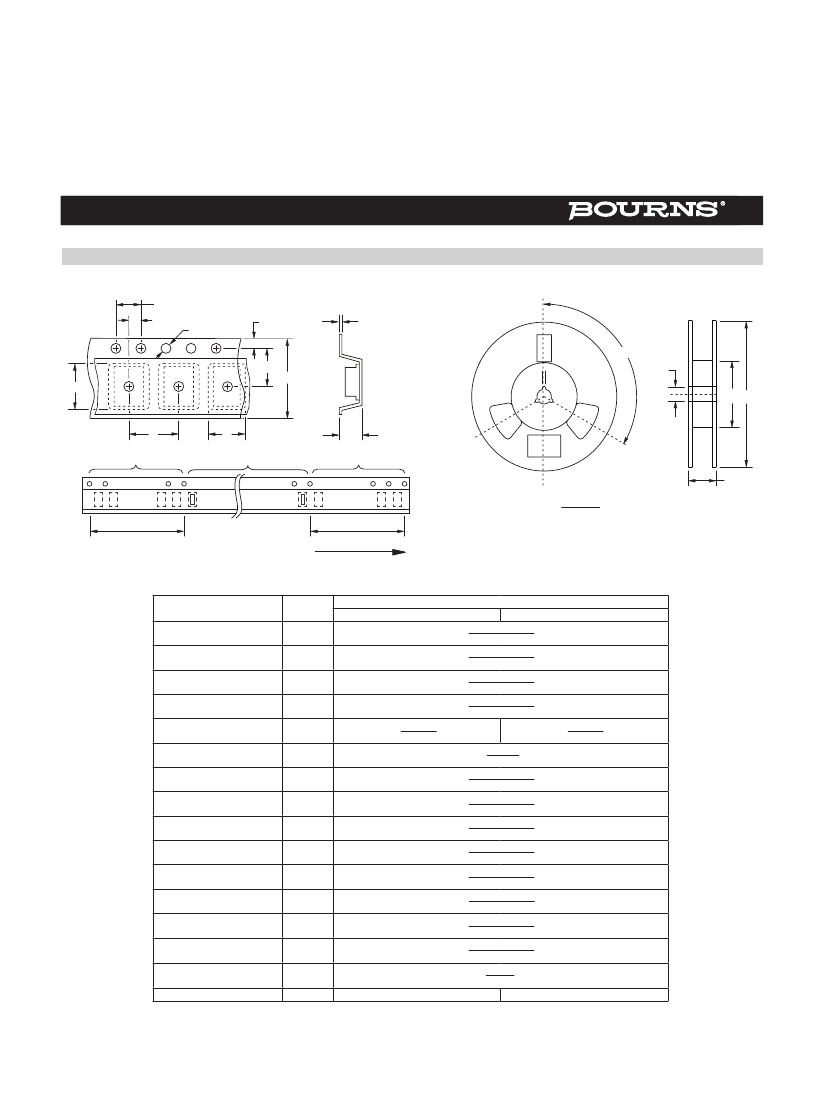

Packaging Information
The product will be dispensed in tape and reel format (see diagram below).
P
0
P
1
d
Index Hole
E
T
120 °
F
W
D2
D1 D
B
P
Trailer
A
Device
C
Leader
End
.......
.......
10 pitches (min.)
.......
.......
.......
.......
.......
.......
10 pitches (min.)
Start
W1
DIMENSIONS:
MM
(INCHES)
Direction of Feed
Devices are packed in accordance with EIA 481
standard specifications shown here.
SMB (DO-214AA)
3.67 ± 0.20
(0.144 ± 0.008)
5.60 ± 0.20
(0.220 ± 0.008)
2.57 ± 0.20
(0.101 ± 0.008)
1.50 ± 0.10
(0.059 ± 0.004)
50.0
MIN.
(1.969)
13.0 ± 0.20
(0.512 ± 0.008)
1.75 ± 0.10
(0.069 ± 0.004)
5.50 ± 0.05
(0.217 ± 0.002)
8.00 ± 0.10
(0.315 ± 0.004)
4.00 ± 0.10
(0.157 ± 0.004)
2.00 ± 0.05
(0.079 ± 0.002)
0.30 ± 0.10
(0.012 ± 0.004)
12.00 ± 0.30
(0.472 ± 0.012)
18.4
MAX.
(0.724)
Item
Carrier Width
Carrier Length
Carrier Depth
Sprocket Hole
Reel Outside Diameter
Reel Inner Diameter
Feed Hole Diameter
Sprocket Hole Position
Punch Hole Position
Punch Hole Pitch
Sprocket Hole Pitch
Embossment Center
Overall Tape Thickness
Tape Width
Reel Width
Quantity per Reel
Symbol
A
B
C
d
D
D1
D2
E
F
P
P0
P1
T
W
W1
--
7-Inch Reel
13-Inch Reel
178
(7.008)
330
(12.992)
500
3,000
REV. 02/18
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
