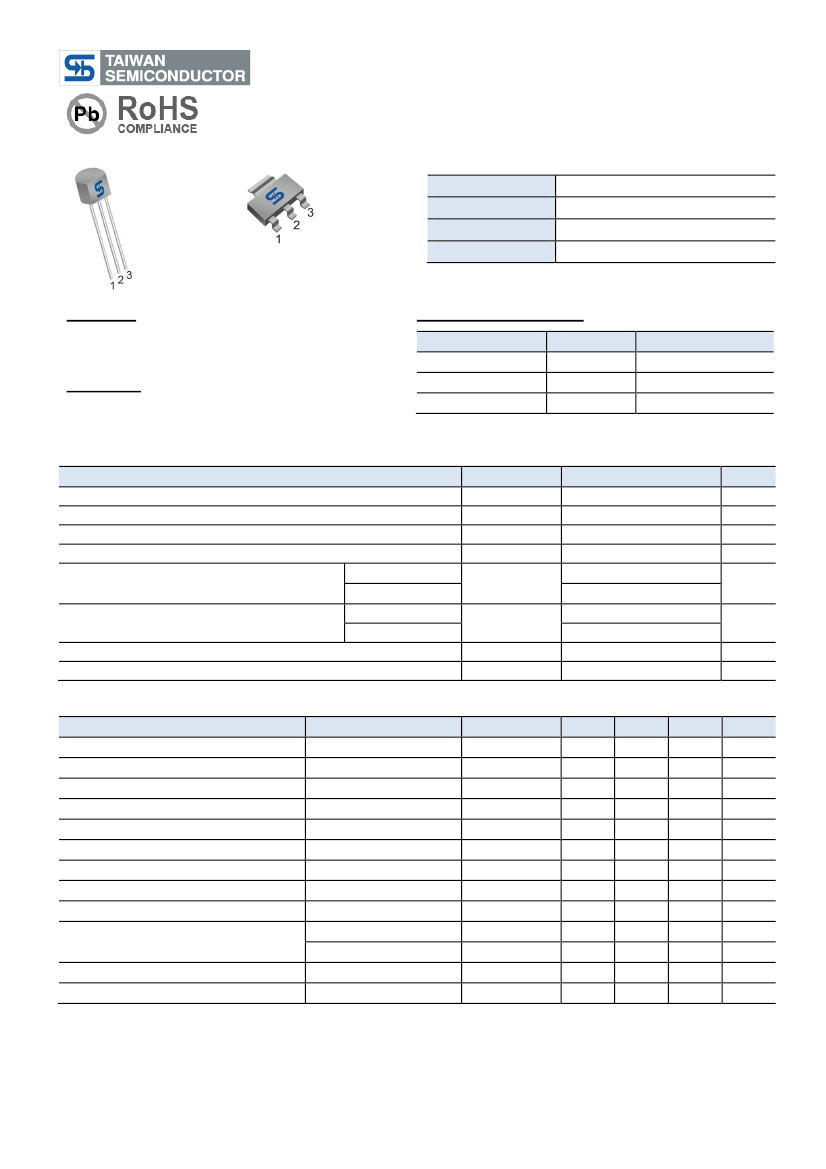

TSC966
NPN Silicon Planar High Voltage Transistor
TO-92
Pin Definition:
SOT-223
1. Emitter
2. Collector
3. Base
Pin Definition:
1. Base
2. Collector
3. Emitter
PRODUCT SUMMARY
BV
CBO
BV
CEO
I
C
V
CE(SAT)
600V
400V
300mA
0.5V @ I
C
/ I
B
= 50mA / 5mA
Features
●
●
High BVceo, BVcbo
High current gain
Ordering Information
Part No.
TSC966CT B0G
TSC966CT A3G
TSC966CW RPG
Package
TO-92
TO-92
SOT-223
Packing
1,000pcs / Bulk
2,000pcs / Ammo
2,500pcs / 13” Reel
●
Epitaxial Planar Type
Absolute Maximum Rating
(T
A
=25
o
C unless otherwise noted)
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
TS
C9
No 66
t R CT
eco B0
mm G ,
A3
en
de G
d
Symbol
V
CBO
V
CES
V
CEO
V
EBO
I
C
o
Structure
Note: “G” denote for Halogen Free Product
Limit
Unit
V
V
V
V
A
W
o
o
Total Power Dissipation @ T
A
=25 C
DC
Pulse
TO-92
SOT-223
P
tot
Operating Junction Temperature
Operating Junction and Storage Temperature Range
T
J
T
STG
600
600
400
7
0.3
1
0.9
1
+150
- 55 to +150
C
C
Electrical Specifications
(Ta = 25
o
C unless otherwise noted)
Parameter
Conditions
Collector-Base Breakdown Voltage
Collector-Emitter Saturation Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector-Base Cutoff Current
Collector-Emitter Cutoff Current
Emitter-Base Cutoff Current
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
DC Current Transfer Ratio
Transition Frequency
Output Capacitance
I
C
= 50uA
I
C
= 100uA, V
BE
= 0
I
C
= 1mA
I
E
= 50uA
V
CB
= 600V
V
CE
= 400V
V
EB
= 7V
I
C
= 50mA, I
B
= 5mA
I
C
= 50mA, I
B
= 5mA
V
CE
= 5V, I
C
= 1mA
V
CE
= 5V, I
C
= 20mA
V
CE
= 10V, I
E
= 20mA
V
CB
= 20V, f=1MHz
Symbol
BV
CBO
BV
CES
BV
CEO
BV
EBO
I
CBO
I
CEO
I
EBO
V
CE(SAT)
V
BE(SAT)
h
FE
1
h
FE
2
f
T
Cob
Min
600
600
400
7
--
--
--
--
--
100
90
50
--
Typ
--
--
--
--
--
--
--
--
--
--
--
--
--
Max
--
--
--
--
0.5
1
1.5
0.5
1
--
300
--
7
Unit
V
V
V
V
uA
uA
uA
V
V
MHz
pF
Document Number: DS_P0000232
1
Version: E15
TSC966
NPN Silicon Planar High Voltage Transistor

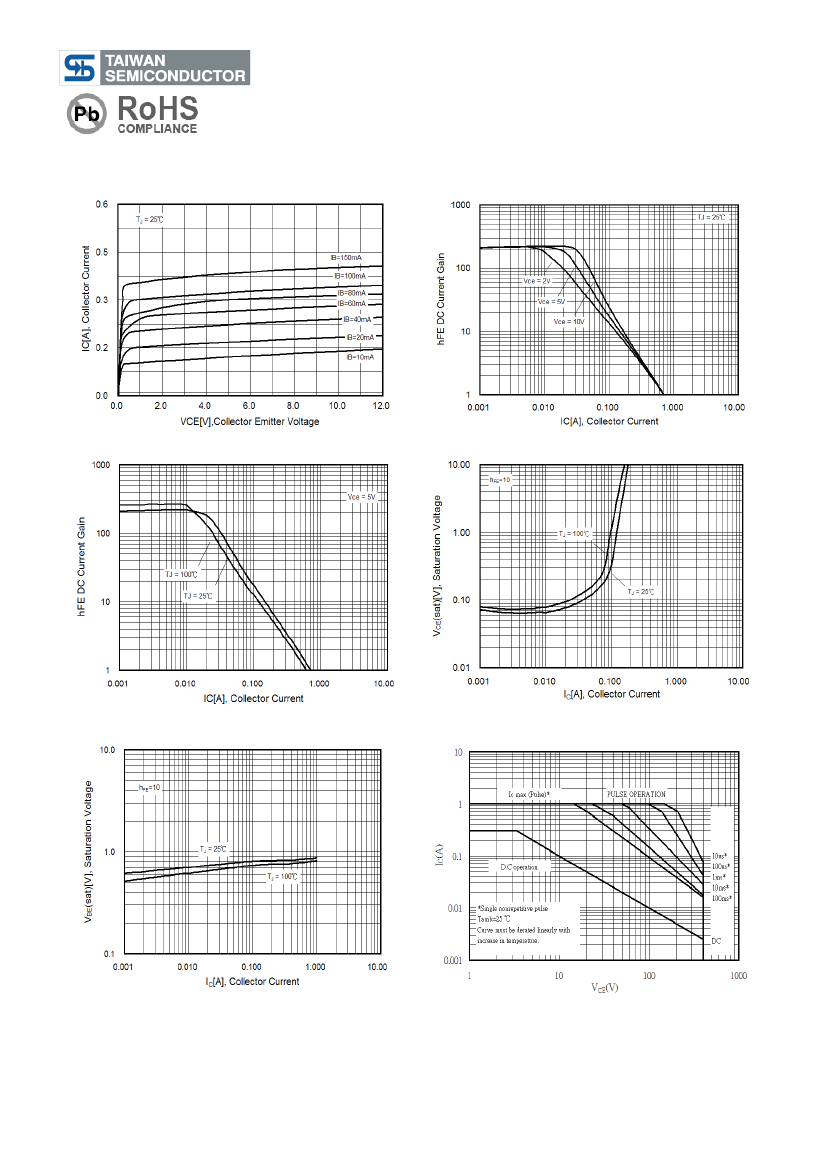

Electrical Characteristics Curve
(Ta = 25
o
C, unless otherwise noted)
Figure 1. Static Characteristics
Figure 2. DC Current Gain
Document Number: DS_P0000232
TS
C9
No 66
t R CT
eco B0
mm G ,
A3
en
de G
d
Figure 3. VCE(SAT) v.s. IC
Figure 5. VBE(on) vs Ic
2
Figure 4. VBE(sat) vs Ic
Figure 6. Safety Operation Area
Version: E15
TSC966
NPN Silicon Planar High Voltage Transistor
TO-92 Mechanical Drawing
DIM
A
B
C
D
E
F
G
H
Marking Diagram
Document Number: DS_P0000232
TS
C9
No 66
t R CT
eco B0
mm G ,
A3
en
de G
d
Y
= Year Code
M
= Month Code for Halogen Free Product
O
=Jan
P
=Feb
Q
=Mar
R
=Apr
S
=May
T
=Jun
U
=Jul
V
=Aug
W
=Sep
X
=Oct
Y
=Nov
Z
=Dec
L
= Lot Code
3
TO-92 DIMENSION
MILLIMETERS
INCHES
MIN
MAX
MIN
MAX
4.30
4.70
0.169
0.185
4.30
4.70
0.169
0.185
14.30(typ)
0.563(typ)
0.43
0.49
0.017
0.019
1.18
1.28
0.046
0.050
3.30
3.70
0.130
0.146
1.27
1.31
0.05
0.051
0.37
0.43
0.015
0.017
Version: E15
TSC966
NPN Silicon Planar High Voltage Transistor

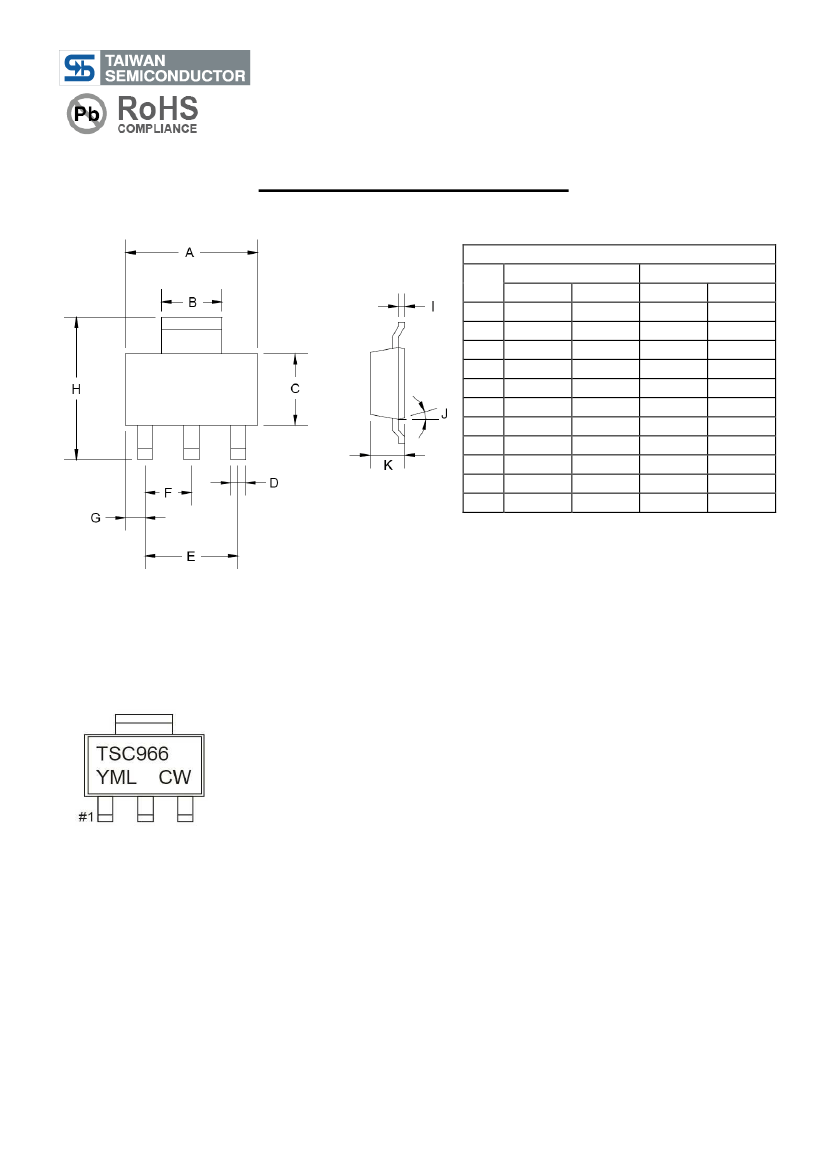

SOT-223 Mechanical Drawing
DIM
A
B
C
D
E
F
G
H
I
J
K
Marking Diagram
Document Number: DS_P0000232
TS
C9
No 66
t R CT
eco B0
mm G ,
A3
en
de G
d
Y
= Year Code
M
= Month Code for Halogen Free Product
O
=Jan
P
=Feb
Q
=Mar
R
=Apr
V
=Aug
S
=May
T
=Jun
U
=Jul
W
=Sep
X
=Oct
Y
=Nov
Z
=Dec
L
= Lot Code
4
SOT-223 DIMENSION
MILLIMETERS
INCHES
MIN
MAX
MIN
MAX
6.350
6.850
0.250
0.270
2.900
3.100
0.114
0.122
3.450
3.750
0.136
0.148
0.595
0.635
0.023
0.025
4.550
4.650
0.179
0.183
2.250
2.350
0.088
0.093
0.835
1.035
0.032
0.041
6.700
7.300
0.263
0.287
0.250
0.355
0.010
0.014
10°
16°
10°
16°
1.550
1.800
0.061
0.071
Version: E15
TSC966
NPN Silicon Planar High Voltage Transistor
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_P0000232
5
Version: E15
TS
C9
No 66
t R CT
