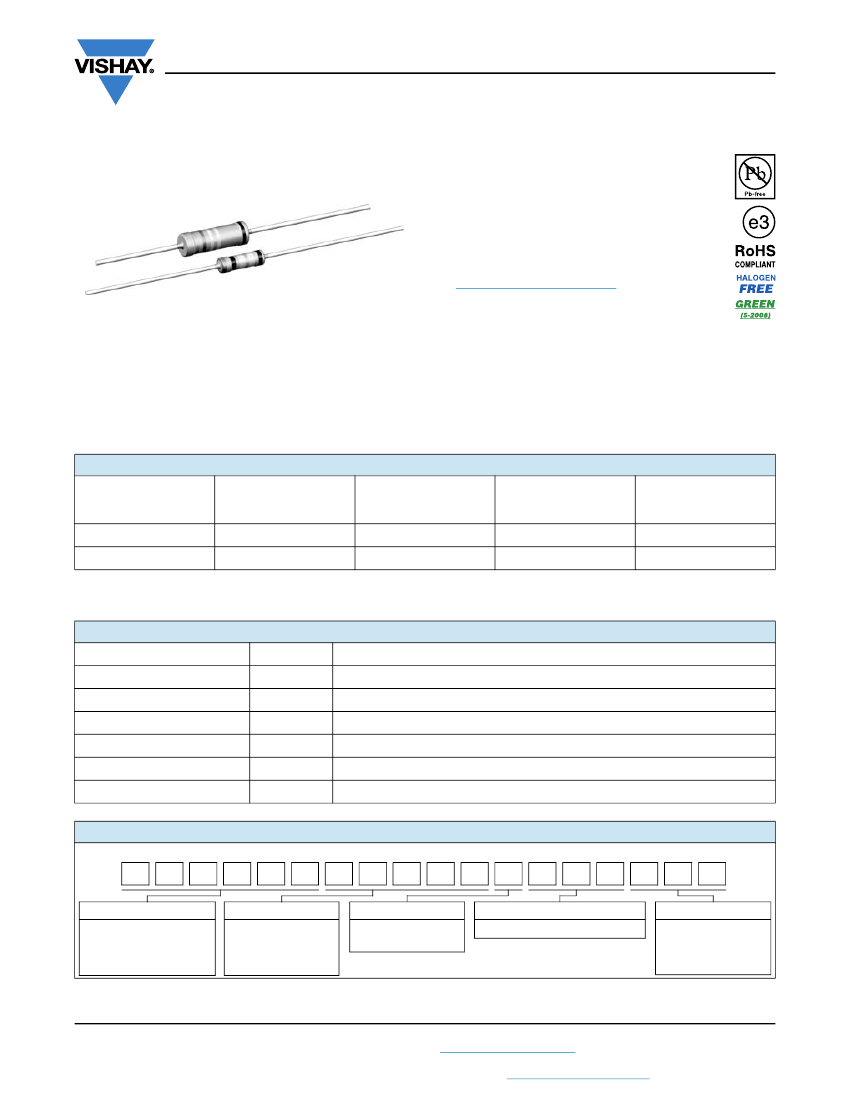

CA High Volume
www.vishay.com
Vishay Dale
Wirewound Resistors, Commercial Power, Axial Lead
FEATURES
• High performance for low cost
• Auto insertable
• High temperature coating for environmental
protection
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
Kitchen appliances:
• Percolators, blenders, mixers, ranges, toasters, deep
fryers
Entertainment and consumer devices:
• Radios, televisions
• Computers and power supplies
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL MODEL
CA0001
CA0002
POWER RATING
P
25 °C
W
1.0
2.0
RESISTANCE RANGE
(1)
Ω
0.1 to 1K
0.1 to 1K
TOLERANCE
±%
5, 10
5, 10
WEIGHT
(typical)
g
0.65
0.80
Note
(1)
E24 decade values are available, although others may be available upon request.
TECHNICAL SPECIFICATIONS
PARAMETER
Temperature Coefficient
Short Time Overload
Maximum Working Voltage
Dielectric Withstanding Voltage
Operating Temperature Range
Terminal Strength (minimum)
UNIT
ppm/°C
-
V
V
AC
°C
lb
CA HIGH VOLUME RESISTOR CHARACTERISTICS
± 350
5 x rated power for 5 s
(P x
R)
1/2
350
-65 to +275
10
GLIOBAL PART NUMBER INFORMATION
Global Part Numbering example: CA000150R00JE66
C
A
0
0
0
VALUE
1
5
0
R
0
0
J
E
6
6
SPECIAL
(Dash Number)
(up to 3 digits)
From
1 to 999
as
applicable
GLOBAL MODEL
(See Standard Electrical
Specifications table/
Global Model column
for options)
TOLERANCE
J
= ± 5.0 %
K
= ± 10.0 %
PACKAGING
E66
= Lead (Pb)-free, tape/reel
R
= Decimal
K
= Thousand
R1500
= 0.15
Ω
1K000
= 1000
Ω
Revision: 17-Dec-15
Document Number: 30114
1
For technical questions, contact:
ww2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CA High Volume
www.vishay.com
DIMENSIONS
DIMENSIONS
in inches [millimeters]
LL
Vishay Dale
GLOBAL
MODEL
L
± 0.040
[1.0]
0.354
[9]
0.453
[11.5]
D
± 0.020
[0.5]
0.138
[3.5]
0.177
[4.5]
LD
± 0.002
[0.05]
0.024
[0.6]
0.031
[0.8]
LL
± 0.079
[2.0]
1.024
[26]
1.378
[35]
CA0001
L
D
LD
CA0002
MATERIAL SPECIFICATIONS
Element:
Copper-nickel alloy or nickel-chrome alloy,
depending on resistance value
Core:
Ceramic
Coating:
Special high temperature material
Terminals:
Tin plated copper
End Caps:
Tin plated steel
Part Marking:
E24 color bands
DERATING
RATED POWER IN %
120
100
80
60
40
20
0
- 55
- 25
25
75
125
175
225
275
AMBIENT TEMPERATURE IN °C
PERFORMANCE
TEST
Thermal Shock
Short Time Overload
Dielectric Withstanding
Voltage
Low Temperature Operation
Humidity
Load Life
Terminal Strength
Resistance to Solder Heat
CONDITIONS OF TEST
-55 °C to +275 °C, 5 cycles, 30 min dwell time
5 x rated power for 5 s
350 V
AC
for 1 min
-65 °C, full rated working voltage for 45 min
75 °C, 90 % - 100 % RH, 240 h
1000 h at rated power, +25 °C, 1.5 h “ON”, 0.5 h “OFF”
10 pounds for 30 s; body twisted about axis, 3 x 360° rotations
Terminal immersed 3.5 s in molten solder at 1/8" to 3/16" from body
TEST LIMITS
± (5.0 % + 0.05
Ω) ΔR
± (1.0 % + 0.05
Ω) ΔR
± (2.0 % + 0.05
Ω) ΔR
± (3.0 % + 0.05
Ω) ΔR
± (5.0 % + 0.05
Ω) ΔR
± (5.0 % + 0.05
Ω) ΔR
± (2.0 % + 0.05
Ω) ΔR
± (1.0 % + 0.05
Ω) ΔR
Revision: 17-Dec-15
Document Number: 30114
2
For technical questions, contact:
ww2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
