FX216C-FREQ1-BBD08011000 datasheet, PDF

Datasheet> All Categories > Crystal/resonator> FX216C-FREQ1-BBD08011000

FX216C-FREQ1-BBD08011000: DescriptionParallel - Fundamental Quartz Crystal, 24MHz Min, 29.999MHz Max; CategoryCrystal/resonator; File Size183KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

FX216C-FREQ1-BBD08011000 Overview

Parallel - Fundamental Quartz Crystal, 24MHz Min, 29.999MHz Max

FX216C-FREQ1-BBD08011000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	8 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	29.999 MHz
Minimum operating frequency	24 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L2.0XB1.6XH0.35 (mm)/L0.079XB0.063XH0.014 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au)
Base Number Matches	1

Preview

Download Datasheet

View All

Ceramic SMD Crystal

Model: FX216C Series

Page 1 of 2

RoHS Compliant / Pb Free

Rev. 7/15/2008

http://www.foxonline.com/need_a_sample.htm

FEATURES

• Low Cost

• Fundamental to 54 MHz

• Tape and Reel (1,000 pcs. STD)

• PART NUMBER

Learn More - Internet Required

Part Number

617C-Frequency-xxxxx

Model Number

FX216C

Frequency Range (MHz)

24.000 ~ 54.000

2 .0 ± 0 .1

Top

View

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency Range

Frequency Tolerance @ 25ºC

Frequency Stability, ref @ 25ºC

Over Operating Temp Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance

(Co)

Load Capacitance

)

Drive Level

Aging per year

Maximum Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish

1 .6 ± 0 .1

MAX

(unless otherwise noted)

24.000 ~ 54.000 MHz

±50 PPM

-10ºC ~ +60ºC

-40ºC ~ +85ºC

5.0 pF

8 pF ~ Series

(Customer Specified)

10uW typ.

100uW

±5 PPM

260ºC / 10 Seconds

0 .35±0.05

0 .64

Bottom

View

0 .47

0.5

0 .60

0 .08

Other tolerances, stabilities & operating temperature ranges available.

Frequency Range

(MHz)

24.000 ~ 29.999

29.999+ ~ 35.999

35.999+ ~ 54.000

Operating Mode

Fundamental

Max ESR

Ω

100

Recommended

Solder Pad Layout

0 .95

0.3

0 .85

0.5

All dimensions are in millimeters.

Pin Connections

#3 Crystal*

#4 Lid (GND)

Note: Dimensional drawing is for reference to critical specifications defined by size measure-

ments. Certain non-critical visual attributes, such as side castellations, etc. may vary.

The above specifications, having been carefully prepared and checked, is believed to be ac-

curate at the time of publication; however, no responsibility is assumed by Fox Electronics for

inaccuracies

#1 Crystal

#2 NC

*For proper operation, Pin 4 must be connected to GND.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Taiwan

Tel: +886.2.22073427 Fax +886.2.22073486

Japan

Tel: +81.3.3374.2079 Fax: +81.3.3374.5221

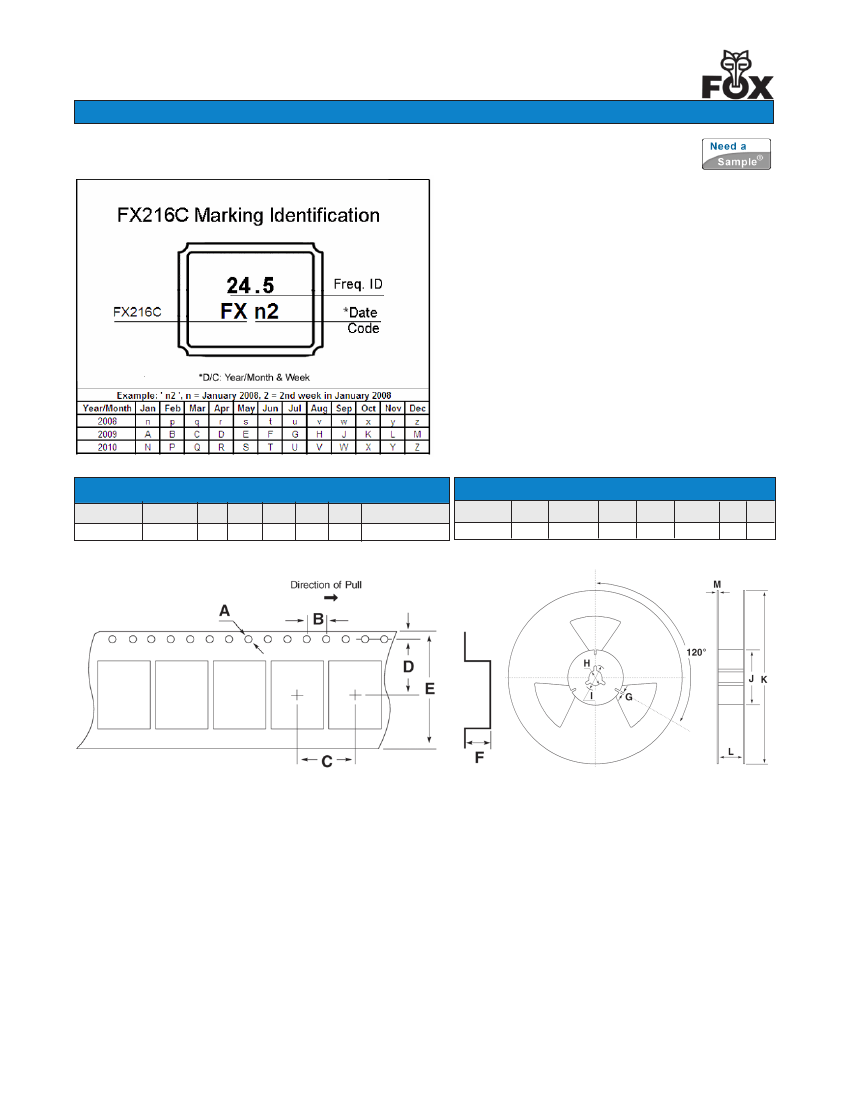

FX216C-FREQ1-BBD08011000 Related Products

	FX216C-FREQ1-BBD08011000	617C-FREQ3-BBD00011000	FX216C-FREQ2-BBD08011000	617C-FREQ1-BBD08011000	617C-FREQ2-BBD08011000	617C-FREQ1-BBD00011000	617C-FREQ3-BBD08011000	617C-FREQ2-BBD00011000	FX216C-FREQ3-BBD08011000	FX216C-FREQ2-BBD00011000
Description	Parallel - Fundamental Quartz Crystal, 24MHz Min, 29.999MHz Max	Series - Fundamental Quartz Crystal, 35.999MHz Min, 54MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 29.999MHz Min, 35.999MHz Max	Parallel - Fundamental Quartz Crystal, 24MHz Min, 29.999MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 29.999MHz Min, 35.999MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Series - Fundamental Quartz Crystal, 24MHz Min, 29.999MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 35.999MHz Min, 54MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Series - Fundamental Quartz Crystal, 29.999MHz Min, 35.999MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	Parallel - Fundamental Quartz Crystal, 35.999MHz Min, 54MHz Max	Parallel - Fundamental Quartz Crystal, 29.999MHz Min, 35.999MHz Max
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]	FOX [Fox Electronics]
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Ageing	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL	SERIES - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	SERIES - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	SERIES - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW	10 µW
frequency stability	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%	0.005%
frequency tolerance	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm	50 ppm
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	29.999 MHz	54 MHz	35.999 MHz	29.999 MHz	35.999 MHz	29.999 MHz	54 MHz	35.999 MHz	54 MHz	35.999 MHz
Minimum operating frequency	24 MHz	35.999 MHz	29.999 MHz	24 MHz	29.999 MHz	24 MHz	35.999 MHz	29.999 MHz	35.999 MHz	29.999 MHz
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
physical size	L2.0XB1.6XH0.35 (mm)/L0.079XB0.063XH0.014 (inch)	L2.0XB1.6XH0.35 (mm)/L0.079XB0.063XH0.014 (inch)	L2.0XB1.6XH0.35 (mm)/L0.079XB0.063XH0.014 (inch)	L2.0XB1.6XH0.35 (mm)/L0.079XB0.063XH0.014 (inch)	L2.0XB1.6XH0.35 (mm)/L0.079XB0.063XH0.014 (inch)	L2.0XB1.6XH0.35 (mm)/L0.079XB0.063XH0.014 (inch)	L2.0XB1.6XH0.35 (mm)/L0.079XB0.063XH0.014 (inch)	L2.0XB1.6XH0.35 (mm)/L0.079XB0.063XH0.014 (inch)	L2.0XB1.6XH0.35 (mm)/L0.079XB0.063XH0.014 (inch)	L2.0XB1.6XH0.35 (mm)/L0.079XB0.063XH0.014 (inch)
Series resistance	100 Ω	60 Ω	80 Ω	100 Ω	80 Ω	100 Ω	60 Ω	80 Ω	60 Ω	80 Ω
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
load capacitance	8 pF	-	8 pF	8 pF	8 pF	-	8 pF	-	8 pF	-
Base Number Matches	1	1	1	1	1	1	1	1	-	-
package instruction	-	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	-	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	-	-
