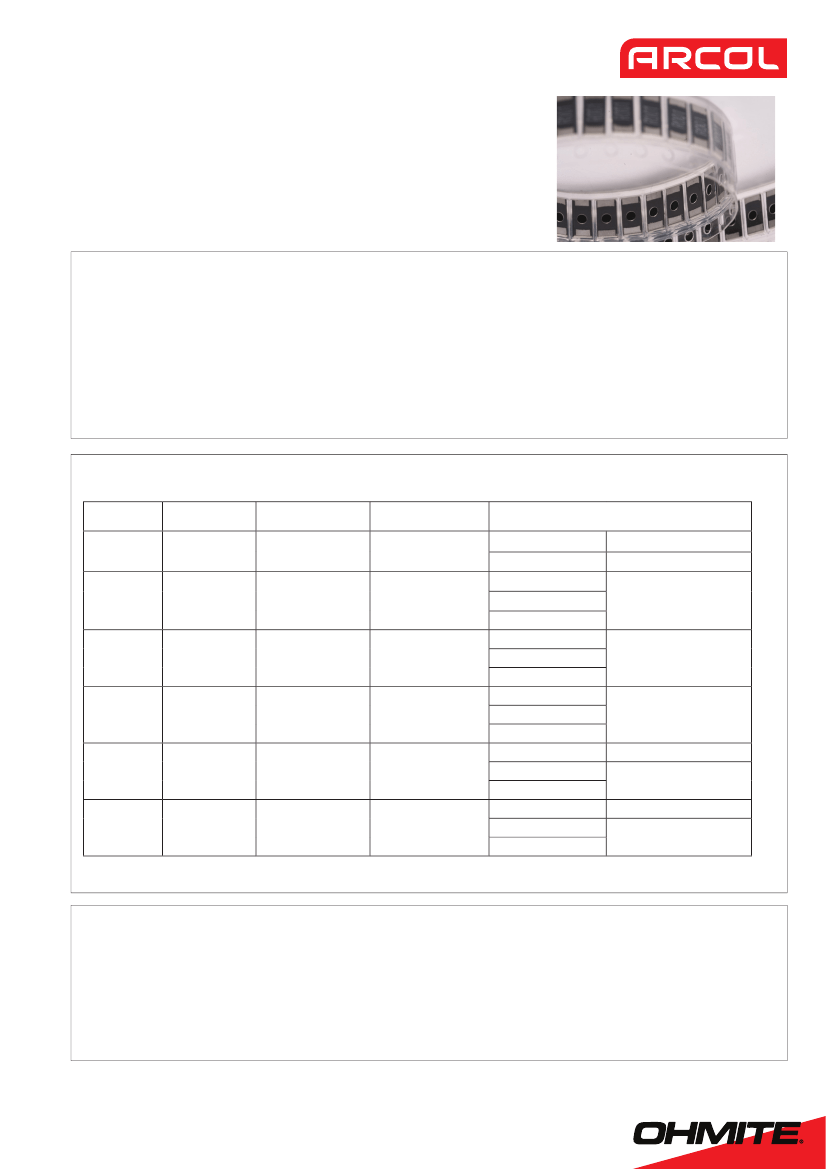

ACPP
Precision Surface Mount
Passivated Resistors
•
Precision thin film technology
•
Extended ohmic range 10R – 1M5
•
Precision to ±0.1% and 15ppm/ºC
•
Passivated range for superior humidity performance
•
RoHS Compliant
Characteristics
Tolerance (Code):
Operating temperature:
Overload:
Thermal shock:
Endurance:
Humidity:
±0.1% (B), ± 0.25% (C), ± 0.5% (D)
-55°C to +155°C
≤±0.2%, ≤±0.1% (ACPP0402), RCWV*2.5 or maximum overload voltage (whichever is lowest) for 2 seconds
≤±0.02%, ≤±0.1% (ACPP0402), -55ºC +150ºC 100 cycles
≤±0.05%, ≤±0.25% (ACPP0402), 70 ± 2ºC, RCWV for 1000 hours with 1.5 hours on and 0.5 hours off
≤±0.05%, ≤±0.5% (ACPP0402), 1000 hours at 40±2ºC, 90-95% R.H with 1.5 hours on and 0.5 hours off
Temperature coefficient: ±15ppm/°C, ±25ppm/°C, ±50ppm/°C
Electrical Specifications
Type
ACPP0402
Wattage
0.0625
Maximum operating
voltage
25V
Maximum overload
voltage
50V
TCR ppm/°C
±15
±25
±15
ACPP0603
0.0625
50V
100V
±25
±50
±15
ACPP0805
0.1
100V
200V
±25
±50
±15
ACPP1206
0.125
150V
300V
±25
±50
±15
ACPP2010
0.25
150V
300V
±25
±50
±15
ACPP2512
0.5
150V
300V
±25
±50
24R9 - 1M
10R - 1M5
24R9 - 1M
10R - 1M5
10R - 1M
10R - 1M
24R9 - 332K
Ohmic value range
49R9 - 12K
24R9 - 24K9
ARCOL UK Limited,
Threemilestone Ind. Estate,
Truro, Cornwall, TR4 9LG, UK.
T +44 (0) 1872 277431
F +44 (0) 1872 222002
E sales@arcolresistors.com
The information contained herein does not form part of a
contract and is subject to change without notice. ARCOL
operate a policy of continual product development, therefore,
specifications may change.
It is the responsibility of the customer to ensure that the
component selected from our range is suitable for the intended
application. If in doubt please ask ARCOL.
For more information and ordering, please consult
www.arcolresistors.com
4/14.39
Page 1 of 2
ACPP
Precision Surface Mount
Passivated Resistors

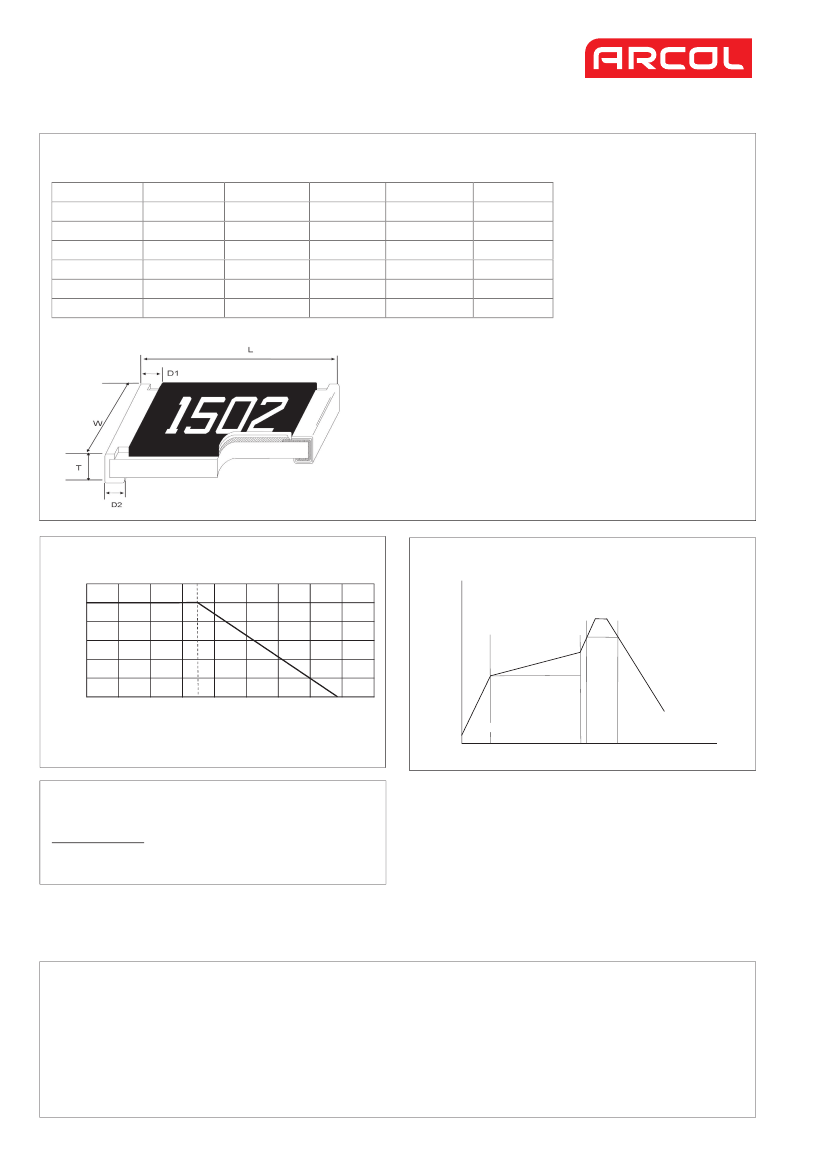

Dimensions (mm)
Series
ACPP0402
ACPP0603
ACPP0805
ACPP1206
ACPP2010
ACPP2512
L
1.00 ± 0.05
1.55 ± 0.10
2.00 ± 0.15
3.05 ± 0.15
4.90 ± 0.15
6.30 ± 0.15
W
0.50 ± 0.05
0.80 ± 0.10
1.25 ± 0.15
1.55 ± 0.15
2.40 ± 0.15
3.10 ± 0.15
T
0.30 ± 0.05
0.45 ± 0.10
0.55 ± 0.10
0.55 ± 0.10
0.55 ± 0.10
0.55 ± 0.10
D1
0.20 ± 0.10
0.30 ± 0.20
0.30 ± 0.20
0.42 ± 0.20
0.60 ± 0.30
0.60 ± 0.30
D2
0.20 ± 0.10
0.30 ± 0.20
0.40 ± 0.20
0.35 ± 0.20
0.50 ± 0.20
0.50 ± 0.20
Derating Curve
100
Power Rated %
80
60
40
20
0
0
20
40
60
80
100
120
140
160
Soldering Curve
°C
Ramp-up
Pre-heating
Reflow
Peak 265°C max
260° for 10 sec
Cooling
250
200
150
180°C max, 120 sec max
Keep at
220°C
max, 60
sec max
Ramp-down 6°C/sec max
100
Ambient Temperature (°C)
50
0
Ramp-up 3°C/sec max
50
100
150
200
250
300
Sec
Ordering Procedure
Standard Resistor: Series, Resistance Value, Tolerance, TCR
.i.e: ACPP0603 100K B 15PPM
ARCOL UK Limited,
Threemilestone Ind. Estate,
Truro, Cornwall, TR4 9LG, UK.
T +44 (0) 1872 277431
F +44 (0) 1872 222002
E sales@arcolresistors.com
The information contained herein does not form part of a
contract and is subject to change without notice. ARCOL
operate a policy of continual product development, therefore,
specifications may change.
It is the responsibility of the customer to ensure that the
component selected from our range is suitable for the intended
application. If in doubt please ask ARCOL.
Page 2 of 2
4/14.39
www.arcolresistors.com
