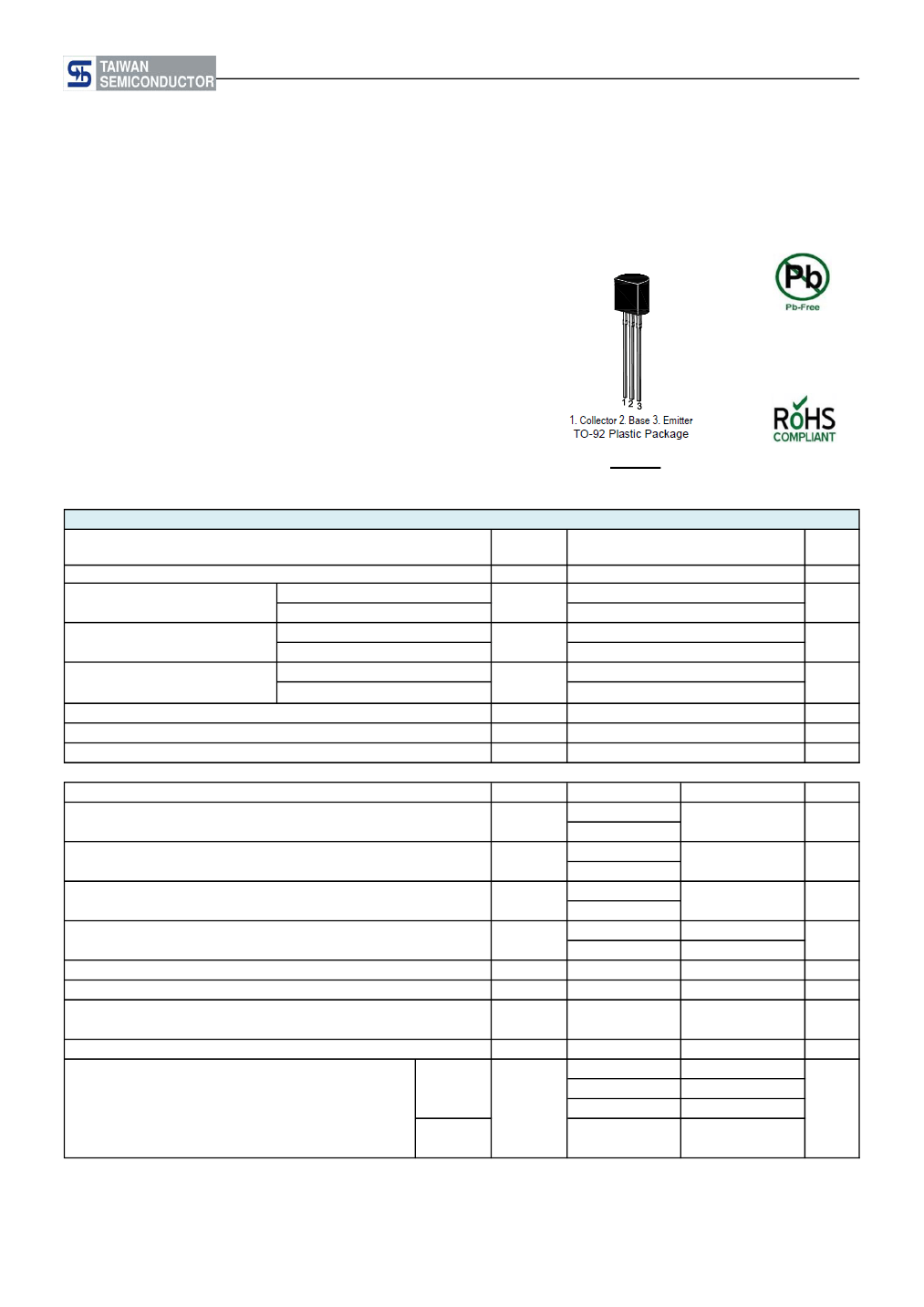

BC337-16/25/40 thru BC338-16/25/40
Taiwan Semiconductor
Small Signal Product
NPN Transistor
FEATURES
- For switching and AF amplifier applications
- These types are subdivided into three groups -16, -25 and -40, according to their current gain
- Moisture sensitivity level 1
- Driver transistor
- Pb free and RoHS complian
- Green compound (Halogen free) with suffix "G" on
packing code and prefix "G" on date code
MECHANICAL DATA
- Case: TO-92 small outline plastic package
- Terminal: Matte tin plated, lead free,
solderable per MIL-STD-202, Method 208 guaranteed
- High temperature soldering guaranteed: 260°C/10s
- Weight: 190 mg (approximately)
TO-92
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Total Power dissipation
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Peak Collector Current
Junction and Storage Temperature Range
PARAMETER
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Base Cutoff Current
Collector Emitter Saturation Voltage
Base Emitter On Voltage
Transition Frequency
Output Capacitance
BC337
BC338
BC337
BC338
BC337
BC338
BC337
BC338
I
C
= 100μA
I
C
= 2mA
I
E
= 100μA
V
CB
=50V
V
CB
=30V
I
C
=500mA, I
B
=50mA
V
CE
=1V, I
C
=300mA
V
CE
=5V, I
C
=10mA,
f=50MHz
V
CB
=10V, f=1MHz
Current Gain Group: -16
DC Current Gain
V
CE
= 5V,
-25
I
C
= 100mA
-40
V
CE
= 5V,
I
C
= 300mA
BC337
BC338
BC337
BC338
BC337
BC338
SYMBOL
P
TOT
V
CBO
V
CEO
V
EBO
I
C
I
CM
T
J
, T
STG
SYMBOL
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
V
CE(sat)
V
BE(on)
f
T
C
ob
MIN
50
30
45
25
5
5
-
-
-
-
100
12
100
160
h
FE
250
60
VALUE
625
50
30
45
25
5
5
800
1000
-55 to +150
MAX
-
-
-
100
100
0.7
1.2
-
-
250
400
630
-
V
UNIT
mW
V
V
V
mA
mA
°C
UNIT
V
V
V
nA
V
V
MHz
pF
Document Number: DS_S1407004
Version: B14
BC337-16/25/40 thru BC338-16/25/40
Taiwan Semiconductor
Small Signal Product

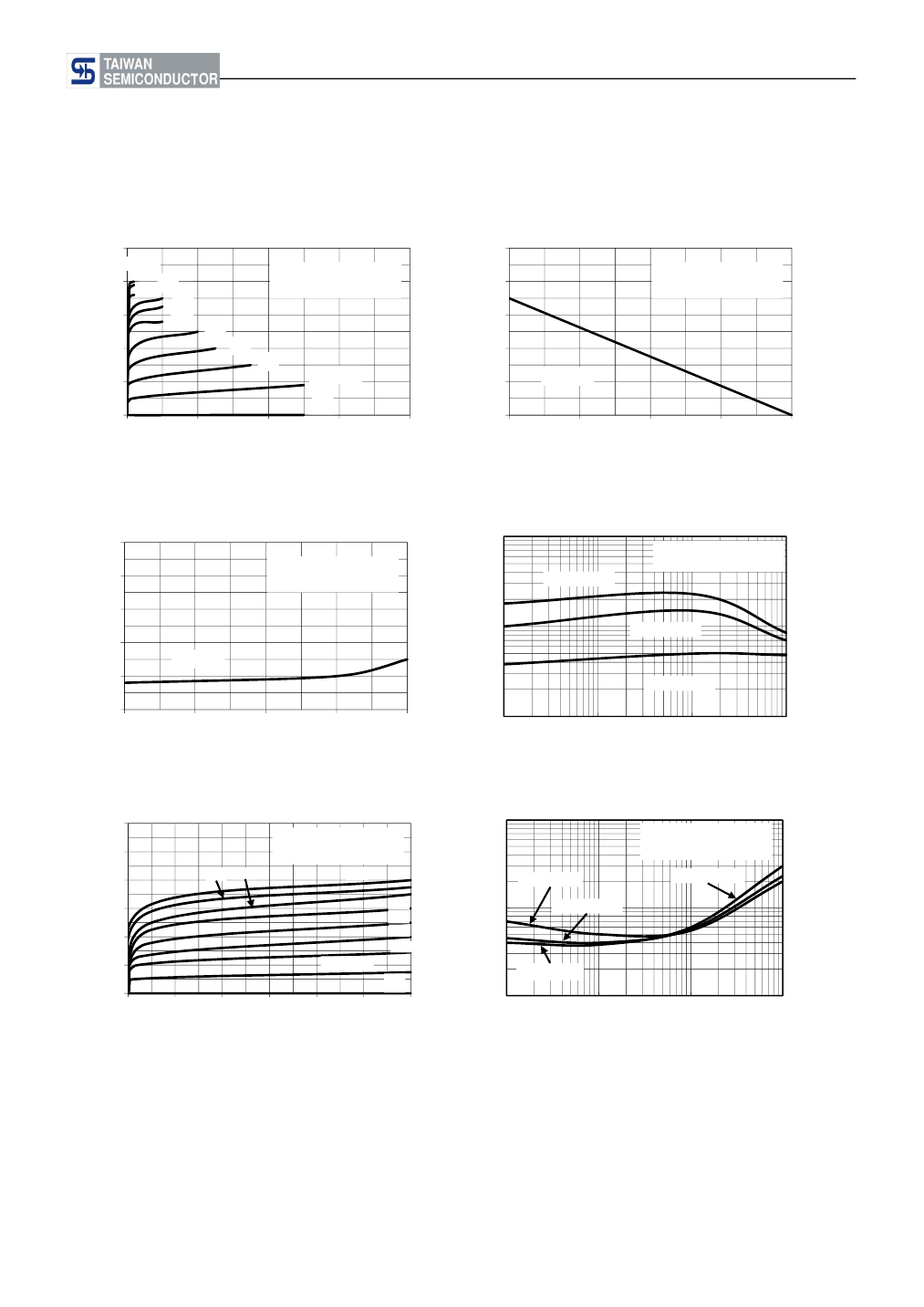

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25℃ unless otherwise noted)
FIG.1 STATIC CHARACTERSTIC
1000
Ic(mA), COLLECTOR CURRENT
800
600
400
200
0
0
10
20
Ic(mA), COLLECTOR CURRENT
10
9
8
COMMON EMITTER
Ta=25℃
1000
800
600
400
200
0
0.8
0.6
0.4
BASE CURRENT I
B
(mA)
0.2
0
V
CE
=1V
COMMON EMITTER
Ta=25℃
FIG.2 STATIC CHARACTERSTIC
7
6
5
4
3
2
I
B
=1mA
0
30
40
V
CE
(V), COLLECTOR EMITTER VOLTAGE
FIG.3 STATIC CHARACTERSTIC
0
BASE-EMITTER VOLTAGE V
BE
(V)
0.2
0.4
0.6
V
CE
=1V
0.8
1
0.8
0.6
0.4
BASE CURRENT I
B
(mA)
0.2
0
COMMON EMITTER
Ta=25℃
DC CURRENT GAIN h
FE
1000
FIG. 4 h
FE
- I
C
COMMON EMITTER
V
CE
=1V
Ta= 100℃
100
Ta= 25℃
Ta= -25℃
10
1
10
100
1000
Ic(mA), COLLECTOR CURRENT
FIG.5 IC - VCE(LOW VOLTAGE REGION)
1200
Ic(mA), COLLECTOR CURRENT
1000
800
600
400
200
0
0
1
2
3
4
5
V
CE
(V), COLLECTOR EMITTER VOLTAGE
I
B
=1mA
0
6
7
6
COMMON EMITTER
V
CE
=1V
8
5
4
3
2
COLLECTOR-EMITTER SATURATION
VOLTAGE V
CE(sat)
(V)
1
FIG. 6 V
CE
(sat) - I
C
COMMON EMITTER
I
C
/ I
B
= 25
Ta= -25℃
0.1
Ta= 25℃
Ta= 100℃
Ta= 100℃
0.01
1
10
100
1000
Ic(mA), COLLECTOR CURRENT
Document Number: DS_S1407004
Version: B14
BC337-16/25/40 thru BC338-16/25/40
Taiwan Semiconductor
Small Signal Product
ORDERING INFORMATION
PART NO.
BC33x-16
(Note2)
BC33x-25
(Note2)
BC33x-40
(Note2)
BC33x-16
(Note2)
BC33x-25
(Note2)
BC33x-40
(Note2)
MANUFACTURE
CODE (Note1)
PACKING CODE
A1
A1
A1
B1
B1
B1
GREEN COMPOUND
CODE
G
G
G
G
G
G
PACKAGE
PACKING
4K / Ammo
4K / Ammo
4K / Ammo
5K / Bulk
5K / Bulk
5K / Bulk
MARKING
BC33x-16
(Note2)
BC33x-25
(Note2)
BC33x-40
(Note2)
BC33x-16
(Note2)
BC33x-25
(Note2)
BC33x-40
(Note2)
TO-92
TO-92
TO-92
TO-92
TO-92
TO-92
Note1: Indicator of manufacturing site for manufacture special control, if empty means no special control requirement.
Note2: "x" is Device Code from "7" through "8", and "MARKING" should follow the "PART NO."
EXAMPLE
PREFERRED P/N
BC337-16 A1G
BC337-16 B1G
BC337-16-B0 A1G
BC337-16-B0 B1G
PART NO.
BC337-16
BC337-16
BC337-16
BC337-16
B0
B0
MANUFACTURE
CODE
PACKING CODE
A1
B1
A1
B1
GREEN COMPOUND
CODE
G
G
G
G
DESCRIPTION
Green compound
Green compound
Green compound
Green compound
Document Number: DS_S1407004
Version: B14
BC337-16/25/40 thru BC338-16/25/40
Taiwan Semiconductor
Small Signal Product

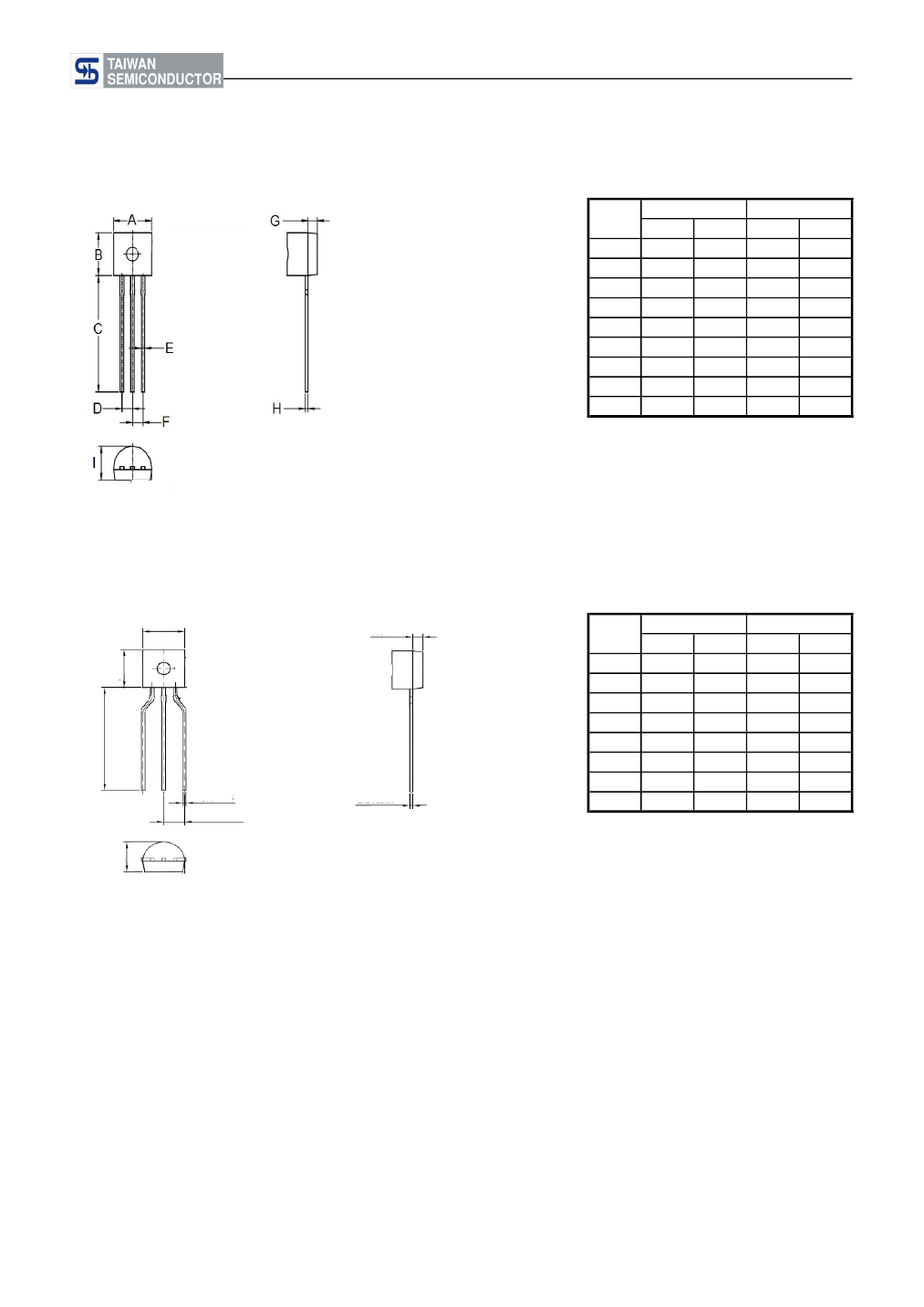

PACKAGE OUTLINE DIMENSIONS
TO-92 Bulk
DIM.
A
B
C
D
E
F
G
H
I
Unit (mm)
Min
4.30
4.30
12.50
1.17
0.35
1.17
0.59
0.29
3.30
Max
5.10
4.70
14.50
1.37
0.55
1.37
1.40
0.51
4.10
Unit (inch)
Min
0.169
0.169
0.492
0.046
0.014
0.046
0.023
0.011
0.130
Max
0.201
0.185
-
0.054
0.022
0.054
0.055
0.020
0.161
TO-92 Ammo
A
B
F
Unit (mm)
Min
4.30
4.30
12.50
2.20
0.35
0.59
0.29
3.30
Max
5.10
4.70
-
2.80
0.55
1.40
0.51
4.10
Unit (inch)
Min
0.169
0.169
0.492
0.087
0.014
0.023
0.011
0.130
Max
0.201
0.185
-
0.110
0.022
0.055
0.020
0.161
DIM.
A
B
C
D
E
F
G
C
E
D
G
H
SUGGEST PAD LAYOUT
H
Document Number: DS_S1407004
Version: B14
BC337-16/25/40 thru BC338-16/25/40
Taiwan Semiconductor
Small Signal Product
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf, assumes no responsibility
or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to any intellectual property
rights is granted by this document. Except as provided in TSC's terms and conditions of sale for such products, TSC assumes no liability
whatsoever, and disclaims any express or implied warranty, relating to sale and/or use of TSC products including liability or warranties
relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications. Customers using or seling these
products for use in such applications do so at their own risk and agree to fully indemnify TSC for any damages resulting from such improper
use or sale.
Document Number: DS_S1407004
Version: B14
