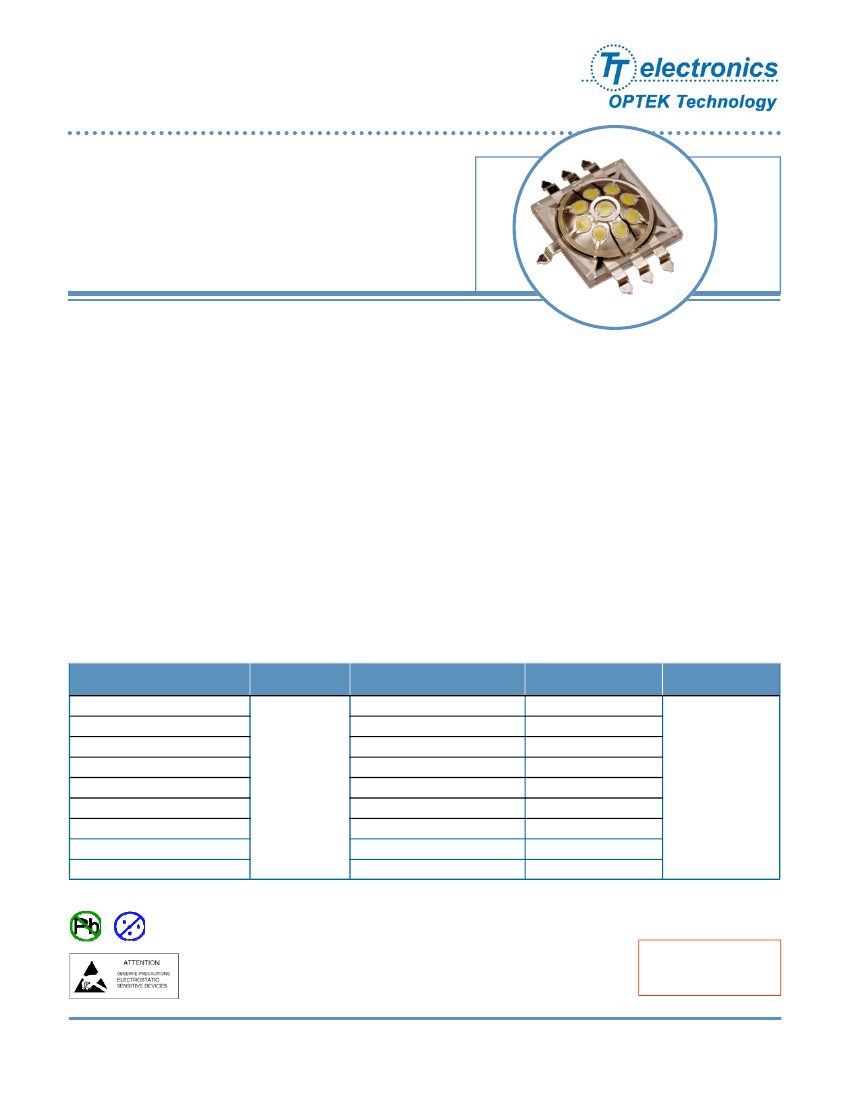

Lednium Series Optimal X
(10-watts,120° Viewing Angle)
OVTL09LG3x Series
•
•
•
•
•
Revolutionary 3-dimensional packaged LED source
Robust energy-efficient design with long operating life
Low thermal resistance (2.5°C/W)
Exceptional spatial uniformity
Available in amber, blue, cyan, green, red, cool white,
daylight white, warm white and multi-colored
The
OVTL09LG3x Series
surface mount provides a 10-Watt energy-efficient 3-dimensional packaged LED
source that offers high luminance, low thermal resistance @ 2.5°C/W and a long operating lifespan. A 120°
viewing angle and three color options of white (cool, daylight, warm) make the Optimal X highly suitable for
general illumination and specialized lighting applications.
Applications
•
•
•
•
•
Automotive exterior and interior lighting
Architectural lighting
Electronic signs and signals
Task lighting
General illumination
Flux Characteristics (I
F
= 1.05 A, T
J
= 25° C)
Part Number
OVTL09LG3A
OVTL09LG3B
OVTL09LG3C
OVTL09LG3G
OVTL09LG3R
OVTL09LG3W
OVTL09LG3WD
OVTL09LG3WW
OVTL09LG3M
Viewing An-
gle
Emitted Color
Amber
Blue
Cyan
Green
120°
Red
Cool White
Daylight White
Warm White
Red/Green/Blue
Typical Luminous
Flux (lm)
305
105
348
522
400
565
522
435
300
Lens Color
Water Clear
RoHS
Moisture
DO NOT LOOK DIRECTLY
AT LED WITH UNSHIELDED
EYES OR DAMAGE TO
RETINA MAY OCCUR.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue B.2 07/08
Page 1 of 14
Lednium Series Optimal X
OVTL09LG3x Series

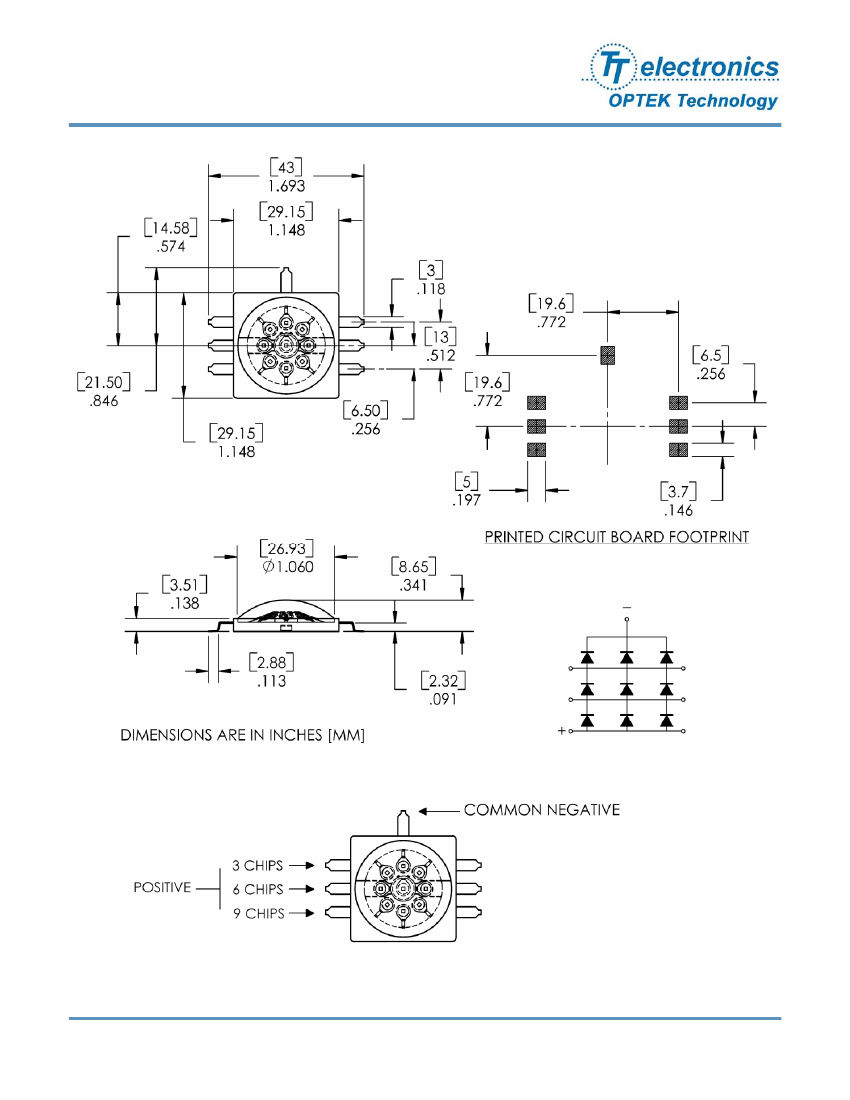

Package Drawing:
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue B.2 07/08
Page 2 of 14
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Lednium Series Optimal X
OVTL09LG3x Series
Absolute Maximum Ratings
DC Forward Current
Peak Pulsed Forward Current
1
Reverse Voltage
Maximum Allowable Junction Temperature
2
Storage and Operating Temperature
Notes:
1. Pulse width 1 ms maximum, duty cycle 1/16.
2. Thermal resistance junction to board (T
JB
) is 2.5° C/W.
1.05 A
3A
15 V
130° C
-50° ~ +85 ° C
Electrical Characteristics
(I
F
= 1.05 A, T
J
= 25° C)
SYMBOL
PARAMETER
Forward Voltage
(Amber)
Forward Voltage
(Blue)
Forward Voltage
(Green & Cyan)
Forward Voltage
(Red)
Forward Voltage
(Red/Green/Blue)
Forward Voltage
(White)
MIN
5.7
8.7
9.6
5.7
8.5
8.7
----
----
----
----
TYP
6.9
10.2
10.8
6.9
9.2
10.2
-6.0
-4.8
-5.0
120
MAX
7.8
11.1
12.0
7.8
9.9
11.1
----
----
----
----
UNITS
V
V
V
V
V
V
mV/°C
mV/°C
mV/°C
deg
V
F
V
F
Temperature Co-efficient
(Amber, Red)
V
F
Temperature Co-efficient
(White, Blue)
V
F
Temperature Co-efficient
(Green & Cyan)
2
Θ½
50% Power Angle
Optical Characteristics
(I
F
= 1.05 A, T
J
= 25° C)
COLOR
Amber
Blue
Cyan
Green
Red
DOMINANT WAVELENGTH
MIN
590
455
500
510
620
TYP
595
460
505
515
625
MAX
600
465
510
520
630
SPECTRAL FULL-WIDTH-
HALF-MAXIMUM
16 nm
24 nm
37nm
40 nm
18 nm
DOMINANT WAVELENGTH
TEMPERATURE DEPENDENCE
0.08 nm/° C
0.05 nm/° C
0.04 nm/° C
0.04 nm/° C
0.05 nm/° C
Color
Cool White
Minimum CCT (°K) Maximum CCT (°K)
6400
7600
C
x
C
y
C
x
C
y
C
x
C
y
Chromaticity Coordinates
.298
.314
.313
.341
.388
.375
.304
.297
.317
.313
.403
.424
.316
.318
.336
.345
.440
.440
.313
.340
.338
.382
.419
.391
Daylight White
5200
6400
Warm White
3200
3800
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue B.2 07/08
Page 3 of 14
Lednium Series Optimal X
OVTL09LG3 Series
Standard Bins
Lamps are sorted to luminous flux (Φ) and forward voltage (V
F
) bins shown. Orders may be filled with any or all bins
contained as below.
OVTL09LG3A
(AMBER)
(I
F
= 1.05A)
Luminous flux (lm)
Dominant Wavelength 590-600nm
350
275
200
6.0
7.0
8.0
V1
A2V1
A1V1
V2
A2V2
A1V2
A2
A1
Forward Voltage (V
F
)
OVTL09LG3B
(BLUE)
(I
F
= 1.05A)
Dominant Wavelength 455-465nm
Luminous flux (lm)
130
110
90
9.5
V3
B2V3
B1V3
10.5
V4
B2V4
B1V4
11.5
B2
B1
Forward Voltage (V
F
)
OVTL09LG3C
(CYAN)
(I
F
= 1.05A)
Luminous flux (lm)
Dominant Wavelength 500-510nm
400
350
300
9.5
V3
T2V3
T1V3
10.5
V4
T2V4
T1V4
11.5
T2
T1
Forward Voltage (V
F
)
OVTL09LG3G
(GREEN)
(I
F
= 1.05 mA)
Luminous flux (lm)
Dominant Wavelength 510-520nm
550
500
450
9.5
V3
G2V3
G1V3
10.5
V4
G2V4
G1V4
G2
G1
11.5
Forward Voltage (V
F
)
Important Notes:
1. All ranks will be included per delivery, rank ratio will be based on the chip distribution.
2. To designate forward voltage and luminous flux ranks, please contact OPTEK.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue B.2 07/08
Page 4 of 14
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Lednium Series Optimal X
OVTL09LG3 Series
Standard Bins
Lamps are sorted to luminous flux (Φ) and forward voltage (V
F
) bins shown. Orders may be filled with any or all bins
contained as below.
OVTL09LG3R
(RED)
(I
F
= 1.05A)
Dominant Wavelength 620-630nm
Luminous flux (lm)
450
400
350
6.0
7.0
8.0
V1
R2V1
R1V1
V2
R2V2
R1V2
R2
R1
Forward Voltage (V
F
)
OVTL09LG3W (COOL WHITE)
(I
F
= 1.05A)
Typical CCT 7000°K (±600°K)
Luminous flux (lm)
V3
600
550
500
9.5
C2V3
C1V3
10.5
V4
C2V4
C1V4
C2
C1
11.5
Forward Voltage (V
F
)
OVTL09LG3WD (DAYLIGHT WHITE)
(I
F
= 1.05 A)
Typical CCT 5800°K (±600°K)
Luminous flux (lm)
V3
600
550
500
9.5
D1V3
10.5
D2V3
V4
D2V4
D1V4
D2
D1
11.5
Forward Voltage (V
F
)
OVTL01LGAWW and OVTL01LGAWWS (WARM WHITE)
(I
F
= 350 mA)
Typical CCT 3500°K (±300°K)
Luminous flux (lm)
500
450
400
9.5
V3
W2V3
W1V3
10.5
V4
W2V4
W1V4
W2
W1
11.5
Forward Voltage (V
F
)
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue B.2 07/08
Page 5 of 14
