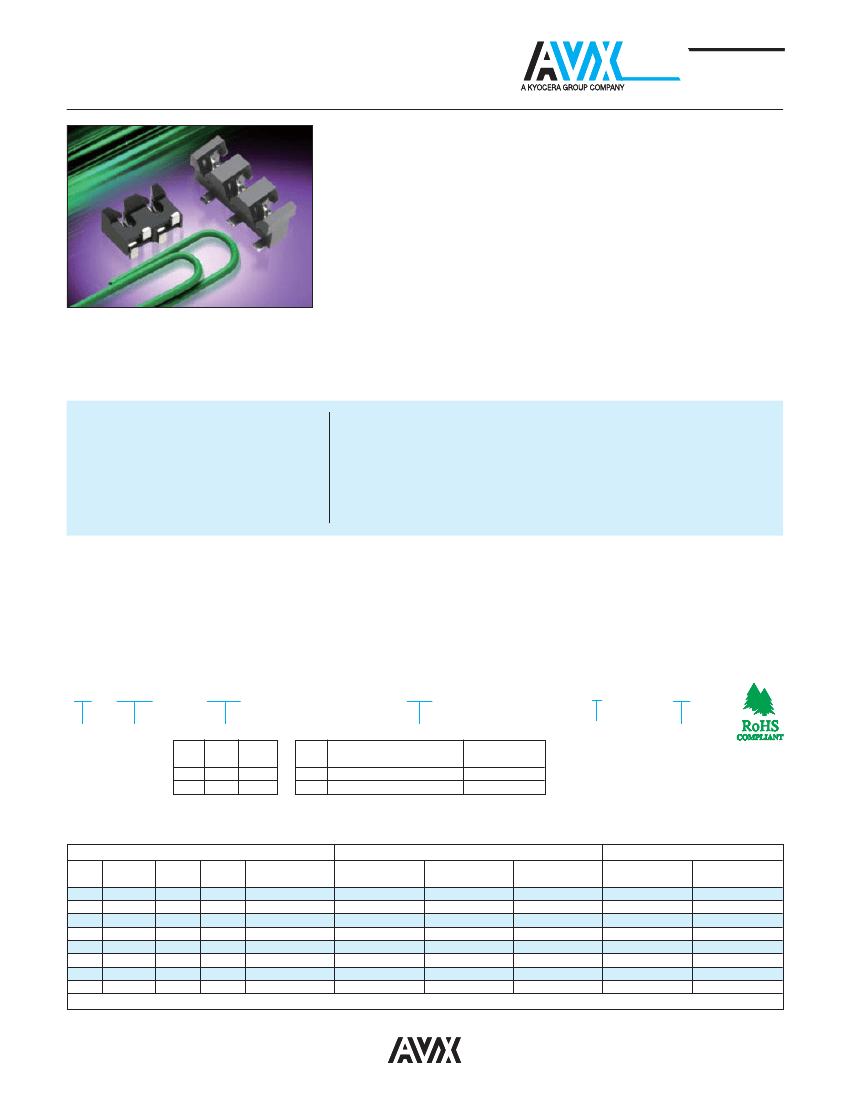

The 917X series of surface mount Insulation Displacement Connectors (IDC) were
developed to meet the harsh automotive and industrial market applications for
connecting individual wires directly to a PCB ranging from 14 AWG to 28 AWG. This
industry proven contact system has been tested to automotive levels of shock, vibration,
and temperature cycling to prove their reliability and robustness. The simplicity of
inserting a wire into the connector with a small tool allows a wide range of devices to be
connected to the PCB without soldering. In SSL applications specifically, these
connectors are used to bring power and signal onto the PCB or are used to daisy chain
multiple boards together in a long string. While the IDC contact provides a gas-tight
connection to conductor of the wire, the housing has been designed to grab the
insulation of the wire to provide a positive strain relief even in the harshest conditions. In
case of repair, the wires can be removed and replace up to three times.
The 9175 series accepts 26 AWG to 28 AWG wires with an insulation diameter ranging
from 0.7mm to 1.0mm. These single contact connectors support a 1 amp current rating
and have a split SMT tail design to provide maximum stability on the PCB. Available in a
2p and 3p configuration, these connectors can be end stackable for higher pin counts.
APPLICATIONS
• Connecting discrete wire components
directly to the PCB
• Bringing power and signals onto a PCB
• Daisy chaining PCB’s together to create
a continuous string of boards
• Application Notes: refer to 201-01-124
•
•
•
•
•
•
FEATURES AND BENEFITS
IDC contact provides a gas-tight connection to the PCB for long term reliability
Connector housing captures the wire insulation for positive strain relief
Tested to automotive levels on shock, vibration and temperature cycling for reliability
Low and high volume assembly tools to match production volumes
Reduced total applied cost versus solder or crimp processes
High temperature insulator capable to 260 degrees C reflow soldering processes
ELECTRICAL
• Current Rating: 1 Amp / Contact
• Voltage Rating: 150 VAC
ENVIRONMENTAL
• Operating Temperature:
-40ºC to +125ºC
MECHANICAL
•
•
•
•
Insulator Material: Nylon 46: UL94V0
Contact Material: Phosphor Bronze
Plating: Tin over Nickel
Durability: 3 Cycles
HOW TO ORDER
00
Prefix
9175
Series
00X
Number of Ways
Code
002
003
No of
Ways Details
2
Page 4
3
Page 5
Code
001
002
00X
Wire Gauge Size
Accepted
Wire
Wire Gauge
Insulation
28 Gauge Solid or Stranded Ø 0.70 to Ø 1.00
26 Gauge Solid or Stranded Ø 0.70 to Ø 1.00
X
Insulator Color
9 = UL White
8 = UL Black
Special Order
06
Plating
Option
06 = Pure Tin
all over
CONNECTOR/TOOLING PART NUMBER MATRIX
AWG
26
26
26
26
28
28
28
28
SERIES 9175 IDC
HAND INSERTION TOOLING*
ACCESSORY CAPS
Wire
Plastic
Metal
Mass
Positions
Color
Part Number
Though Wire
Wire Stop
Insulation
(medium volume)
(high volume)
Termination
Ø 0.7 - 1.0
2p
White 009175002002906 069175701601000 069175701701000 069175701701002 609175002010100 609175002010199
Ø 0.7 - 1.0
2p
Black 009175002002806 069175701601000 069175701701000 069175701701002 609175002010000 609175002010099
Ø 0.7 - 1.0
3p
White 009175003002906 069175701601000 069175701701000 069175701701003 609175003010100 609175003010199
Ø 0.7 - 1.0
3p
Black 009175003002806 069175701601000 069175701701000 069175701701003 609175003010000 609175003010099
Ø 0.7 - 1.0
2p
White 009175002001906 069175701601000 069175701701000 069175701701002 609175002010100 609175002010199
Ø 0.7 - 1.0
2p
Black 009175002001806 069175701601000 069175701701000 069175701701002 609175002010000 609175002010099
Ø 0.7 - 1.0
3p
White 009175003001906 069175701601000 069175701701000 069175701701003 609175003010100 609175003010199
Ø 0.7 - 1.0
3p
Black 009175003001806 069175701601000 069175701701000 069175701701003 609175003010000 609175003010099
* Hand Insertion Tooling - Universal Hand Tool 067000773001000; Consult Application Notes 201-01-124
Certification: UL File #E90723
032117
3
Standard 26-28 AWG: WTB
00-9175

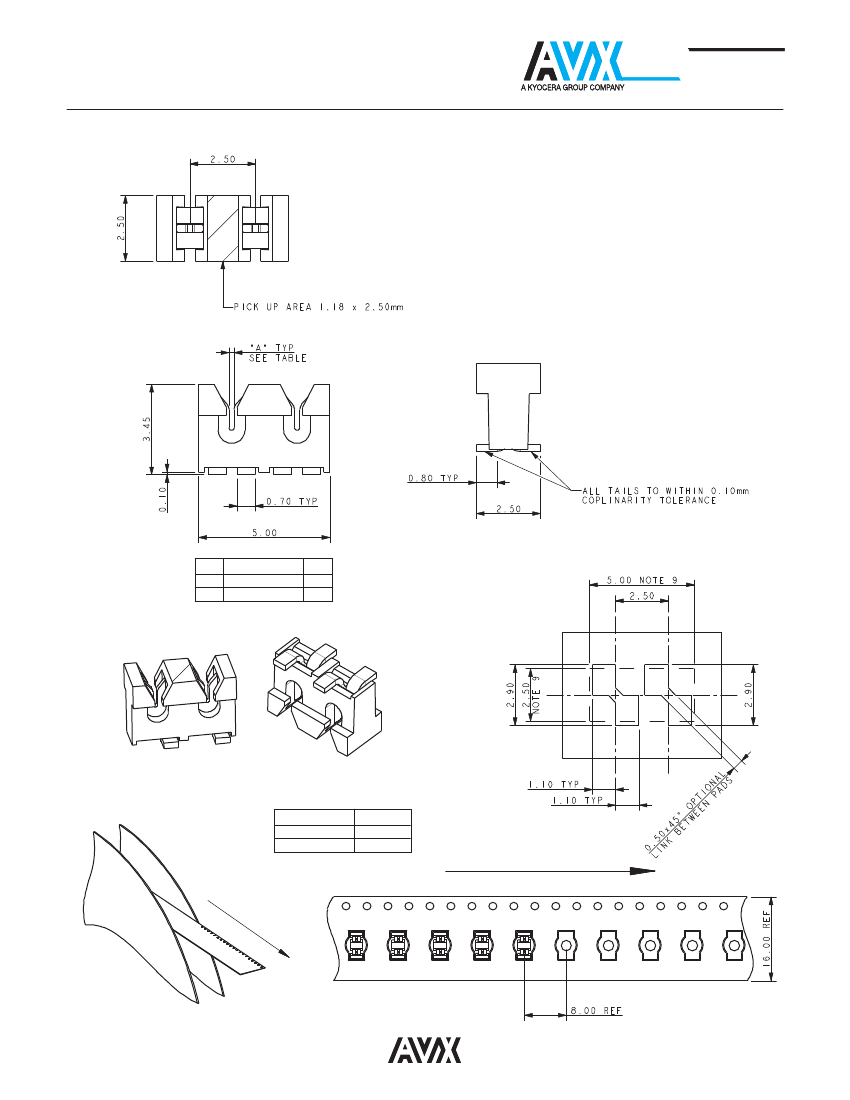

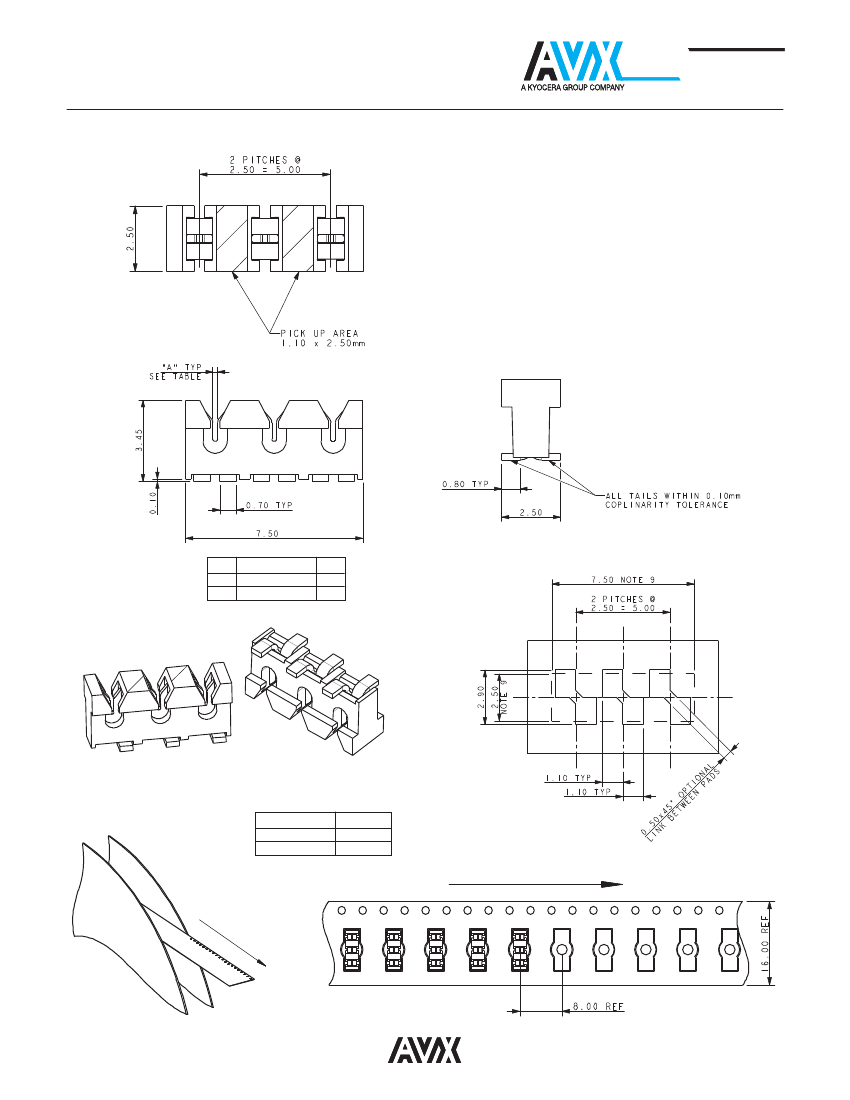

26-28 AWG 2 WAY IDC CONNECTOR
INTER
CONNECT
NOTES:
1. CONNECTOR FOR IDC WIRE TO BOARD CONNECTION.
2. CONTACT MATERIAL: PHOSPHOR BRONZE.
INSULATION MATERIAL: HIGH TEMPERATURE NYLON 46.
COLOR REFER TO PAGE 3.
3. CONNECTOR DESIGNED TO ACCEPT 26 AND 28 GAUGE SOLID OR
STRANDED WIRE.
4. ALL DIMENSIONS FOR REFERENCE UNLESS OTHERWISE STATED.
5. FOR FULL PRODUCT SPECIFICATION ON STANDARD CONNECTORS
REFER TO ELCO SPEC 201-01-100, UL COMPONENTS REFER TO ELCO
SPEC 201-01-100UL.
6. APPLICATION NOTES 201-01-124.
7. FOR UL PRODUCT CODES UL REFERENCE 390723 (US AND CANADA).
8. CONNECTOR OUTLINE.
9 ALL DIMENSIONS ±0.20 UNLESS TOLERANCE SPECIFIED.
SMT PCB LAYOUT
PURE TIN PADS
Code
001
002
Wire Gauge
28AWG
26AWG
A
0.20
0.28
PACKING DETAILS
REEL QTY
LEADER
TRAILER
2000
500MM
500MM
4
032117
Standard 26-28 AWG: WTB
00-9175
26-28 AWG 3 WAY IDC CONNECTOR
INTER
CONNECT
NOTES:
1. CONNECTOR FOR IDC WIRE TO BOARD CONNECTION.
2. CONTACT MATERIAL: PHOSPHOR BRONZE.
INSULATION MATERIAL: HIGH TEMPERATURE NYLON 46.
COLOR REFER TO PAGE 3.
3. CONNECTOR DESIGNED TO ACCEPT 26 AND 28 GAUGE SOLID OR
STRANDED WIRE.
4. ALL DIMENSIONS FOR REFERENCE UNLESS OTHERWISE STATED.
5. FOR FULL PRODUCT SPECIFICATION ON STANDARD CONNECTORS
REFER TO ELCO SPEC 201-01-100, UL COMPONENTS REFER TO ELCO
SPEC 201-01-100UL.
6. APPLICATION NOTES 201-01-124.
7. FOR UL PRODUCT CODES UL REFERENCE 390723 (US AND CANADA).
8. CONNECTOR OUTLINE.
9 ALL DIMENSIONS ±0.20 UNLESS TOLERANCE SPECIFIED.
SMT PCB LAYOUT
Code
001
002
Wire Gauge
28AWG
26AWG
A
0.20
0.28
PURE TIN PADS
PACKING DETAILS
REEL QTY
LEADER
TRAILER
2000
500MM
500MM
032117
5
Standard 26-28 AWG: WTB
00-9175
60-9175-00X-010-X00

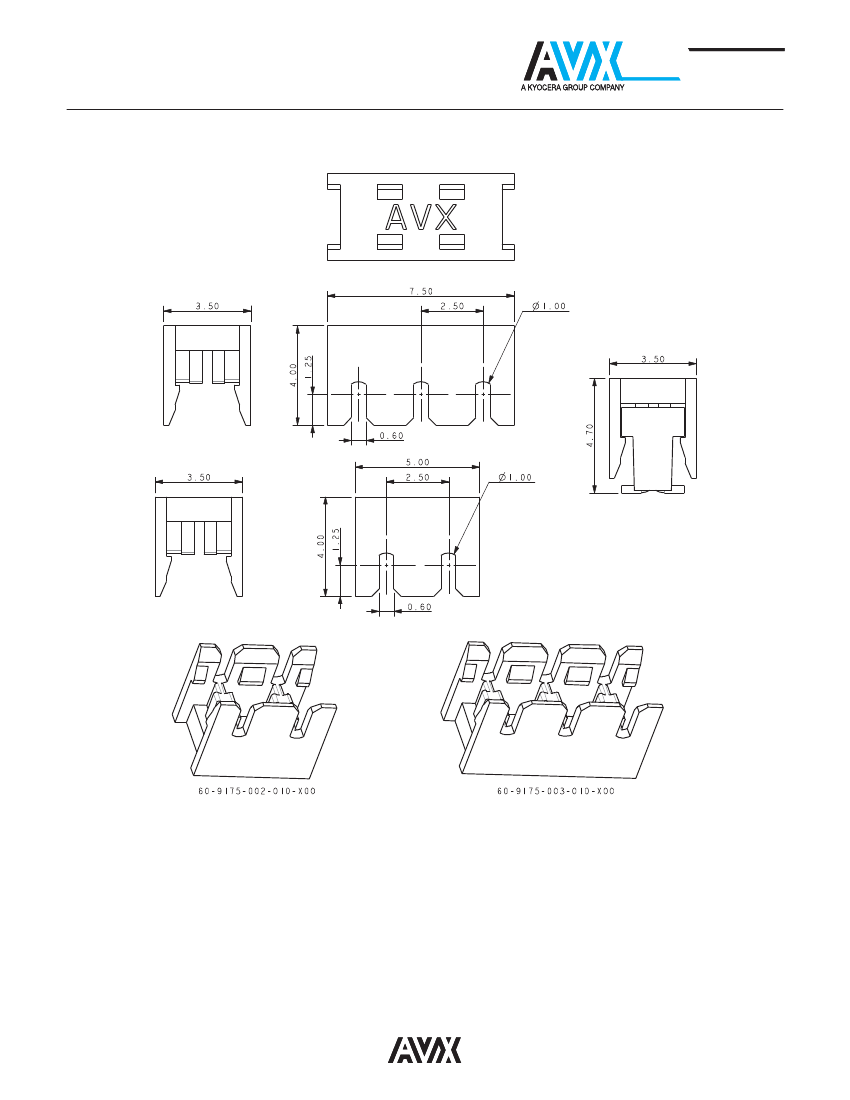

ACCESSORY CAP – THROUGH WIRE
INTER
CONNECT
ASSEMBLED
DIMENSIONS
NOTES:
1. CAP FOR IDC WIRE TO BOARD CONNECTION, 2 AND 3 WAY, THROUGH WIRE.
2. THROUGH WIRE CAP CAN BE USED AT ANY POSTION ALONG A WIRE.
3. FOR USE WITH STANDARD 9175 IDC CONNECTORS
4. CAP MATERIAL: GLASS FILLED NYLON 46, FOR COLORS SEE PAGE 3.
5. CAPS DESIGNED TO ACCOMMODATE WIRES WITH INSULATION UP TO 1.00MM DIAMETERS.
6. GENERAL TOLERANCE ±0.20.
7. PACKED IN BAGS, 1000 PIECES PER BAG.
8. ALL DIMENSIONS ±0.20 UNLESS TOLERANCE SPECIFIED.
6
032117
Standard 26-28 AWG: WTB
00-9175
60-9175-00X-0XX-010-X99

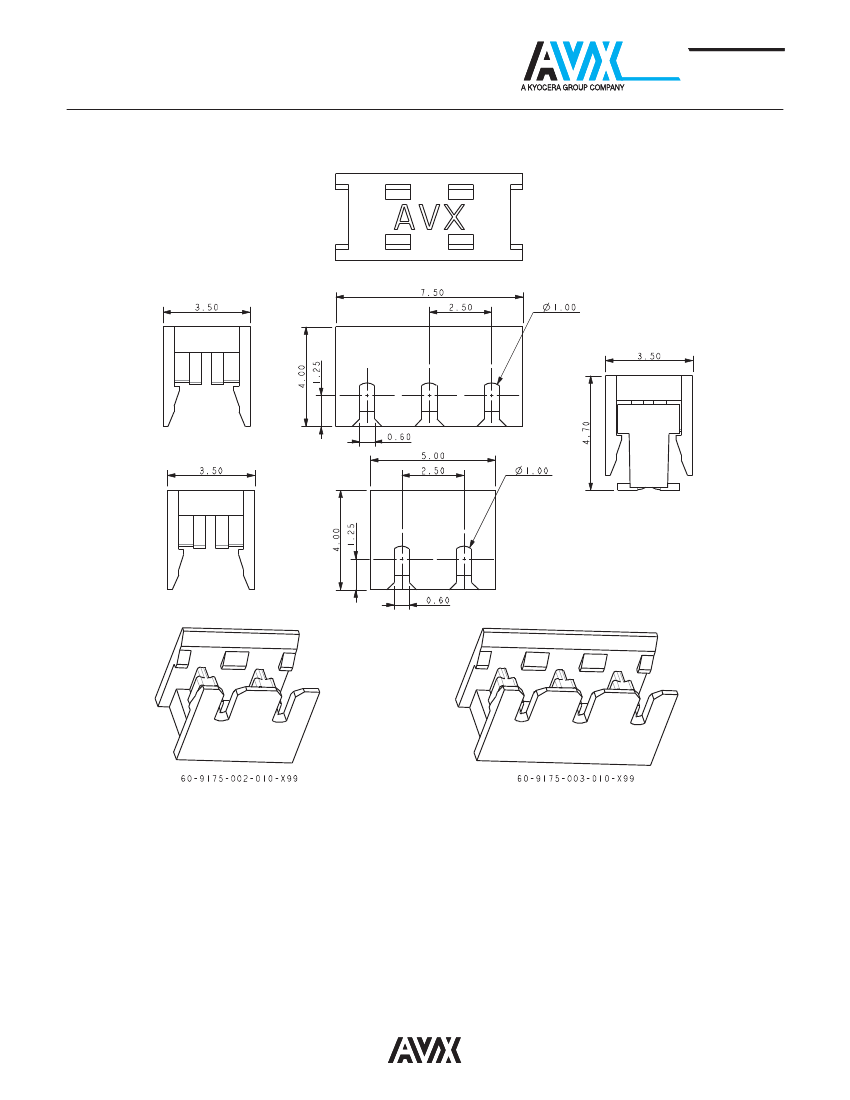

ACCESSORY CAP – WIRE STOP
INTER
CONNECT
ASSEMBLED
DIMENSIONS
NOTES:
1. CAP FOR IDC WIRE TO BOARD CONNECTION, 2 AND 3 WAY, WIRE STOP.
2. WIRE STOP CAP FOR USE AT WIRE ENDS, STOP FACE PROTECTS THE WIRE ENDS.
3. FOR USE WITH STANDARD 9175 IDC CONNECTORS
4. CAP MATERIAL: GLASS FILLED NYLON 46, FOR COLORS SEE PAGE 3.
5. CAPS DESIGNED TO ACCOMMODATE WIRES WITH INSULATION UP TO 1.00MM DIAMETERS.
6. GENERAL TOLERANCE ±0.20.
7. PACKED IN BAGS, 1000 PIECES PER BAG.
8. ALL DIMENSIONS ±0.20 UNLESS TOLERANCE SPECIFIED.
032117
7
