14310614102000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 14310614102000

14310614102000: DescriptionTERM BLOCK PLUG 6POS STR 3.5MM; CategoryThe connector; File Size440KB，1 Pages; ManufacturerHARTING; Environmental Compliance

Download Datasheet Parametric Compare View All

14310614102000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	14310614102000	-	-	View	Buy Now

14310614102000 Overview

TERM BLOCK PLUG 6POS STR 3.5MM

14310614102000 Parametric

Parameter Name	Attribute value
type	plug, female socket
Number of pins	6
Number of pins per level	6
Number of levels	1
spacing	0.138"（3.50mm）
Needle seat direction	-
Plug entrance	180°
Terminal type	No Screws - Spring Cage/Tension Clamp
Installation type	free hanging
Current - IEC	-
Current - UL	11A
Voltage - UL	300V
Wire Gauge or Range - AWG	14-30 AWG
Wire gauge or range - mm²	0.14-1.5mm²
color	green
Operating temperature	-40°C ~ 110°C
Contact mating surface treatment	tin
characteristic	-
Material flammability rating	UL94 V-0
Intrusion protection	-
Screw size	-
Torque - Screws	-
Wire stripping length	9-10mm
Contact material	copper alloy
Shell material	Polyamide (PA), nylon, polyphthalamide (PPA)
Contact tail length	-
Insulation height	0.459"（11.66mm）

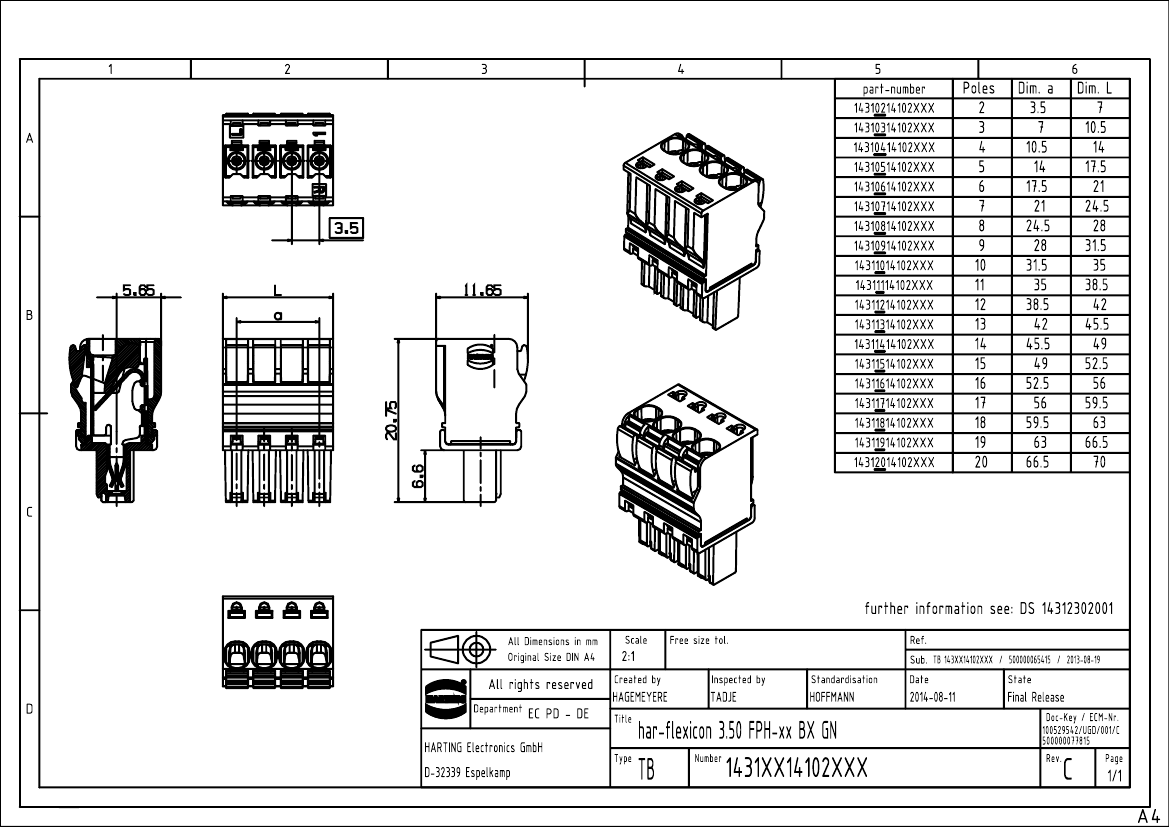

Preview

Download Datasheet

View All

14310614102000 Related Products

	14310614102000	14311014102000	14310814102000	14311214102000	14310314102000	14310214102000	14310414102000
Description	TERM BLOCK PLUG 6POS STR 3.5MM	TERM BLOCK PLUG 10POS STR 3.5MM	TERM BLOCK PLUG 8POS STR 3.5MM	TERM BLOCK PLUG 12POS STR 3.5MM	TERM BLOCK PLUG 3POS STR 3.5MM	TERM BLOCK PLUG 2POS STR 3.5MM	TERM BLOCK PLUG 4POS STR 3.5MM
type	plug, female socket	plug, female socket	plug, female socket	plug, female socket	plug, female socket	plug, female socket	plug, female socket
Number of pins	6	10	8	12	3	2	4
Number of pins per level	6	10	8	12	3	2	4
Number of levels	1	1	1	1	1	1	1
spacing	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）	0.138"（3.50mm）
Plug entrance	180°	180°	180°	180°	180°	180°	180°
Terminal type	No Screws - Spring Cage/Tension Clamp	No Screws - Spring Cage/Tension Clamp	No Screws - Spring Cage/Tension Clamp	No Screws - Spring Cage/Tension Clamp	No Screws - Spring Cage/Tension Clamp	No Screws - Spring Cage/Tension Clamp	No Screws - Spring Cage/Tension Clamp
Installation type	free hanging	free hanging	free hanging	free hanging	free hanging	free hanging	free hanging
Current - UL	11A	11A	11A	11A	11A	11A	11A
Voltage - UL	300V	300V	300V	300V	300V	300V	300V
Wire Gauge or Range - AWG	14-30 AWG	14-30 AWG	14-30 AWG	14-30 AWG	14-30 AWG	14-30 AWG	14-30 AWG
Wire gauge or range - mm²	0.14-1.5mm²	0.14-1.5mm²	0.14-1.5mm²	0.14-1.5mm²	0.14-1.5mm²	0.14-1.5mm²	0.14-1.5mm²
color	green	green	green	green	green	green	green
Operating temperature	-40°C ~ 110°C	-40°C ~ 110°C	-40°C ~ 110°C	-40°C ~ 110°C	-40°C ~ 110°C	-40°C ~ 110°C	-40°C ~ 110°C
Contact mating surface treatment	tin	tin	tin	tin	tin	tin	tin
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Wire stripping length	9-10mm	9-10mm	9-10mm	9-10mm	9-10mm	9-10mm	9-10mm
Contact material	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy
Shell material	Polyamide (PA), nylon, polyphthalamide (PPA)	Polyamide (PA), nylon, polyphthalamide (PPA)	Polyamide (PA), nylon, polyphthalamide (PPA)	Polyamide (PA), nylon, polyphthalamide (PPA)	Polyamide (PA), nylon, polyphthalamide (PPA)	Polyamide (PA), nylon, polyphthalamide (PPA)	Polyamide (PA), nylon, polyphthalamide (PPA)
Insulation height	0.459"（11.66mm）	0.459"（11.66mm）	0.459"（11.66mm）	0.459"（11.66mm）	0.459"（11.66mm）	0.459"（11.66mm）	0.459"（11.66mm）
