USB Charger for 7.4V LiPo Battery
SKU: DFR0564
Introduction

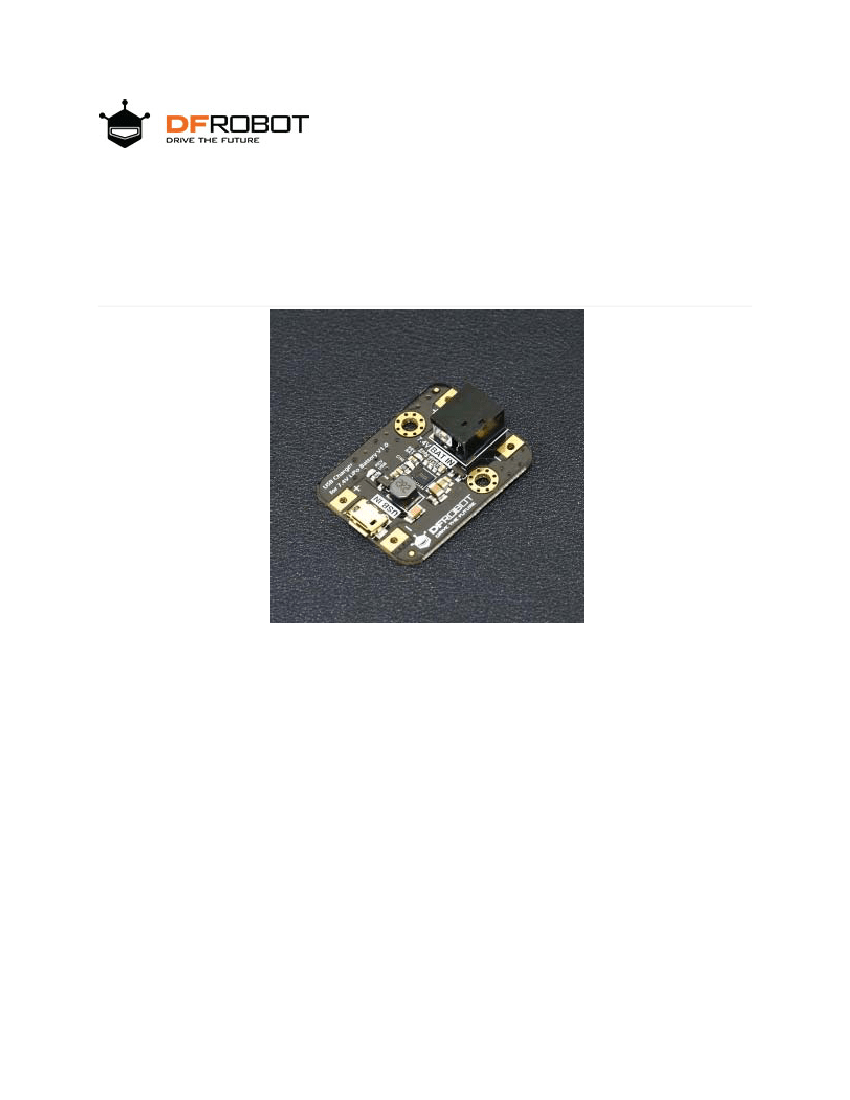

Still using a big, bulky, traditional power adapter to charge your lithium battery? DFRobot provides
you with a compact and efficient 7.4V lithium battery USB charger, only the size and weight of an
ordinary Gravity sensor. With just a mobile phone AC adapter (or power bank) and an Android data
cable, you can safely and efficiently charge the 7.4V lithium battery up to 1A, which commonly used
in various robots and motor drivers. The light-weight and micro USB interface features make it ideal
for outdoor applications. In addition to being a charger, it can also be embedded in a variety of 7.4V
lithium battery-powered projects, adding a USB charging function to it, eliminating the need for
battery swapping and the use of traditional bulky power adapters.
Features
High Efficieny Boost Type USB Charger, Designed for 7.4 Lithium Battery
Charge Input and Battery Port Reserved Pads for Easy Modification and Measurement
All-Round Protection of Battery and Power Supply
Multifunction LED Status Indicator, System Status at a Glance
USB ESD Shell
Specifications
Charge Input Voltage (USB IN)：3-6V (5V, Typical for USB IN)
Battery Input (BAT IN): 7.4V 2s Cells Li-Polymer/Li-ion Battery
Maximum Charge Current: 1A Trickle Charging, Constant Current, Constant Voltage Three Phases
Charging
Charge Cutoff Voltage: 8.4V±1%
Charge Efficiency: >90%
Protections
BAT IN: Over Charge/Reverse Connection Protection
USB IN: Adaptive Input Current Limitation, Over Heat/Reverse Connection Protection
Operation Temperature: -40
½85
Dimension: 28.0*37.0mm/ 1.1 * 1.46 inches
Applications
Robots and Motor Drivers
Lithium Battery Charger

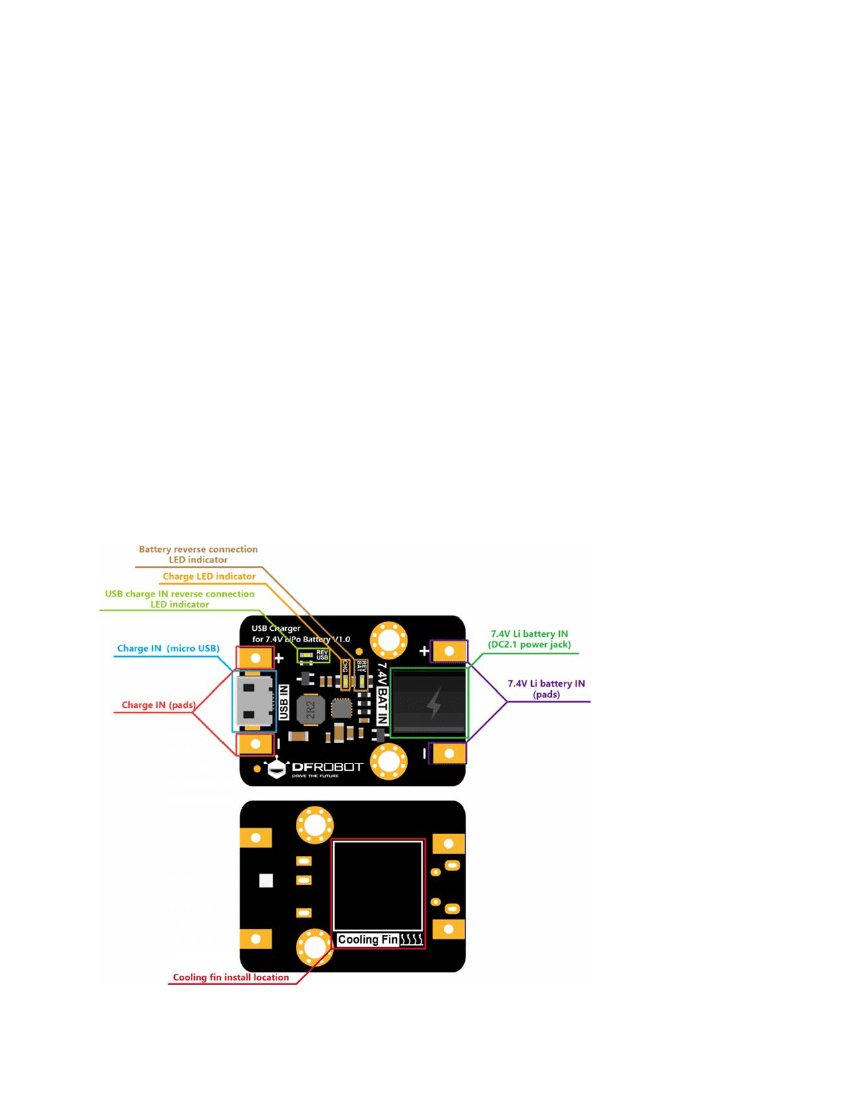

Board Overview
Quick Start

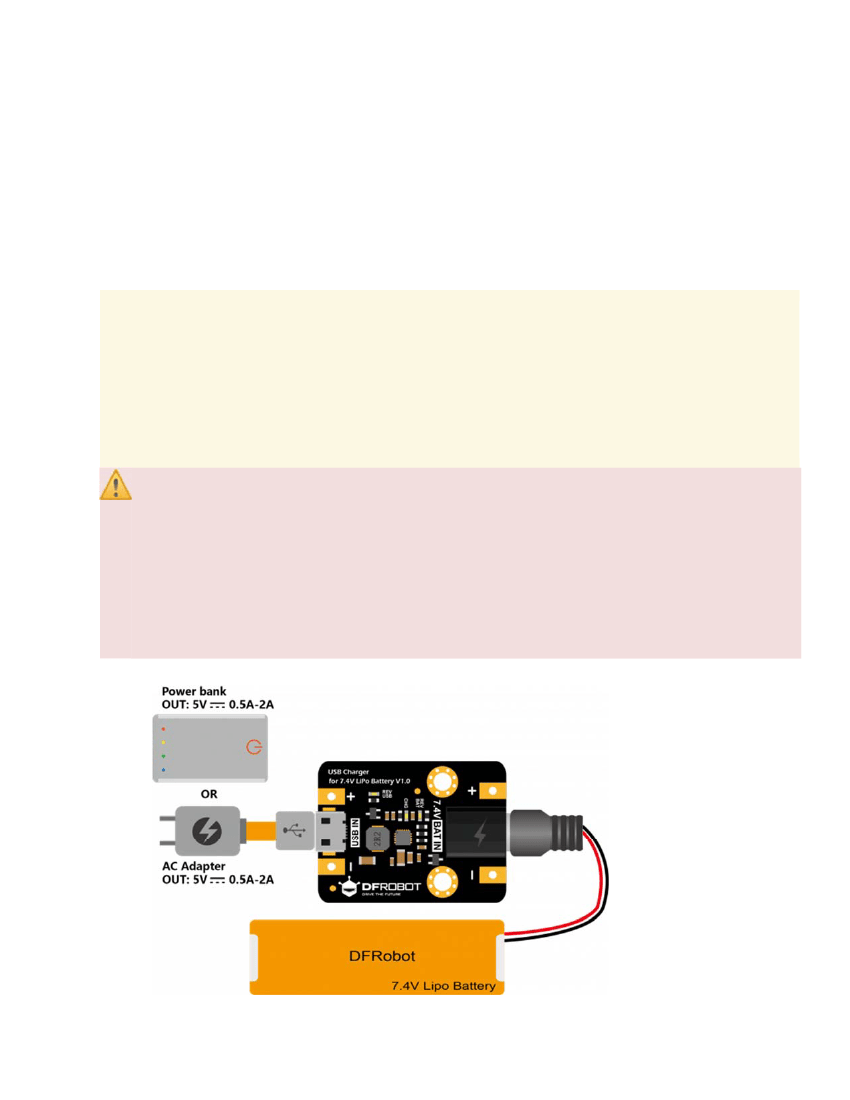

Use a mobile phone AC adapter or power bank to charge lithium battery
Connect the mobile phone AC adapter or the power bank to the USB IN port via a USB cable. The CHG
charge indicator (red) flashes rapidly indicating no battery being inserted.
Connect a 7.4V lithium battery to the BAT IN port. CHG is always on indicating the battery being charging.
After the charge is completed, CHG goes out。
Attention
The module generates a certain amount of heat during normal charging, which causes the module to heat up. This is
a normal phenomenon. Do not touch the components on the module during charging.
If the module is used outdoors in hot weather or embedded in a robot with high power, the module will be in poor
heat dissipation due to high ambient temperature. If the module is to work in such environment for a long time, in
order to enhance the heat dissipation and prolong its service life, it is recommended to stick the attached blue
thermal silica film on the cooling fin, and then attach it to the back of the module where it is labeled “Cooling Fin”.
Warning
Users can choose to use DFRobot 7.4V lithium battery, or buy a 2s 7.4V lithium battery with battery protection
circuit. Lithium battery manufacturers usually pack two identical 3.7V lithium batteries (usually lithium polymer
batteries or 18650 lithium batteries) in series and a battery protection circuit. This module is
unbalance
charging
type. When the battery connector is a JST-XH2.54 3P, please use a dedicated balance charger. This
module fits to the batteries, which only have a 2P connector (such as JST-HX2.54 2P or DC2.1mm power jack). It
is not recommended to use 7.4V lithium batteries without battery protection circuits.
Do not charge any two 3.7V lithium batteries in series by yourself. Otherwise, the batteries are probably
overcharged, causing it to be scrapped or even explode.
Detailed Description
USB Charge Requirements
The module has an adaptive current limiting function that automatically limits the charging current according
to the load capacity of the external input power supply, which protects the power supply from overload.
Regardless of the nominal power of the 5V power source, the module can safely and efficiently charge the
lithium battery. Under normal circumstances, a 5V 1A AC adapter (or power bank) can provide more than
500mA charging current for the batteries, while a 5V 2A AC adapter (or charging treasure) can provide more
than 700mA (up to 1A) of charging current for the batteries. The actual charging current and efficiency
depends on load capacity of the power supply and the power loss of the cable. Low-power AC adapters and
excessively long USB cable can easily trigger the current limiting function, which greatly reduces the
charging current and, hence, prolongs the charging period. In order to make full use of the charging capacity
of the module, it is recommended to use a high-quality 5V 2A mobile phone AC adapter (or power bank) and
the shortest possible USB charging cable to reduce the power loss.
LED Indicator and System Status
There are two kinds of LED indicators on board to indicate the working status of different parts of the module:
Reverse connection indicators:
When the BAT IN or USB IN is reversely connected, the corresponding anti-
reverse protection circuit is activated and the reverse connection LEDs indicator (orange)
REV BAT
and
REV
USB
turn ON, informing the user a connect error .
Multifunction charge indicator CHG
When the USB IN is powered normally and the battery is not connected, the
CHG
indicator (red) blinks
quickly to indicate that the battery has not been connected or is in poor contact.
When the battery is fully charged, CHG goes out.
When the following conditions occur, the CHG indicator flashes at a rate of about 1.3Hz, indicating that
the module is in charge error and stops charging.
USB IN is normally powered, but BAT IN is shorted.
Input voltage of USB IN exceeds 6V.
Charging time exceeds 6.5 hours.
Application Examples

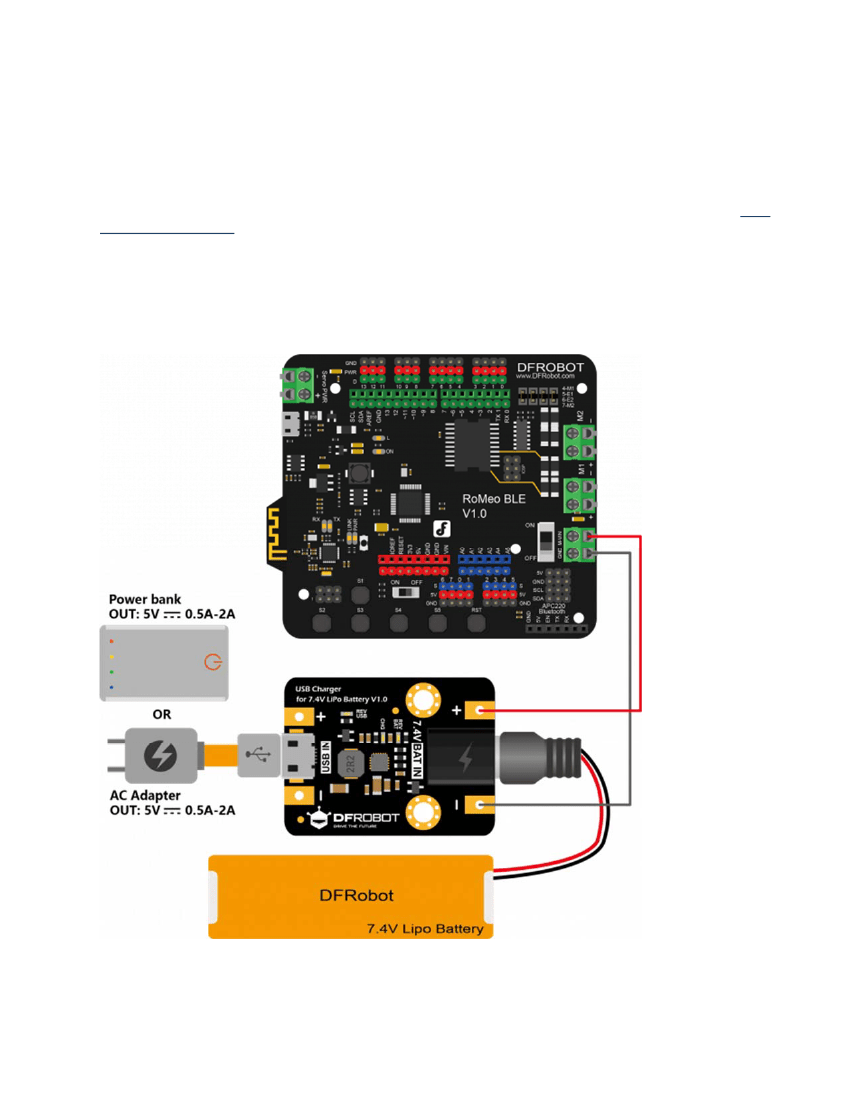

Add a 7.4V LiPo battery USB charge function to Romeo
Romeo's motor drivers require additional power at the M-VIN port, which is usually powered by a 7.4V
LiPo battery. After the battery is empty, you need to remove the battery and plug it in the dedicated
7.4V
Lipo Battery Charger,
and then plug it back in to Romeo after charging. Charging the battery in such way
is somewhat troublesome. Here, we provide a more elegant way in charging battery, integrating the
battery and the module with Romeo, leaving only a USB charging port. When the battery is used up, you
can use the power bank to charge the battery through the micro USB port. Then benefits of using a
power bank is that it is relative cheap and suitable for outdoor application, such as charging your robot
when the power outlets are unavailable.
