FA0515RN02B: DescriptionSWITCH ROTARY 3POS 0.4VA 20V; CategoryMechanical and electronic products switch; File Size334KB，4 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

FA0515RN02B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FA0515RN02B	-	-	View	Buy Now

FA0515RN02B Overview

SWITCH ROTARY 3POS 0.4VA 20V

FA0515RN02B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	16 weeks
Actuator material	NYLON
Actuator type	SCREW DRIVER SLOT
body height	12.45 mm
Body length or diameter	17.78 mm
center contact material	COPPER
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated power R load	0.4VA@20VAC
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC
Contact resistance	0.01 mΩ
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Dielectric withstand voltage	1000VRMS V
Electrical life	10000 Cycle(s)
End contact material	COPPER
End contact plating	GOLD OVER NICKEL
Shell material	NYLON
Graduation angle	90 deg
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT
Number of positions	3
Number of switching segments	1
Maximum operating temperature	65 °C
Minimum operating temperature	-30 °C
seal	EPOXY
surface mount	NO
Switch action	LATCHED
switch function	SP3T
Switch type	ROTARY SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal length	0.216 inch
Terminal material	COPPER
Termination type	SOLDER

Preview

Download Datasheet

View All

F Series

Miniature ROTA-SLIDE Rotary Switches

Features/Benefits

•

Multi-pole and multi-position

•

Panel and PCB mounting

•

Positive detent

•

Value added capability

•

RoHS Compliant

Typical Applications

•

Small appliances

•

Testing fixtures

•

Safety equipment

Models Available

Specifications

CONTACT RATING: Q contact material: 4 AMPS @ 125 V AC or

28 V DC; 2 AMPS @ 250 V AC (UL/CSA). See page K-24 for

additional ratings.

ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.

CONTACT RESISTANCE: Below 10 m Ω typ. initial @

2-4 V DC, 100 mA, for both silver and gold plated contacts.

INSULATION RESISTANCE: 109 Ω min.

DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.

INDEXING: 45º or 90º -one contact models; two contact models,

4 pos. max. Models with common terminal -90º, 4 pos. max.

OPERATING & STORAGE TEMPERATURE: -30ºC to 65ºC

Materials

HOUSING & BUSHING: 6/6 Nylon (UL 94V-2).

ACTUATOR: 6/6 nylon (UL 94V-2).

CONTACTS: Q contact material: Copper, silver plated. See page

K-24 for additional contact materials.

TERMINALS: Q contact material: Copper, silver plated. See page

K-24 for additional contact materials.

CONTACT SPRING: Music wire or stainless steel.

MOUNTING NUT: Brass, nickel plated.

TERMINAL SEAL: Epoxy.

NOTE:

Any models supplied with Q or B contact material are RoHS compliant.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Custome Service Center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages K-22 thru K-24. For additional options not shown in catalog, consult Customer Service Center.

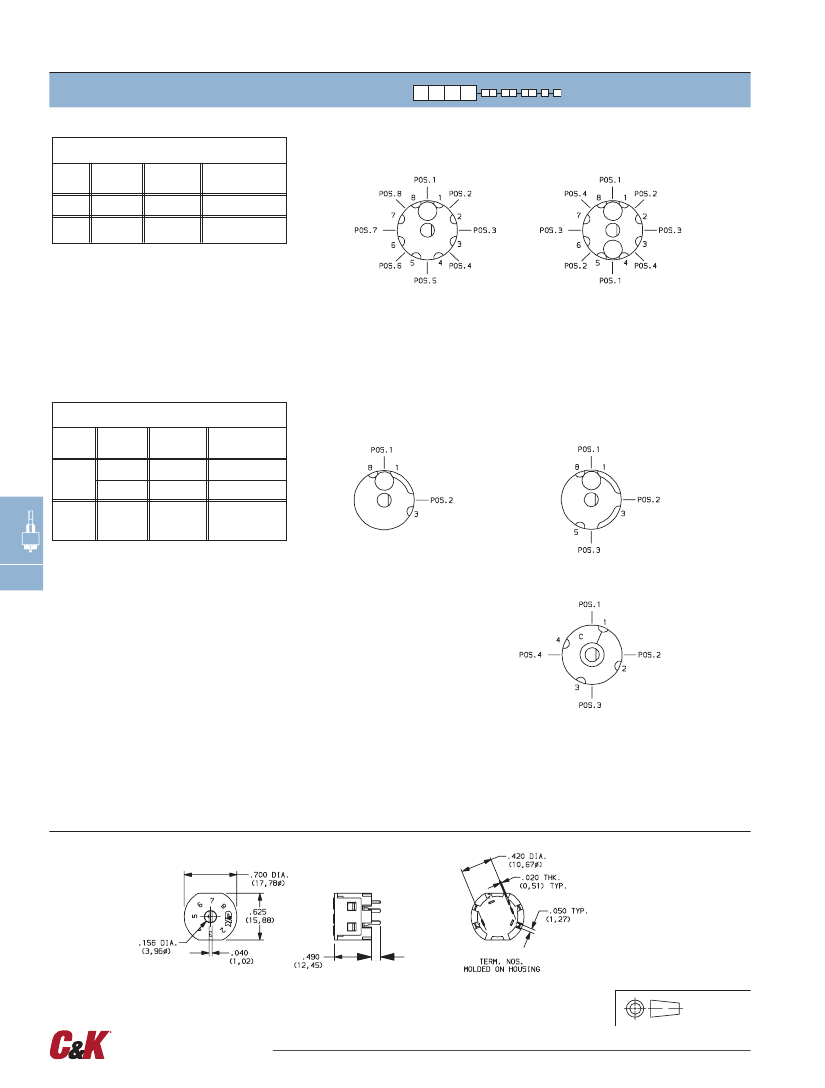

Rotary

Switch Function

FA05

SP, 90° Index, 3 pos.

F103

SP, 45° Index, 3 pos.

F203

DP, 45° Index, 3 pos.

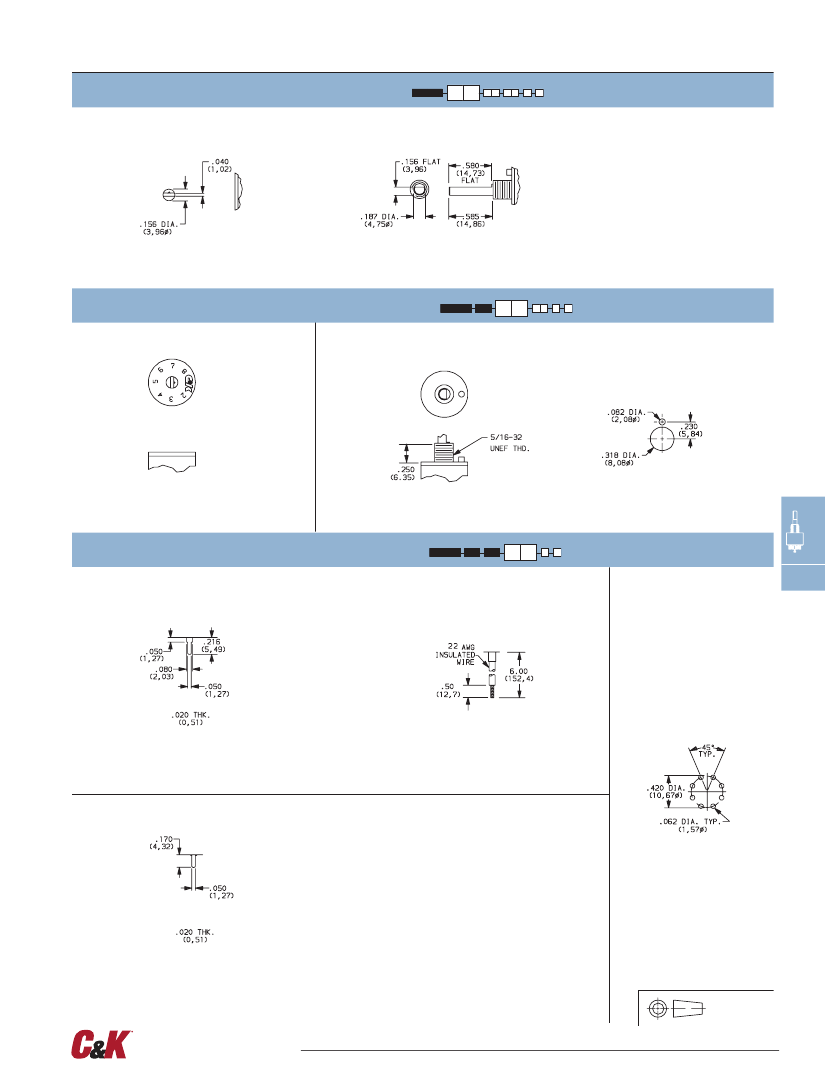

Actuator

FA01

SPDT, 90° Index

Screwdriver slot without bushing

FC03

SP, W/Common 90° Index, 3 pos.

.585” high with .156” flat

Mounting Style

5/16-32 threaded bushing

Terminations

PC Thru-hole

Wire lead

Contact Material

Silver

Gold

Seal

NONE No

seal

Epoxy seal

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

K–21

www.ckswitches.com
