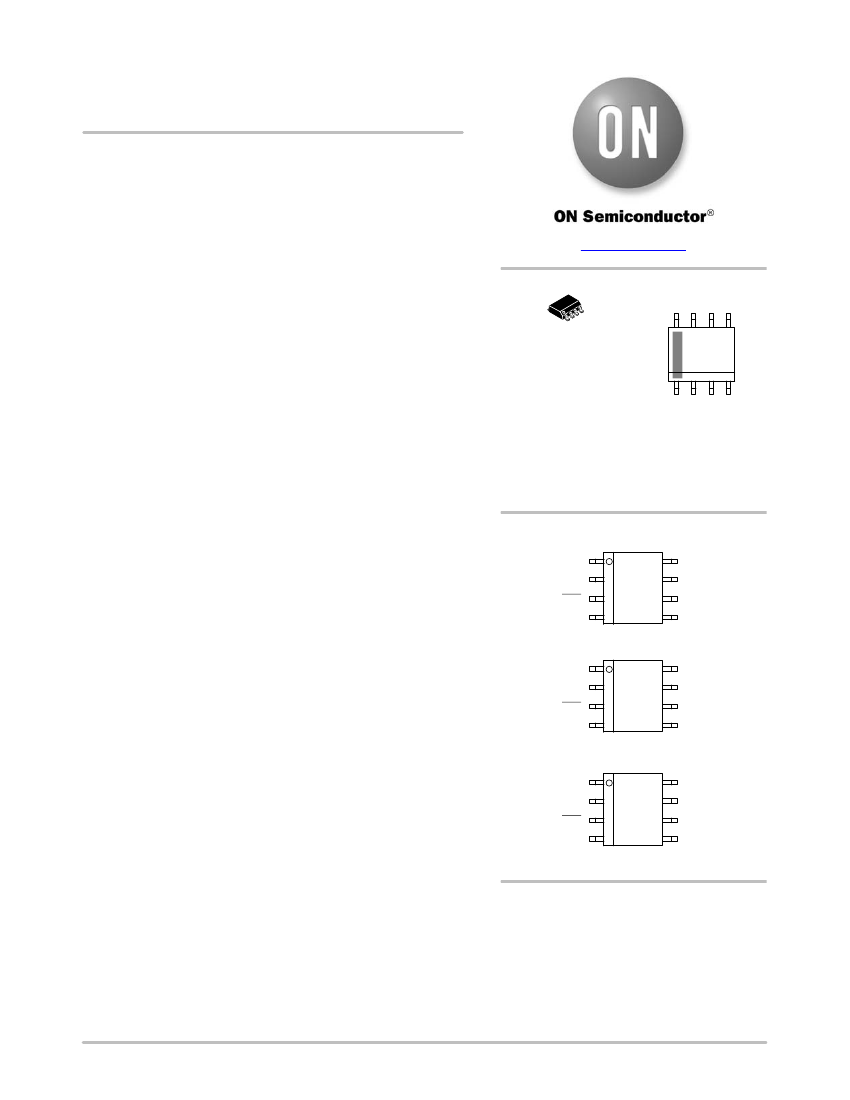

NCD5703A, NCD5703B,
NCD5703C
High Current IGBT Gate
Drivers
The NCD5703A, NCD5703B and NCD5703C are high−current,
high−performance stand−alone IGBT drivers for high power
applications that include solar inverters, motor control and
uninterruptible power supplies. The devices offer a cost−effective
solution by eliminating external output buffer. Devices protection
features include accurate Under−voltage−lockout (UVLO),
desaturation protection (DESAT) and Active open−drain FAULT
output. The drivers also feature an accurate 5.0 V output. The drivers
are designed to accommodate a wide voltage range of bias supplies
including unipolar and NCD5703B even bipolar voltages.
Depending on the pin configuration the devices also include Active
Miller Clamp (NCD5703A) and separate high and low (V
OH
and V
OL
)
driver outputs for system design convenience (NCD5703C).
All three available pin configuration variants have 8−pin SOIC
package.
Features
www.onsemi.com
8
1
SOIC−8
D SUFFIX
CASE 751
8
MARKING
DIAGRAM
NCD5703X
ALYW
G
1
NCD5703 = Specific Device Code
X
= A, B or C
A
= Assembly Location
L
= Wafer Lot
Y
= Year
W
= Work Week
G
= Pb−Free Package
•
•
•
•
•
•
•
•
High Current Output (+4/−6 A) at IGBT Miller Plateau voltages
Low Output Impedance for Enhanced IGBT Driving
Short Propagation Delay with Accurate Matching
Direct Interface to Digital Isolator/Opto−coupler/Pulse Transformer
for Isolated Drive, Logic Compatibility for Non−isolated Drive
DESAT Protection with Programmable Delay
Tight UVLO Thresholds for Bias Flexibility
Wide Bias Voltage Range
This Device is Pb−Free, Halogen−Free and RoHS Compliant
PIN CONNECTIONS
1
8
VIN
VREF
FLT
DESAT
2
3
4
7
6
5
CLAMP
GND
VO
VCC
NCD5703A
1
8
VIN
VREF
FLT
DESAT
2
3
4
7
6
5
VEE
GND
VO
VCC
NCD5703A Features
•
Active Miller Clamp to Prevent Spurious Gate Turn−on
NCD5703B Features
•
Negative Output Voltage for Enhanced IGBT Driving
1
NCD5703B
8
NCD5703C Features
VIN
VREF
FLT
DESAT
2
3
4
7
6
5
GND
VOL
VOH
VCC
•
Separate Outputs for V
OL
and V
OH
Typical Applications
•
•
•
•
Solar Inverters
Motor Control
Uninterruptible Power Supplies (UPS)
Rapid Shutdown for Photovoltaic Systems
NCD5703C
ORDERING INFORMATION
See detailed ordering and shipping information on page 9 of
this data sheet.
©
Semiconductor Components Industries, LLC, 2018
1
January, 2018 − Rev. 0
Publication Order Number:
NCD5703/D
