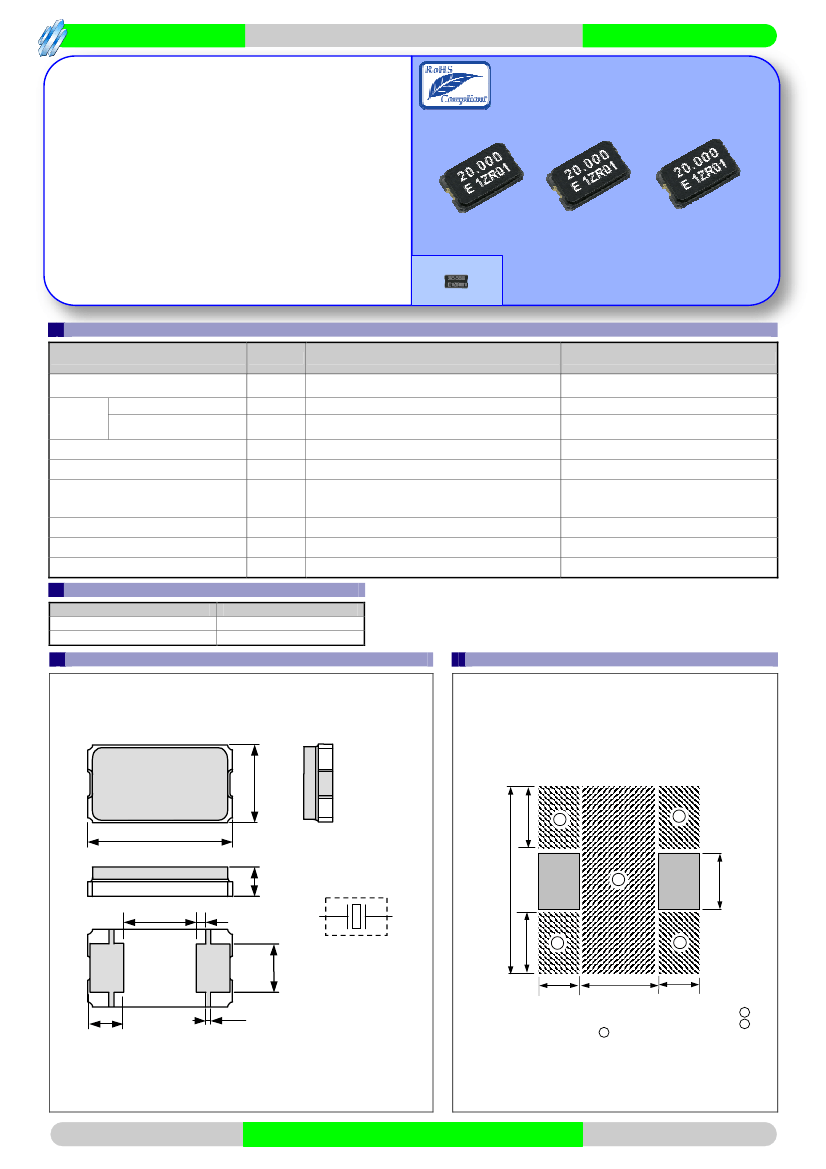

Crystal unit
Epson Toyocom
Product Number (please contact us
)
Q22FA3650xxxx00
MHz RANGE CRYSTAL UNIT
LOW PROFILE SMD
FA - 365
•Frequency
range
•External
dimensions
•Overtone
order
•Applications
:
12 MHz,14 MHz to 41 MHz
:
6.0 × 3.5 × 1.4 t (mm)
:
Fundamental
:
For Clock of integrated circuit
Actual size
Specifications (characteristics)
Item
Nominal frequency range
Storage temperature
Temperature
range
Operating temperature
Level of drive
Frequency tolerance (standard)
Frequency versus
temperature characteristics
(standard)
Load capacitance
Motional resistance (ESR)
Frequency aging
Symbol
f_nom
T_stg
T_use
DL
f_tol
f_tem
CL
R1
f_age
Specifications
12.000 MHz, 14.000 MHz to 41.000 MHz
-55
°C
to +125
°C
-20
°C
to +70
°C
10
µW
to 100
µW
±50 ×
10
-6
,
±100 ×
10
-6
±30 ×
10
-6
Remarks
Fundamental
Store as bare product after unpacking
Please contact us on availability of
-40
°C
to +85
°C
+25
°C
-20
°C
to +70
°C
For the out of standard specifications,
please contact us for inquires
Please specify
-20
°C
to +70
°C,
DL=100 µW
+25
°C,
First year
10 pF to
∞
As per below table
±5 ×
10
-6
/ year Max.
Motional resistance (ESR)
Frequency
12.0 MHz
14.0 MHz
≤
f_nom
≤
41.0 MHz
Motional resistance
60
Ω
Max.
50
Ω
Max.
(Unit:mm)
External dimensions
Footprint (Recommended)
(Unit:mm)
#1
20.000
E 1ZR01
6.0±0.2
#2
3.5±0.2
1.15
1
2
1.4 Max.
3.0
0.4
#1
#2
1.15
4.7
Internal Connection
(TOP VIEW)
A
1
2
#1
1.4
#2
0.2
2.0
1.9
2.6
1.9
Only the pattern which connects with land A is allowed in area
1
.
Only the pattern which connects with land B is allowed in area
2
.
No pattern is allowed in area
3
.
