177200077402005 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 177200077402005

177200077402005: DescriptionBoard Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size118KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

177200077402005 Overview

Board Connector, 77 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, ROHS COMPLIANT

177200077402005 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Other features	22 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	7200
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	77
Base Number Matches	1

Preview

Download Datasheet

View All

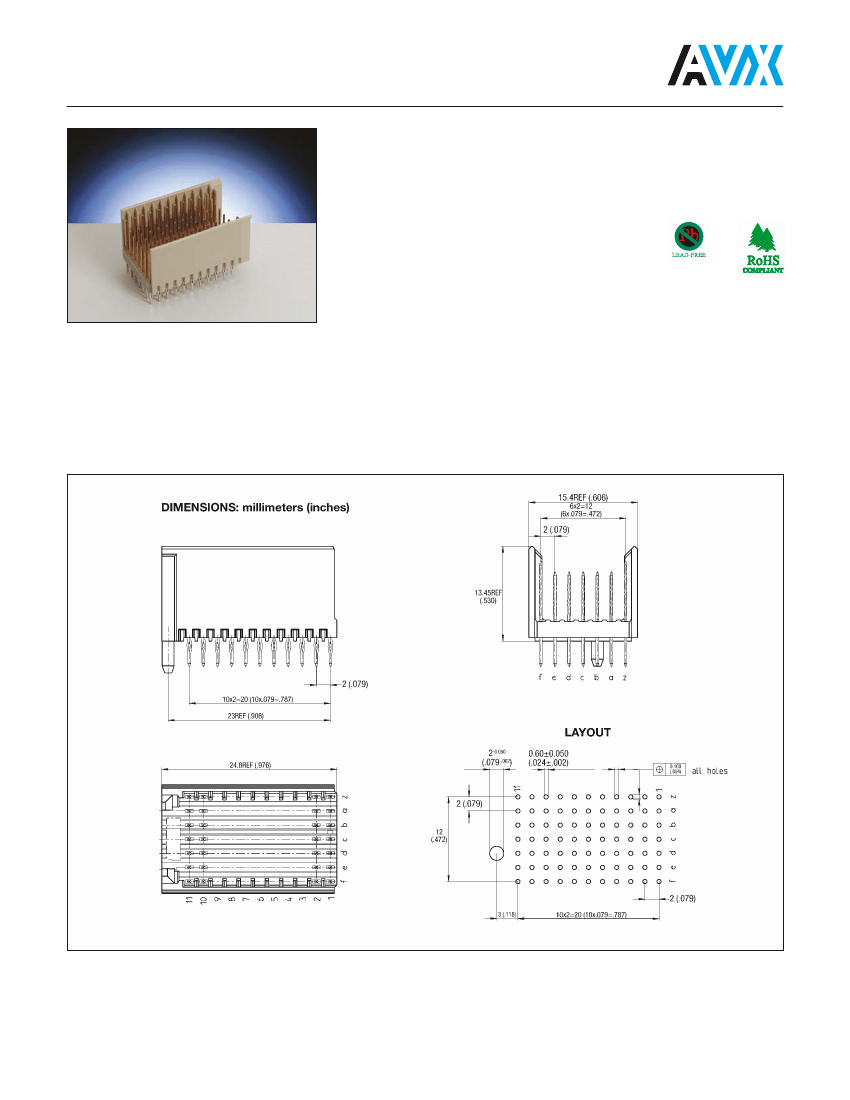

Vertical Male

Series 7200 – Style C 11, 77 Contacts

• Up to 55 signal contacts and 22 ground shield contacts in 5 or 5+2 rows of

11 positions

• This connector is designed for end positions only

• Designed for gas tight press-fit installations

• Twelve different contact styles are available for customizing connector to

exact specifications (complete form on page 57)

• This connector should be used in conjunction

with a Style A or AB connector

LEAD-FREE COMPATIBLE

COMPONENT
