17-7200-077-404-005: Description55 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG; CategoryThe connector The connector; File Size60KB，2 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric Compare View All

17-7200-077-404-005 Overview

55 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG

17-7200-077-404-005 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	PICMG, STANDARD: IEC 61076-4-101, SHROUDED, 22 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE
Board mount options	POSITIONING PIN
body width	0.606 inch
subject depth	0.53 inch
body length	0.976 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.7228 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	7200
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	31u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	55
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

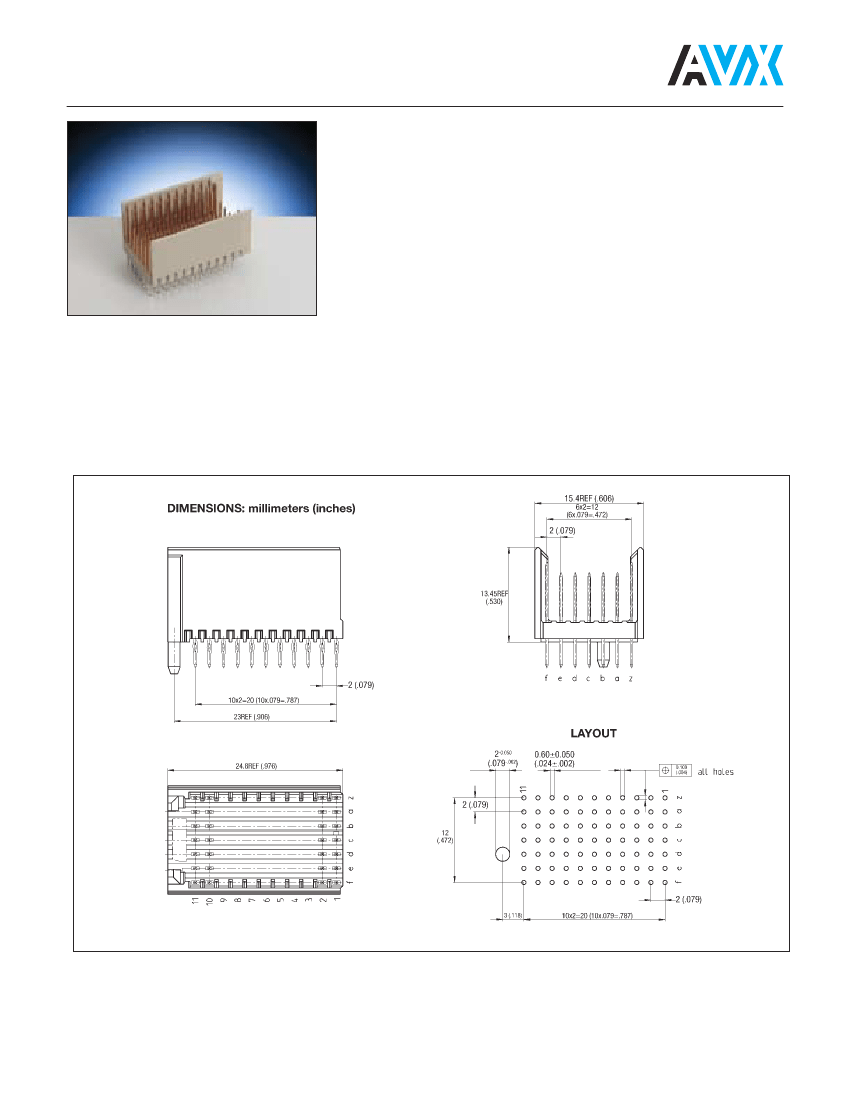

Vertical Male

Style C 11 – 77 Contacts Series 7200

• Up to 55 signal contacts and up to 22 ground shield contacts in 5 or 5+2

rows of 11 positions

• This connector is designed for end positions only

• Designed for gas tight press-fit installations

• Twelve different contact styles are available for customizing connector to

exact specifications (complete form on page 59)

• This connector should be used in conjunction with a Style A connector

ELCO

39

17-7200-077-404-005 Related Products

	17-7200-077-404-005	17-7200-077-400-002	17-7200-077-401-002	17-7200-077-402-005	17-7200-077-403-005
Description	55 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG	55 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG	55 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG	55 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG	55 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, PRESS FIT, PLUG
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compli
Other features	PICMG, STANDARD: IEC 61076-4-101, SHROUDED, 22 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE	PICMG, STANDARD: IEC 61076-4-101, SHROUDED, 22 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE	PICMG, STANDARD: IEC 61076-4-101, SHROUDED, 22 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE	PICMG, STANDARD: IEC 61076-4-101, SHROUDED, 22 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE	PICMG, STANDARD: IEC 61076-4-101, SHROUDED, 22 GROUND SHIELD CONTACTS IN 2 ROWS ALSO AVAILABLE
Board mount options	POSITIONING PIN	POSITIONING PIN	POSITIONING PIN	POSITIONING PIN	POSITIONING PIN
body width	0.606 inch	0.606 inch	0.606 inch	0.606 inch	0.606 inch
subject depth	0.53 inch	0.53 inch	0.53 inch	0.53 inch	0.53 inch
body length	0.976 inch	0.976 inch	0.976 inch	0.976 inch	0.976 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles	250 Cycles
Filter function	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES
maximum insertion force	.7228 N	.7228 N	.7228 N	.7228 N	.7228 N
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	7200	7200	7200	7200	7200
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	7	7	7	7	7
Number of rows loaded	5	5	5	5	5
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	31u inch	31u inch	31u inch	31u inch	31u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.512 inch	0.139 inch	0.139 inch	0.571 inch	0.63 inch
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	55	55	55	55	55
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.139 N	.139 N	.139 N	.139 N	.139 N
Base Number Matches	1	1	1	1	1
