223BM2VBBR: DescriptionSWITCH TACTILE SPST-NO 0.05A 12V; Categoryaccessories; File Size85KB，3 Pages; ManufacturerCTS [CTS Corporation]; Environmental Compliance

Download Datasheet Parametric Compare View All

223BM2VBBR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	223BM2VBBR	-	-	View	Buy Now

223BM2VBBR Overview

SWITCH TACTILE SPST-NO 0.05A 12V

223BM2VBBR Parametric

Parameter Name	Attribute value
circuit	SPST-NO
switch function	Off - instantaneous
Contact rated current at different voltages	0.05A @ 12VDC
Actuator type	dome button
Installation type	surface mount
Actuator PCB height, vertical	1.00mm
Actuator length, right angle	-
Actuator direction	top touch
Terminal type	gullwing
shape	4.50mm x 4.50mm
illumination	Not glowing
lighting type, color	-
Lighting voltage (nominal)	-
force	260gf
Intrusion protection	-
characteristic	touch feedback
Operating temperature	-40°C ~ 85°C
Actuator material	-
Switching stroke	0.20mm
Mechanical life	200,000 cycles

Preview

Download Datasheet

View All

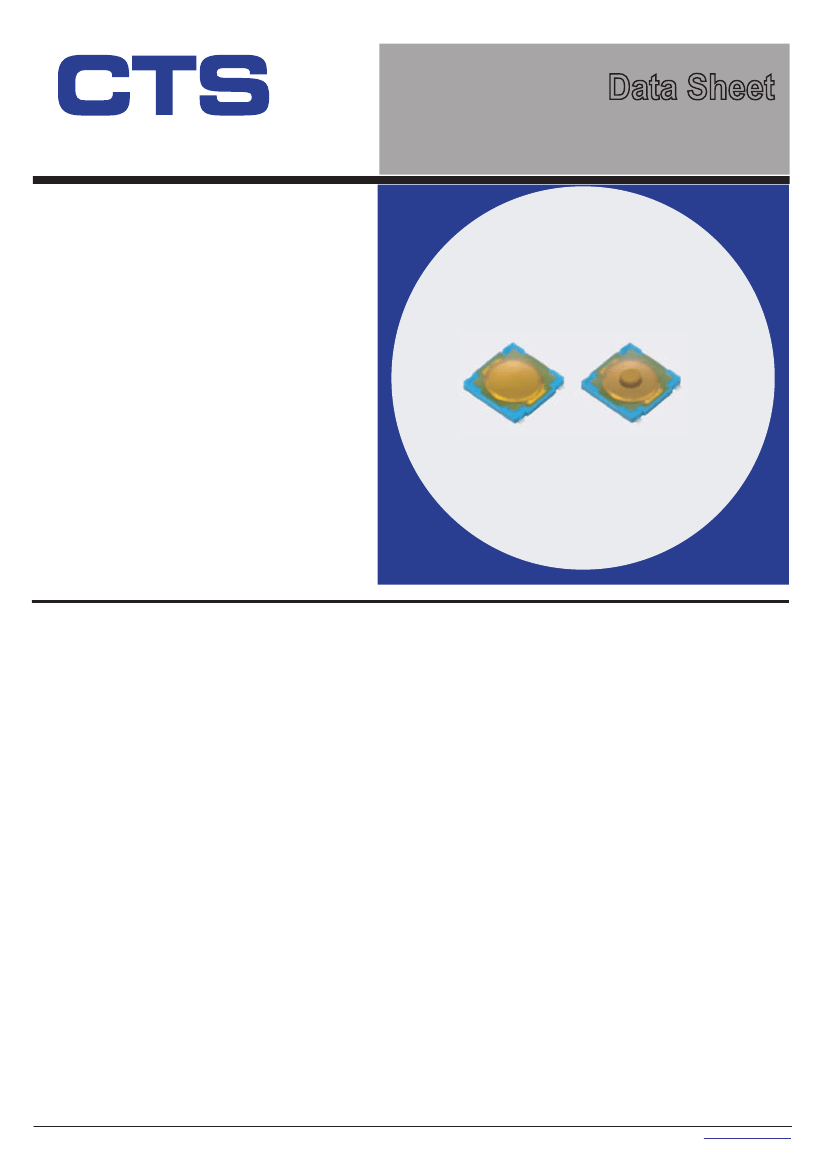

Electrocomponents

4.5 x 4.5mm Compact

Tactile Switch

Features

Optimized Mechanical Features

• Surface mount gull-wing terminal configuration

• Compatible with IR reflow and manual soldering

• Variety of operating force & actuator height options

Series 223B

Data Sheet

Tactile Switch

Optimized Contact System

• Excellent tactile feedback

Materials

• Silver coated terminals for better solderability

• High temperature materials (UL94V-0)

• RoHS compliant

Electrical and Mechanical Specifications

Switch Contact Resistance

100 milliohms maximum

Insulation Resistance

100 Megohms minimum between

terminals

Maximum Rating

50 mA 12 VDC

Dielectric Strength

250 VAC for 1 minute between adjacent

terminals

Operating Force

100, 160 gf or 260 gf

Travel

0.2

+0.15

-0.1

Operating Temperature

- 40°C to +85°C

Storage Temperature

- 40°C to +85°C

Actuator Strength

3 Kgf maximum

Actuation Life

100 gf: 1,000,000 cycles ( flat surface), 500,000 cycles (button)

160 gf: 1,000,000 cycles ( flat surface), 500,000 cycles (button)

260 gf: 200,000 cycles

Allowable Solder Time

IR Reflow: Up to 5 seconds at 260°C.

Manual soldering: Up to 3 seconds at 350°C

Packaging

Standard : Tape and reel packaging with

330mm diameter reel and 12mm wide plastic tape

1-3

CTS Electrocomponents

6/30/15

www.ctscorp.com

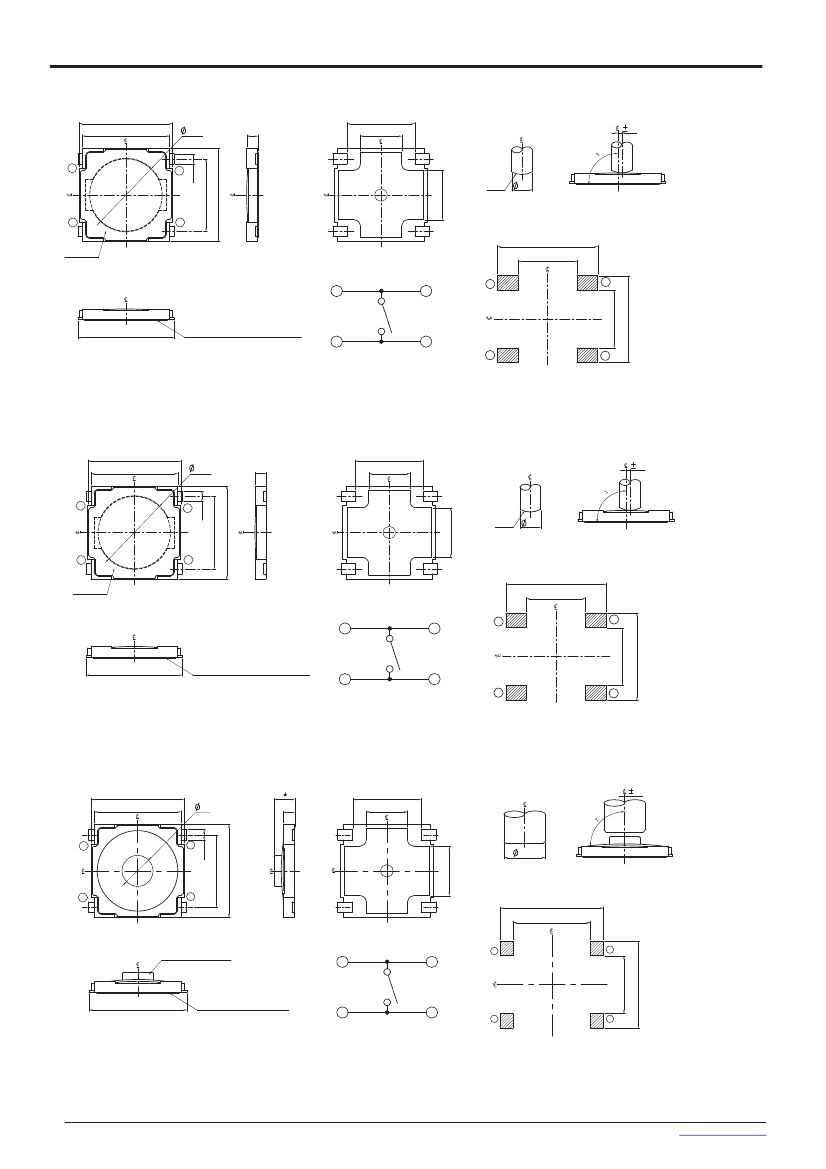

223BM2VBBR Related Products

	223BM2VBBR	223BM1VAAR	223BM1VABR	223BM1VACR	223BM2VAAR	223BM2VABR	223BM2VACR	223BM2VBAR	223BM2VBCR
Description	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V	SWITCH TACTILE SPST-NO 0.05A 12V
circuit	SPST-NO	SPST-NO	SPST-NO	SPST-NO	SPST-NO	SPST-NO	SPST-NO	SPST-NO	SPST-NO
switch function	Off - instantaneous	Off - instantaneous	Off - instantaneous	Off - instantaneous	Off - instantaneous	Off - instantaneous	Off - instantaneous	Off - instantaneous	Off - instantaneous
Contact rated current at different voltages	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC	0.05A @ 12VDC
Actuator type	dome button	dome button	dome button	dome button	dome button	dome button	dome button	dome button	dome button
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
Actuator PCB height, vertical	1.00mm	0.55mm	0.55mm	0.55mm	0.55mm	0.55mm	0.55mm	1.00mm	1.00mm
Actuator direction	top touch	top touch	top touch	top touch	top touch	top touch	top touch	top touch	top touch
Terminal type	gullwing	gullwing	gullwing	gullwing	gullwing	gullwing	gullwing	gullwing	gullwing
shape	4.50mm x 4.50mm	4.50mm x 4.50mm	4.50mm x 4.50mm	4.50mm x 4.50mm	4.50mm x 4.50mm	4.50mm x 4.50mm	4.50mm x 4.50mm	4.50mm x 4.50mm	4.50mm x 4.50mm
illumination	Not glowing	Not glowing	Not glowing	Not glowing	Not glowing	Not glowing	Not glowing	Not glowing	Not glowing
force	260gf	160gf	260gf	100gf	160gf	260gf	100gf	160gf	100gf
characteristic	touch feedback	touch feedback	touch feedback	touch feedback	touch feedback	touch feedback	touch feedback	touch feedback	touch feedback
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Switching stroke	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm	0.20mm
Mechanical life	200,000 cycles	1,000,000 cycles	200,000 cycles	1,000,000 cycles	1,000,000 cycles	200,000 cycles	1,000,000 cycles	500,000 cycles	500,000 cycles
