B360CE-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> B360CE-13

B360CE-13: DescriptionDIODE SCHOTTKY 60V 3A SMC; Categorysemiconductor Discrete semiconductor; File Size357KB，6 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric Compare View All

B360CE-13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B360CE-13	-	-	View	Buy Now

B360CE-13 Overview

DIODE SCHOTTKY 60V 3A SMC

B360CE-13 Parametric

Parameter Name	Attribute value
Diode type	Schottky
Voltage - DC Reverse (Vr) (Maximum)	60V
Current - average rectification (Io)	3A
Voltage at different If - Forward (Vf	650mV @ 3A
speed	Fast recovery = < 500 ns, > 200mA (Io)
Current at different Vr - Reverse leakage current	200µA @ 60V
Capacitance at different Vr, F	110pF @ 4V，1MHz
Installation type	surface mount
Package/casing	DO-214AB，SMC
Supplier device packaging	SMC
Operating Temperature - Junction	-55°C ~ 150°C

Preview

Download Datasheet

View All

Green

B350BE-B360BE

B350CE-B360CE

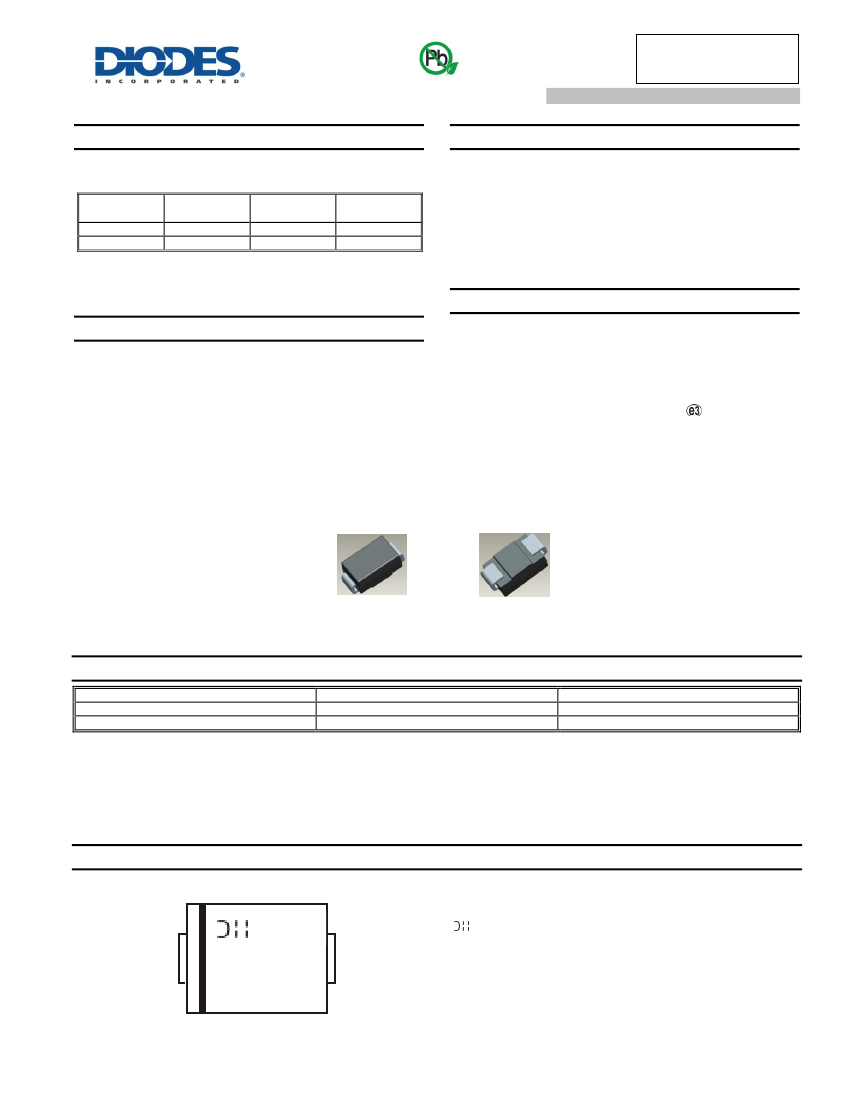

3.0A SCHOTTKY BARRIER RECTIFIER

Product Summary

B350BE/B350CE

B360BE/B360CE

RRM

(V)

(A)

Max (V)

@ +25°

0.65

Max (mA)

@ +25°

0.1

0.2

Features and Benefits



Reduced Low Forward Voltage Drop (V

); Better Efficiency and

Cooler Operation

Reduced High-Temperature Reverse Leakage; Increased

Reliability against Thermal Runaway Failure in High

Temperature Operation

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)



Mechanical Data

Description and Applications

The Schottky rectifier providing low V

and excellent reverse leakage

stability at high temperatures, this device is ideal for use in general

rectification applications such as:



Boost Diode

Blocking Diode

Recirculating Diode



Case: SMB, SMC

Case Material: Molded Plastic, ―Green‖ Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Annealed over Copper Leadframe.

Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band

Weight: SMB- 0.093 grams (Approximate)

SMC- 0.21 grams (Approximate)

SMB/SMC

Top View

Bottom View

Ordering Information

(Note 4)

Part Number

B3XXBE-13

B3XXCE-13

Notes:

Case

SMB

SMC

Packaging

3,000/Tape & Reel

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green‖ products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SMB

YWW

B3XXBE

B3XXBE = Product Type Marking Code, ex: B350BE

= Manufacturers’ Code Marking

YWW = Date Code Marking

Y = Last Digit of Year (ex: 7 for 2017)

WW = Week Code (01 to 53)

B350BE-B360BE/B350CE-B360CE

Document number: DS38419 Rev. 2 - 2

1 of 6

www.diodes.com

April 2017

B360CE-13 Related Products

	B360CE-13	B360AE-13	B350CE-13	B350BE-13	B360BE-13
Description	DIODE SCHOTTKY 60V 3A SMC	DIODE SCHOTTKY 60V 2A SMA	DIODE SCHOTTKY 50V 3A SMC	DIODE SCHOTTKY 50V 3A SMB	DIODE SCHOTTKY 60V 3A SMB
Diode type	Schottky	Schottky	Schottky	Schottky	Schottky
Voltage - DC Reverse (Vr) (Maximum)	60V	60V	50V	50V	60V
Current - average rectification (Io)	3A	2A	3A	3A	3A
Voltage at different If - Forward (Vf	650mV @ 3A	650mV @ 2A	650mV @ 3A	650mV @ 3A	650mV @ 3A
speed	Fast recovery = < 500 ns, > 200mA (Io)	Fast recovery = < 500 ns, > 200mA (Io)	Fast recovery = < 500 ns, > 200mA (Io)	Fast recovery = < 500 ns, > 200mA (Io)	Fast recovery = < 500 ns, > 200mA (Io)
Current at different Vr - Reverse leakage current	200µA @ 60V	200µA @ 60V	100µA @ 50V	100µA @ 50V	200µA @ 60V
Capacitance at different Vr, F	110pF @ 4V，1MHz	125pF @ 4V，1MHz	110pF @ 4V，1MHz	110pF @ 4V，1MHz	110pF @ 4V，1MHz
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount
Package/casing	DO-214AB，SMC	DO-214AC，SMA	DO-214AB，SMC	DO-214AA，SMB	DO-214AA，SMB
Supplier device packaging	SMC	SMA	SMC	SMB	SMB
Operating Temperature - Junction	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C	-55°C ~ 150°C
