TYS30122R2N-10 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> TYS30122R2N-10

Preview

TYS30122R2N-10: DescriptionFIXED IND 2.2UH 1.55A 75 MOHM; CategoryPassive components; File Size117KB，1 Pages; ManufacturerLaird Technologies; Environmental Compliance

Download Datasheet Parametric View All

TYS30122R2N-10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TYS30122R2N-10	-	-	View	Buy Now

TYS30122R2N-10 Overview

FIXED IND 2.2UH 1.55A 75 MOHM

TYS30122R2N-10 Parametric

Parameter Name	Attribute value
type	-
Material - Core	-
inductance	2.2µH
Tolerance	±30%
Rated current	1.55A
Current - saturation value	1.2A
shield	shield
DC resistance (DCR)	75 milliohms max.
Q value at different frequencies	-
Frequency - Self-resonance	84MHz
grade	-
Operating temperature	-40°C ~ 125°C
Inductor Frequency - Test	100kHz
Installation type	surface mount
Package/casing	non-standard
Supplier device packaging	0504 (1211 Metric)
size/dimensions	0.118" long x 0.118" wide (3.00mm x 3.00mm)
Height - Installation (maximum)	0.047"（1.20mm）

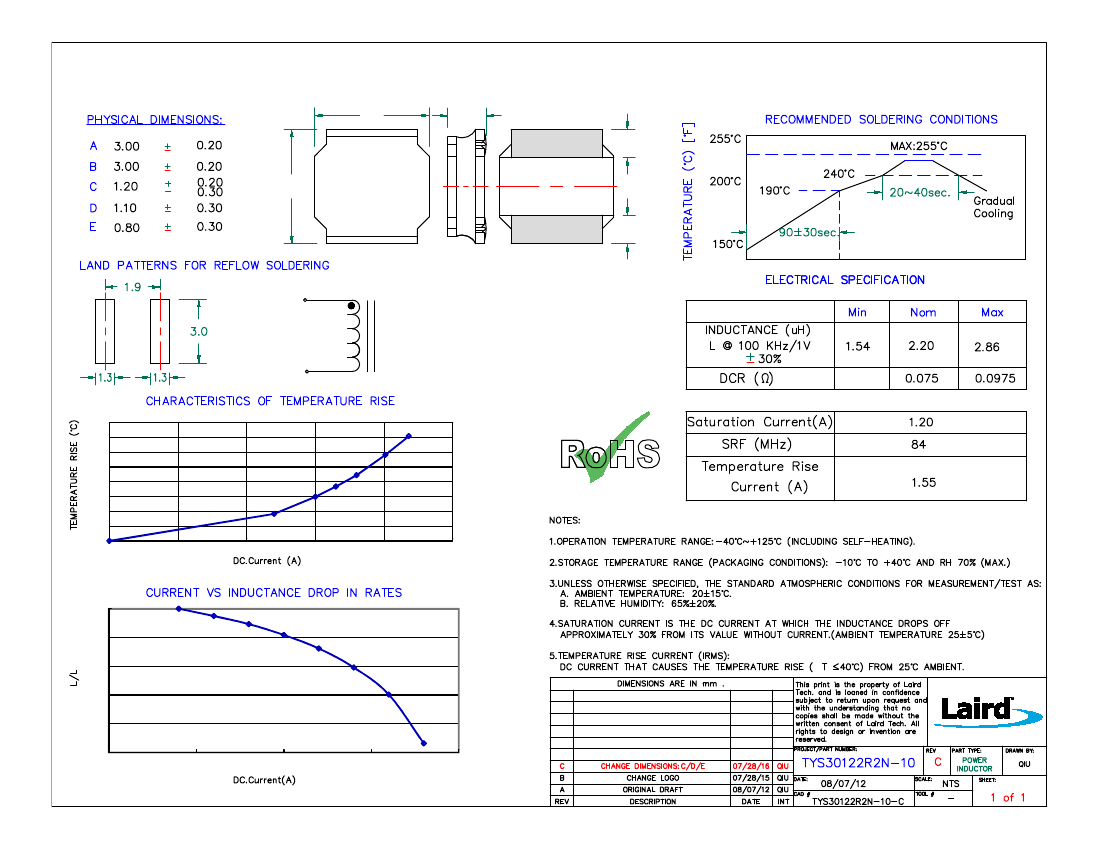

Preview

Download Datasheet

View All

TYS30122R2N-10

A

C

D

B

E

D

1

2

80

70

60

50

40

30

20

10

0

0.0

0.5

1.0

1.5

2.0

2.5

0%

-5%

-10%

-15%

-20%

-25%

0.00

0.50

1.00

1.50

2.00
