Extended Temp High Reliability Crystal
Model: FXA7050_G Series
Page 1 of 2
RoHS Compliant
Rev. 2/27/2009
http://www.foxonline.com/need_a_sample.htm
FEATURES
• Meets AEC-Q200 Requirements
• 1.8mm Height
• Tape and Reel (1,000 pcs. STD)
• PART NUMBER
Learn More - Internet Required
Part Number
825AG-Frequency-xxxxx
825BG-Frequency-xxxxx
Model Number
FXA7050AG
FXA7050BG
Frequency Range (MHz)
4.000 MHz, 5.000 ~ 40.000 MHz
4.000 MHz, 5.000 ~ 40.000 MHz
• STANDARD SPECIFICATIONS
PARAMETERS
Frequency
Frequency Tolerance @ 25ºC
Frequency Stability @ 25ºC
4.000MHz / -40 ~ +125ºC
4.000MHz / -40 ~ +85ºC
5.000~40.000MHz / -40 ~ +125ºC
5.000~40.000MHz / -40 ~ +85ºC
Temperature Range
Operating (T
OPR
)
Storage
(T
STG
)
Shunt Capacitance (C
O
)
Load Capacitance (C
l
)
Drive Level
Aging per year
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
Seal Method
Frequency Range
(MHz)
4.000
5.000 ~ 7.999999
8.000 ~ 9.999999
10.000 ~ 40.000000
MAX
(unless otherwise noted)
4.000 MHz, 5.000 ~ 40.000 MHz
±30 PPM, ±50 PPM
±150 PPM
±100 PPM
±100 PPM
±50 PPM
-40ºC ~ +125ºC
-40ºC ~ +125ºC
5pF
8pF~Series
100µW
±5 PPM
260ºC / 10 Seconds
1
Au
Glass
Max ESR
Ω
500
300
200
100
See dimensional drawings on page 2.
Operating Mode
Fundamental
Fundamental
Fundamental
Fundamental
Note: Dimensional drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, etc. may vary.
The above specifications, having been carefully prepared and checked, are believed to be accurate at the time
of publication; however, no responsibility is assumed by Fox Electronics for inaccuracies.
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |
Japan
Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
Extended Temp High Reliability Crystal
Model: FXA7050_G Series
Page 2 of 2
RoHS Compliant
Rev. 2/27/2009
http://www.foxonline.com/need_a_sample.htm

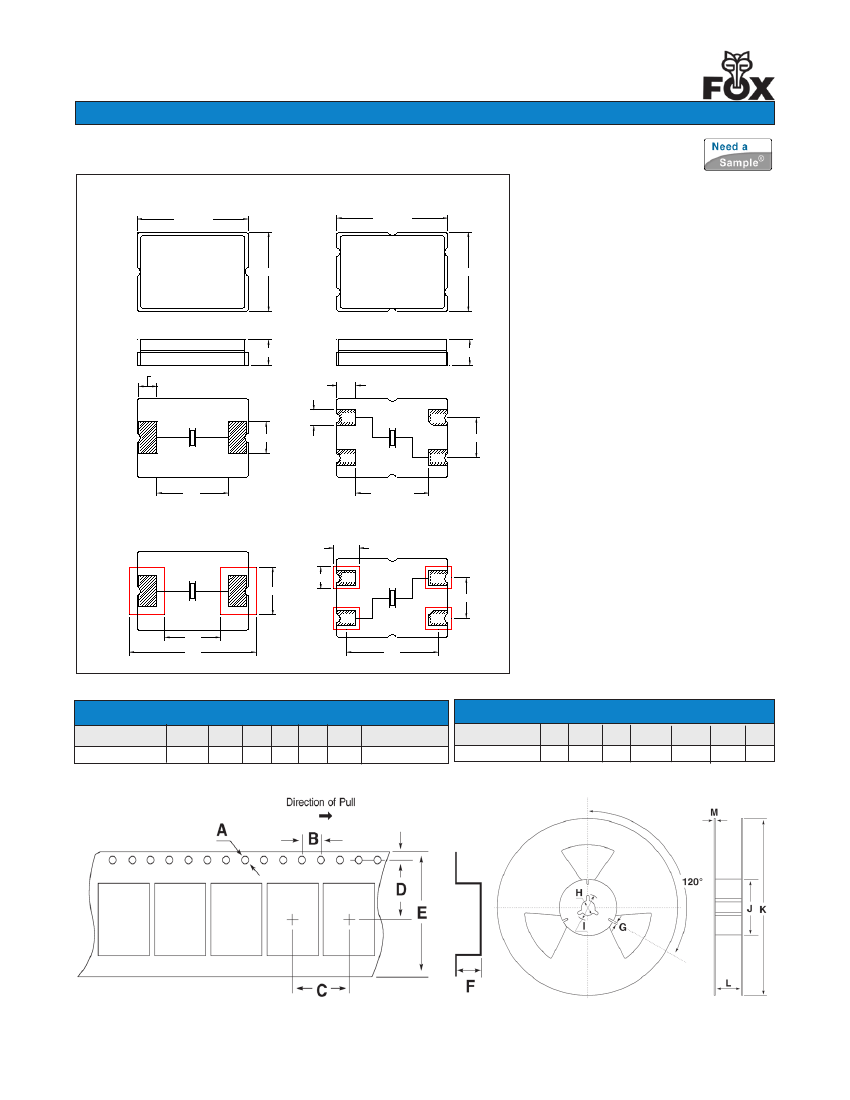

FXA7050AG
7.2 Max
#4
FXA7050BG
7.2 Max
#3
Top
View
5.2 Max
5.2 Max
#1
#2
1.8 Max
1.15±0.2
1.2
1.0±0.15 #1
#2
1.8 Max
Bottom
View
2.0±0.2
#4
#3
2.54±0.15
4.5
4.6±0.13
Recommended Solder Pad Layouts
1.6
1.4
3.0
#1
#2
5.8
#4
#3
2.54
3.5
8.0
All dimensions are in millimeters.
• TAPE SPECIFICATIONS
(millimeters)
• REEL SPECIFICATIONS
(millimeters)
G
I
J
K
L
H
M
B C D E
F
STD Reel QTY
MODEL
MODEL
A
FXA7050_G
2.0
∅13 ∅21 ∅62.2 ∅178
16.5 1.5
1,000
FXA7050_G
∅1.55
4.0 8.0 7.5 16.0 1.9
