Flush-type connector - SACC-DSI-FSD-4CON-L180/SH RD - 1457966
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

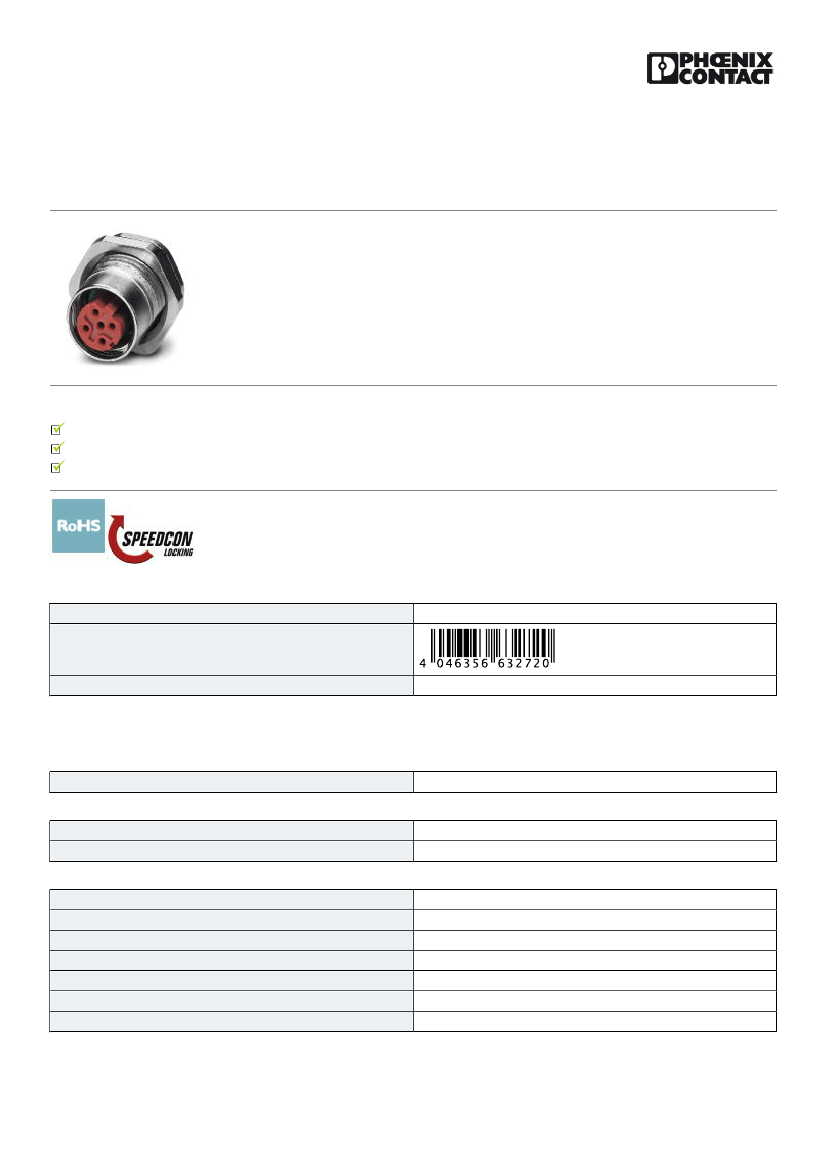

Sensor/actuator flush-type plug, 4-pos., M12 SPEEDCON, D-coded, with red contact carrier, rear/screw
mounting with M16 thread, with straight solder connection
Why buy this product
Easy PCB assembly: one-piece connectors for wave soldering
All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
For high transmission reliability: optional shield connection to the housing by means of shield contact
Key Commercial Data
Packing unit
GTIN
GTIN
4046356632720
20 pc
Technical data
Dimensions
Length of the solder pin
6 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-20 °C ... 60 °C (cable, fixed installation)
IP67
General
Rated current at 40°C
Rated voltage
Rated surge voltage
Number of positions
Insulation resistance
Coding
Status display
4A
250 V
2.5 kV
4
≥ 100 MΩ
D - data
No
10/02/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1457966
Flush-type connector - SACC-DSI-FSD-4CON-L180/SH RD - 1457966
Technical data
General
Overvoltage category
Degree of pollution
Connection method
Torque
Mounting type
II
3
Solder pins
3 Nm ... 4 Nm (Installation-side)
Rear mounting Pg9 With flat nut
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material, knurls
Sealing material
V0
CuZn
Au
PA 6.6
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Flammability rating according to UL 94
V0
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings

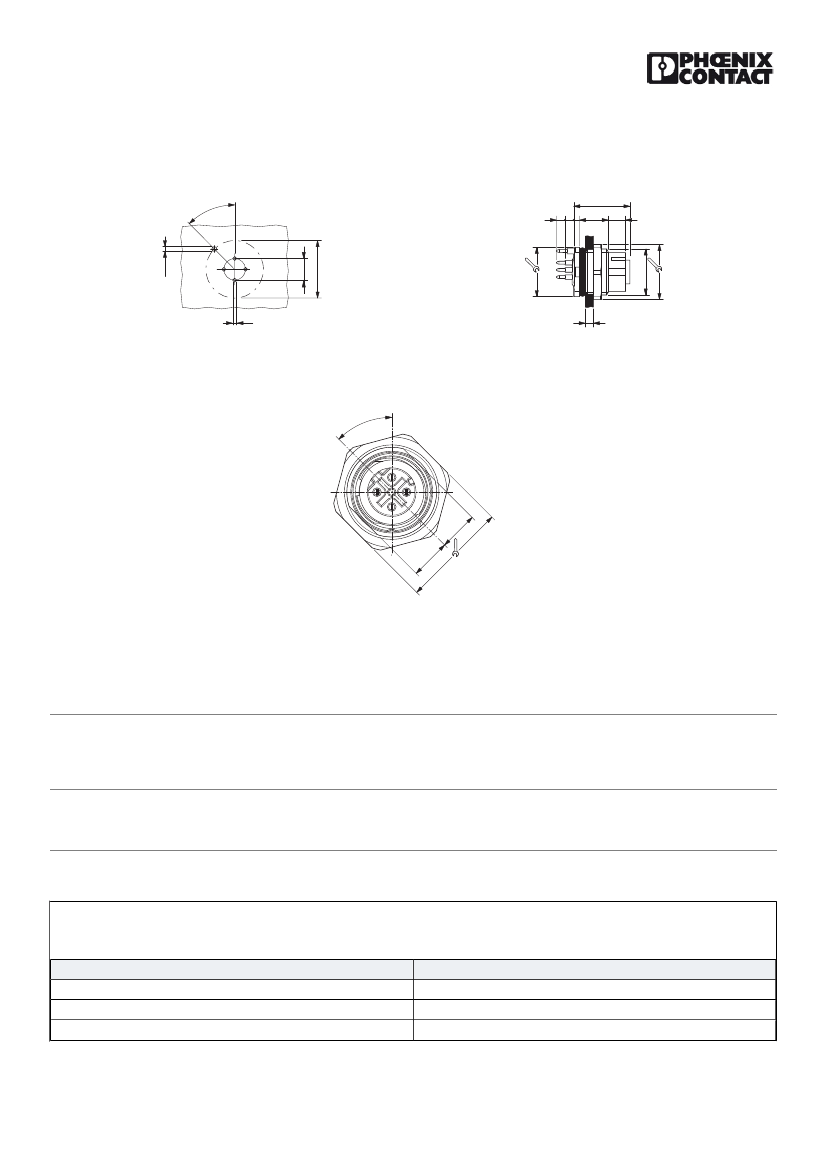

Dimensional drawing
≤
4,5
Schematic diagram
Ø16,1
13,5
+0,1
Pin assignment M12 socket, 4-pos., D-coded, female side
Housing cutout for M16 fastening thread, mounting panel with feed-
through hole (alternatively with area as anti-rotation protection for panel
thicknesses > 2 mm up to max. 4.5 mm)
10/02/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1457966
Flush-type connector - SACC-DSI-FSD-4CON-L180/SH RD - 1457966
Drilling diagram
45°
Dimensional drawing
19,5
3 32
10
6
M16x1,5
max. 4,5
Ø14,6
Ø1,2
Ø5
Ø1,2
M12 flush-type connector
Dimensional drawing
45°
6,
8
M12 front view
Approvals
Approvals
Approvals
UL Recognized / cULus Recognized / EAC
Ex Approvals
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
250 V
4A
22
18
6,
6
17
19
FILE E 118976
10/02/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1457966
Flush-type connector - SACC-DSI-FSD-4CON-L180/SH RD - 1457966
Approvals
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E221474-20140616
250 V
4A
22-20
EAC
B.01742
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/02/2018 Page 4 / 4
