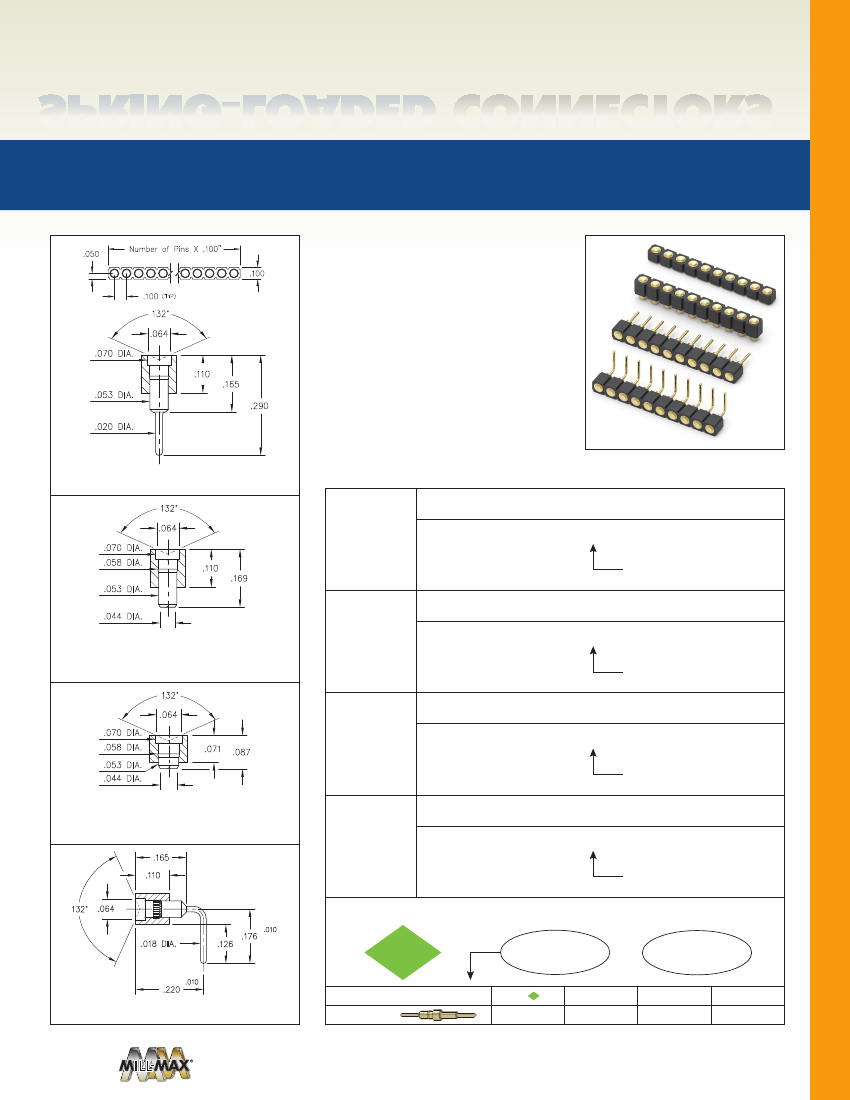

SPRING-LOADED
CONNECTORS
SERIES 319, 399 • .100” GRID CONCAVE FACE TARGET CONNECTORS
FOR SPRING-LOADED ASSEMBLIES • SINGLE ROW STRIPS
• Series 319 and 399 Spring Target Connectors,
supplied in single row strips. Available in SMT
and right angle through-hole termination
configurations
• Target Connectors provide an excellent gold-
plated conductive mating surface for spring
loaded connectors. These series are offered
with a concave face for making contact with
our standard .042” dia. spring pin plungers
.165
.290
.020 DIA.
.050
Number of Pins X .100"
.100
.100
132°
.064
.070 DIA.
.110
.053 DIA.
• Target connectors use MM #1948, #1955, #1957
and #1960 pins. See pages 223.1, 223.2 and
223.3 for details
• Insulators are high temperature thermoplastic
FIG. 1
132°
.064
ORDERING INFORMATION
Series 319...006
Standard Solder Tails
319-10-1_ _-00-006000
Specify number of pins
01-64
.070 DIA.
.058 DIA.
.053 DIA.
.044 DIA.
.110
.169
FIG. 1
Series 319...007
Surface Mount
319-10-1_ _-30-007000
Coplanarity .005”. For Pin counts >10 positions, consult
Technical Support.
FIG. 2
Series 319...055
FIG. 2
132°
.064
Specify number of pins
01-64
Low Profile Surface Mount
319-10-1_ _-30-055000
.070 DIA.
.058 DIA.
.053 DIA.
.044 DIA.
.071
.087
Specify number of pins
01-64
Coplanarity .005”. For Pin counts >10 positions, consult
Technical Support.
FIG. 3
.165
Series 399...007
Right Angle Solder Tails
399-10-1_ _-10-007000
FIG. 4
.110
Specify number of pins
01-64
132° .064
.176
±
.010
.018 DIA.
.126
2011/65/EU
.220
RoHS - 2
XX=Plating Code
See Below
10
10
μ”
Au
For
Electrical, Mechanical
& Enviromental Data,
See page 264
±
.010
FIG. 4
SPECIFY PLATING CODE XX=
Pin Plating
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 20.2 | SPRING-LOADED CONNECTORS
