NOTES:
1.
2.
PACKAGE INDIVIDUALLY IN HEAT SEALED BAG. TAG IN BAG WITH "AMPHENOL CONNEX,
CABLE ASSEMBLY TO BE 100% TESTED FOR HI-POT,CONTINUITY,SHORTS AND OPEN.
265103-08-XX.XX AND DATE CODE".
265103-08-XX.XX
DRAWING NO.
THIRD ANGLE PROJ.
REV
DESCRIPTION
REVISIONS
DATE
ECO
APPR
A
RELEASE TO MFG.
02-Jun-10
--
CL
LENGTH "L" (SEE TABLE)
1
3
4
TYP(2)
2
LENGTH TABLE
PART NUMBER
265103-08-06.00
265103-08-12.00
265103-08-24.00
265103-08-36.00
LENGTH (IN.)
6.000" 0.150"
12.000"
24.000"
36.000"
0.150"
0.250"
0.500"
DESIGN REQUIREMENTS:
FREQUENCY____________ TO ________________ GHz
VSWR ____________ : 1 MAX
INS. LOSS ____________ dB MAX
X
CONTINUITY
X
HI-POT : 500 VRMS
OTHER
009-954-341
009-881-240
262100
262102
PART NUMBER
A/R
A/R
1
1
QTY
4
3
2
1
ITEM
HEAT SHRINK TUBE
RG-178/U COAX CABLE
MMCX STR CRIMP PLUG
MMCX R/A CRIMP PLUG
DESCRIPTION
BLACK
BLACK
FINISH
UNLESS OTHERWISE SPECIFIED, DIMENSIO
NS ARE IN INCHES AND TOLERANCES ARE:
2 PLACE DECIMAL
3 PLACE DECIMAL
ANGLES
.015 (0,381 mm)
.005 (0,127 mm)
1
NOTICE - These drawings, specificati
property of Amphenol Corp. (2) must
confidential and not to be disclosed
are given by Amphenol Corp. The fur
other data by Amphenol Corp., or to
not to be regarded by implication or
rights or permitting such holder or
product, process or design, patented
or disclosed by said drawings, speci
ons, or other data (1) are, and rema
be returned upon request; and (3) ar
to any person other than those to w
nishing of these drawings, specifica
any other person to anyone for any p
otherwise in any manner licensing,
any other person to manufacture, use
or otherwise, that may in any way b
fications, or other data.
in the
e
hom they
tions, or
urpose is
granting
or sell any
e related to
MATERIAL
DRAWN
DATE
TITLE
CLEMENT
ENGINEER
REFERENCE
02-Jun-10
DATE
CLEMENT
APPROVED
02-Jun-10
DATE

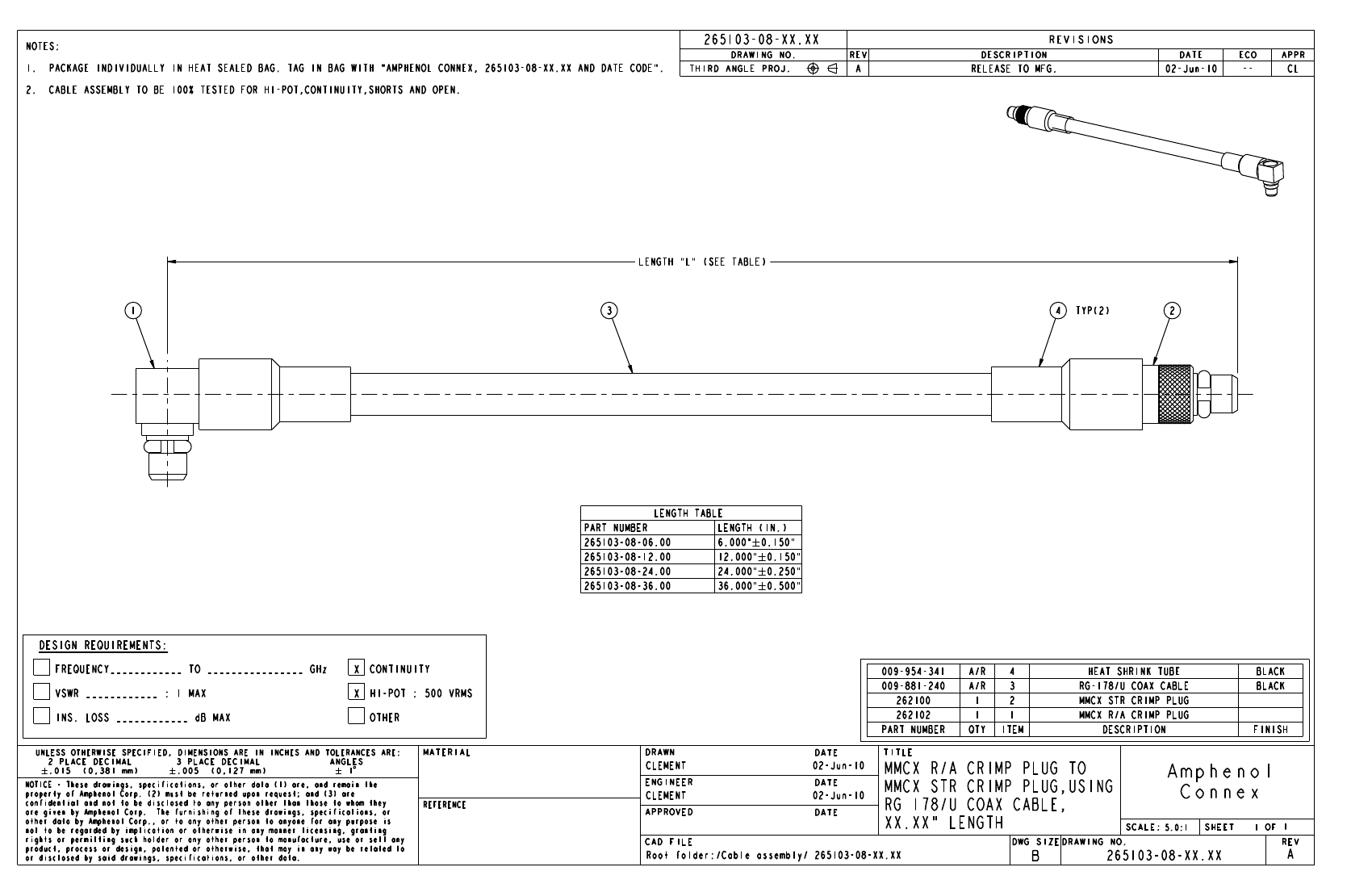

MMCX R/A CRIMP PLUG TO
MMCX STR CRIMP PLUG,USING
RG 178/U COAX CABLE,
XX.XX" LENGTH
DWG SIZE
DRAWING NO.
Amphenol
Connex
SCALE:
5.0:1
SHEET
OF
1
1
REV
CAD FILE
Root folder:/Cable assembly/ 265103-08-XX.XX
B
265103-08-XX.XX
A
