OM13080

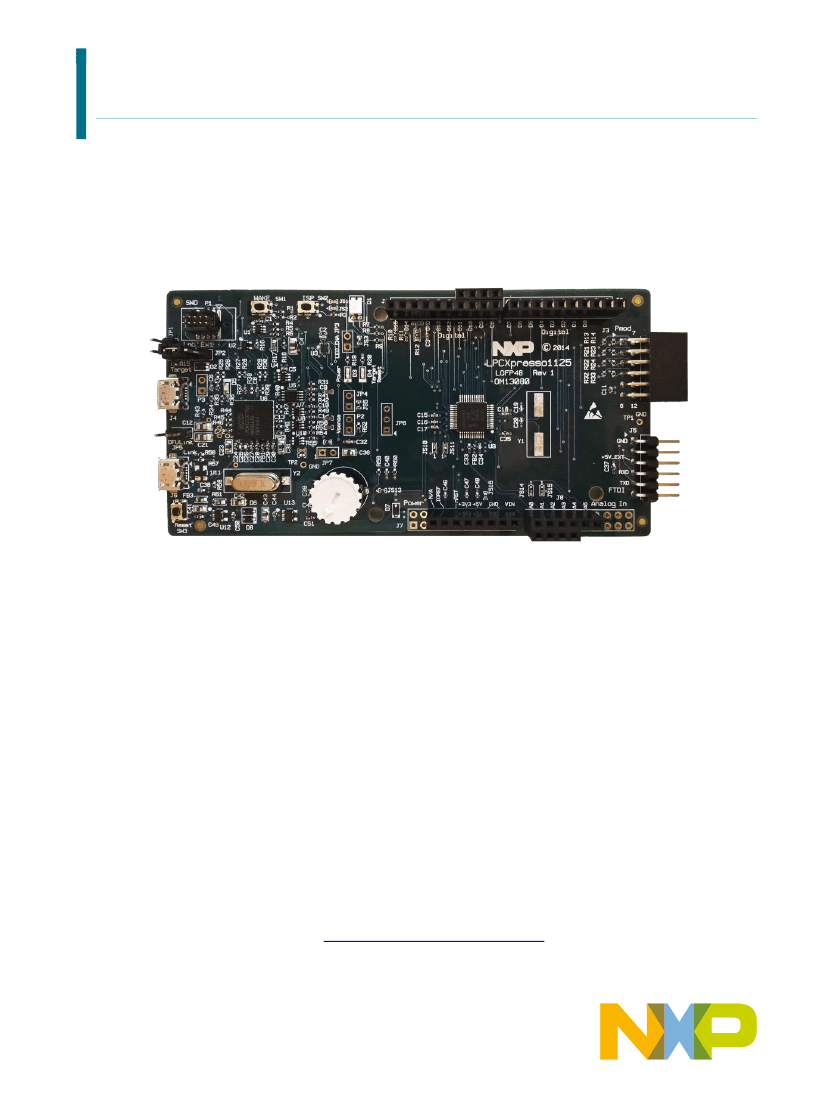

LPCXpresso1125 Board
Rev. 1.01 — 12
th
January 2015
Product Brief
The LPCXpresso™ family of boards provides a powerful and flexible development system for NXP's
Cortex®-M family of MCUs. They can be used with a wide range of development tools, including the
NXP’s LPCXpresso IDE. The LPCXpresso1125 board has been developed by NXP to enable evaluation
of and prototyping with the LPC112x family of MCUs, and is based on the LPC1125JBD48 version of the
MCU.
Feature summary
The LPCXpresso1125 includes the following features:
On-board debug probe compatible with LPCXpresso IDE out-of-the-box, and with other
toolchains via optional firmware including CMSIS-DAP
External debug probe option
Tri-color LED, target Reset, ISP & WAKE buttons for easy testing of software functionality
Expansion options based on Arduino UNO and Pmod™, plus additional expansion port pins
UART, SPI, I²C and GPIO compatible Diligent Pmod connector
FTDI UART connector
Fully supported by LPCXpresso Eclipse-based IDE and GNU C/C++ toolchain
USB Virtual communications port
Target port expansion interface pin compatible with Arduino Rev 3 Shield boards
Target MCU current measurement header
Potentiometer connected to Target ADC
USB Powered
Development Tools
The LPCXpresso1125 Board is fully supported by the LPCXpresso Integrated Development Environment
(IDE), which is available for free at
www.lpcware.com/lpxcpresso/home.
© NXP B.V. 2015.
All rights reserved.
For more information, please visit: http://www.nxp.com
For sales office addresses, please send an email to: salesaddresses@nxp.com
OM13080
LPCXpresso1125 Board
Rev. 1.01 — 12
th
January 2015
Board specifications
Recommended operating conditions: 0 to 70 C ambient
Weight: 1.1 ounces
Size: 4.69 x 2.66 inches including connectors
The LPCXpresso1125 Board is RoHS compliant.
