ADVANCED ENGINEERING
Technical Data Sheet
G EN E R A L P U R P OS E
Tec hni c a l D a ta S h e e t
Put-Ups
Easy, Cost And Labor
Effective Installation
More Flexible Than Split
Convoluted Or Spiral Wrap
25% Edge Overlap
Soft And Quiet In High
Vibration Uses
Cut And Abrasion Resistant
Chemically Inert
Halogen Free
Nominal
Size
1/8”
1/4”
3/8”
1/2”
3/4”
1”
1 1/4”
1 1/2”
2”
Part
#
F6N0.13
F6N0.25
F6N0.38
F6N0.50
F6N0.75
F6N1.00
F6N1.25
F6N1.50
F6N2.00
Wall
Thickness
.024”
.025”
.025”
.025”
.025”
.038”
.038”
.038”
.038”
Monofilament
Diameter
.008”
.010”
.010”
.010”
.010”
.015”
.015”
.015”
.015”
Bulk
Box
8,000’
3,000’
1,500’
1,200’
500’
400’
250’
250’
200’
Box
A
400’
200’
150’
150’
100’
100’
75’
75’
50’
Box
B
100’
100’
75’
75’
50’
50’
25’
25’
25’
Available
Colors
4
4
4
4
4
4
4
4
4
Lbs/
100’
0.47
0.60
1.20
1.40
1.60
2.00
2.40
2.70
3.60
Flexible, Semi-Rigid
Wrappable Split Braided Tube
F6’s unique split, semi-rigid braided construction
makes it the ideal solution for situations where
ease of installation is of primary importance.
The lateral split allows the tube to open up
to accommodate a wide variety of bundling
requirements, and the semi-rigid braid
configuration simply closes around the entire
installation without the need for any additional
fasteners (Velcro, tape, etc.)
Cut Cleanly
Hot Knife
The PET braid is lightweight, quiet and flexible. The 25%
edge overlap (at nominal diameter) allows coverage
around inline plugs, connectors and splices.
F6 will bend to a tight radius without distorting
or splitting open and, unlike full rigid tubing, will
not impair or affect the flexibility of harnesses.
Colors Available:
Colors Available:
4= BK, OR, PG, CW.
Material
Polyethylene Terepthalate
Grade
F6N
Monofilament Diameter
.008” - .015”
Drawing Number
TF001F6-WD
Black (BK), Orange (OR), Platinum Gray (PG)
& Clear/White (CW).

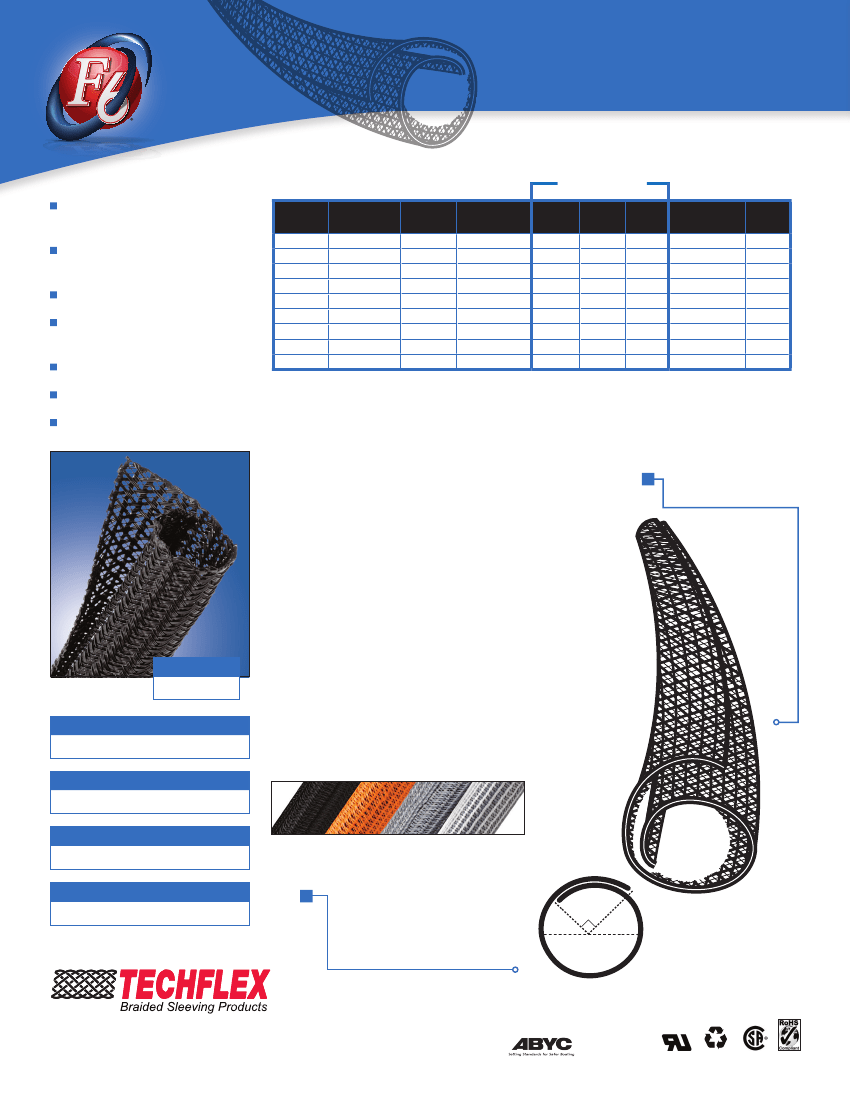

The large overlap allows easy
installation over splices and
incline connectors without
exposing wires and cables.
Nominal Diameter
800.323.5140 • 973.300.9242 • fax: 973.300.9409
104 Demarest Road • Sparta, NJ 07871
www.techflex.com
FAR-25
GEN E RAL PU RPOSE
ADVANCED ENGINEERING
Tech n i cal Data Shee t
Technical Data Sheet
Melt Point
ABRASION
Abrasion Resistance
FLAMMABILITY
Rating _____________________UL94VO
482°F (250°C)
Maximum Continuous
257°F (125°C)
Minimum Continuous
-94°F (-70°C)
Mil-I-23053
www.techflex.com
ASTM D-2117
High
Abrasion Test Machine
Taber 5150
Abrasion Test Wheel
Calibrase H-18
500g
80°F
74%
Abrasion Test Load
Room Temperature
Humidity
Some Scuffing Visible
CHEMICAL
RESISTANCE
1=No Effect
2=Little Effect
3=Affected
4=More Affected
5=Severely Affected
PHYSICAL
PROPERTIES
Monofilament Diameter_____.008-.015
ASTM D-204
Flammability Rating ___________ UL94
Recommended Cutting _____Hot Knife
Colors _________________________ 4
Wall Thickness_____________.024-.038
Tensile Strength (Yarn) __________6-10
ASTM D-2256 Lbs
Specific Gravity
ASTM D-792
_____ 1.38
Moisture Absorption ___________ .1-.2
% ASTM D-570
Hard Vacuum Data
ASTM E-595
TML __________________________ 19
CVCM ________________________ .00
WVR __________________________ .16
Smoke D-Max __________________ 56
ASTM E-662
Outgassing __________________ Med
Oxygen Index __________________ 21
ASTM D-2863
500 Test Cycles
Significant Wear Is Visible
With Several Braid
Filaments Broken
1,200 Test Cycles
Material Destroyed
Pre-Test Weight
1,950 Test Cycles
5,365.1 mg
4,850 mg
515.1 mg
Post-Test Weight
Test End Loss Of Mass
Point Of Destruction
Aromatic Solvents ________________ 2
Aliphatic Solvents _________________ 1
Chlorinated Solvents ______________ 3
Weak Bases ______________________ 1
Salts ____________________________ 1
Strong Bases _____________________ 2
Salt Water
0-S-1926
________________ 1
Hydraulic Fluid
MIL-H-5606
_________ 1
Lube Oil
MIL-L-7808
_______________ 1
De-Icing Fluid
MIL-A-8243
__________ 1
Strong Acids _____________________ 3
Strong Oxidants __________________ 2
Esters/Ketones ___________________ 1
UV Light ________________________ 1
Petroleum _______________________ 1
Fungus
ASTM G-21
________________ 1
Halogen Free ___________________ Yes
RoHS __________________________ Yes
SVHC ________________________ None
© 2017 Techflex, Inc. - Any unauthorized reproduction, in whole or part, in any medium whatsoever, without the express written permission of Techflex, Inc. is strictly forbidden.
Techflex product names and logos are registered trademarks of Techflex, Inc., unless otherwise attributed. The contents and illustrations contained herein are believed to be reliable.
Techflex makes no warranties as to their accuracy or completeness and disclaims any liability in connection with their use. Techflex’s only obligations are those in standard terms of
sale for these products and Techflex will not be liable for any consequential or other damages arising due to misuse of these products or typographical errors or omissions.
07-17
Users should make their own evaluation to determine the suitability of these products for their unique and specific applications.
