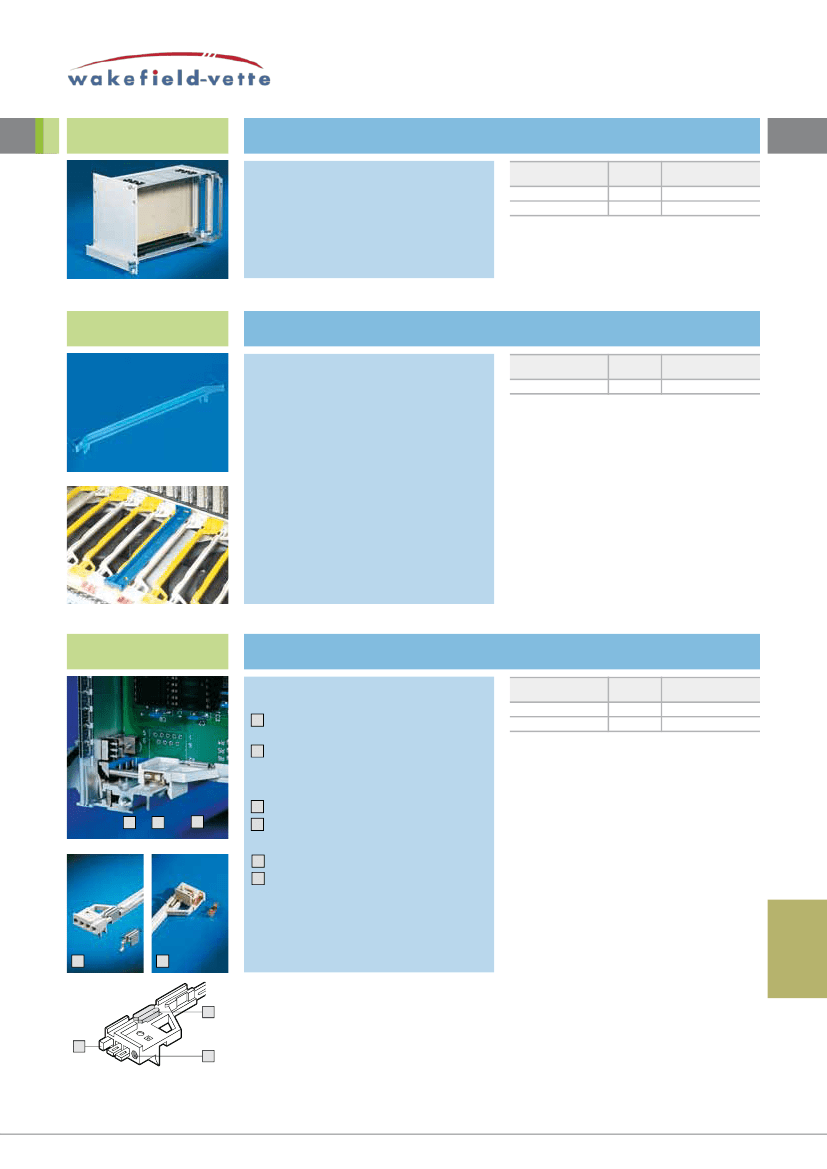

COMPONENTS / ACCESSORIES
GuiDe rails
Guide rails
For box type plug-in units
For PCB thickness 1.6 mm.
For insertion into covers with vent slots
(from 12 HP), see page 152.
material:
Noryl
For PCB depth
mm
160
220
Packs of
10
10
order no.
3606.140
3606.200
air block panel
For unused slots
To conceal unused slots and prevent unwanted
airflow. The air block panel simply snaps into
position on the guide rails.
material:
Polycarbonate, self-extinguishing to UL 94-V0
color:
Blue
note:
Not suitable for use in conjunction with guide rails
with ½ HP offset.
for keyable guide rails
160 mm
Packs of
1
order no.
3687.924
esD contacts
For installation in keyable guide rails
To discharge static charges.
1
esD contact in the guide rail
For permanent direct discharge from the PCB.
2
esD contact for front panel
To discharge static charges in conjunction
with the ESD pin. For insertion into the end
piece of the guide rail.
3
esD pin
3
ESD contact
for
guide rail
front panel
Packs of
50
50
order no.
3684.204
3684.205
note:
Only for use in conjunction with extractor handle
with ESD pin (type IV, IVs, VII),
see page 138 – 140
2
1
4
keys
material:
1
Stainless steel
2
Tin bronze, tin-plated
1
2
1
4
2
123
