S-SY2 Overview

CAP KIT CER 10PF-2200PF 200PCS

S-SY2 Parametric

Parameter Name	Attribute value
Kit type	ceramics
Capacitance range	10pF ~ 2200pF
Installation type	Surface mount, MLCC
Voltage - Rated	250VAC
Tolerance	±5%， ±10%
application	Safety
characteristic	-
quantity	200 pieces (10 values - 20 pieces each)
Includes packaging	1808, 2211, 2220 (4520, 5728, 5750 metric)

Preview

Download Datasheet

View All

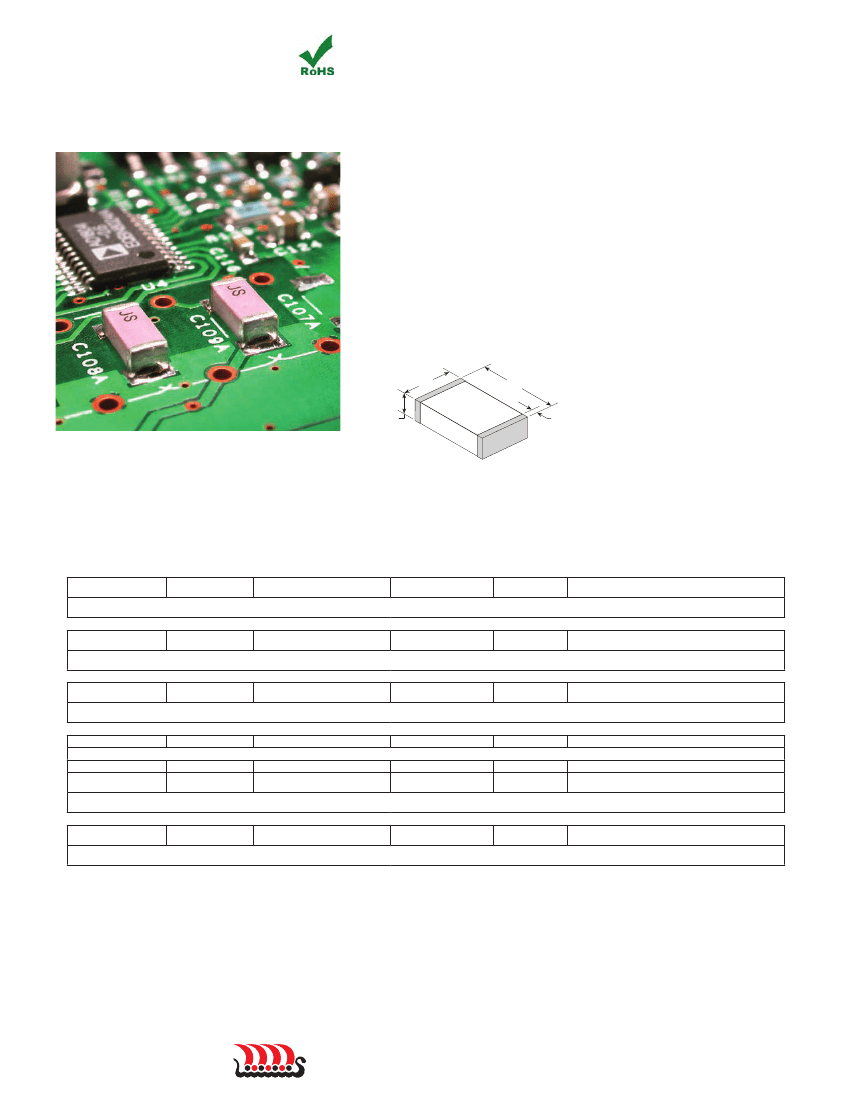

AC S

AFETY

APACITORS

Johanson Dielectrics Type SC ceramic chip capacitors are

designed for AC voltage surge and lightning protection in line-

to-ground interface applications in computer networks, modem,

facsimile and other equipment.

Johanson’s safety capacitor offering includes four different case

sizes in NP0 and X7R dielectric materials.

These devices are surface mount ready with barrier terminations

and tape and reel packaging.

Information on capacitor safety ratings and certification details

may be found below.

E/B

Polyterm

soft termination

option for demanding

environments & processes

available on select parts,

please contact the factory.

SAFETY

RATING

VOLTAGE

RATING

250 VAC

WITHSTANDING

VOLTAGE

1,500 VAC

IMPULSE

VOLTAGE

2,500 V

CASE

SIZE

1808

JOHANSON

ORDERING P/N

302R29______V3E-****-SC

STANDARDS:

IEC/EN 60384-14:2013 EN 60950 2006 • UL 60384-14, UL 60950-01

CERTIFICATIONS:

TUV R 50227900

T 72140662

•

UL File E472557 & E212609

250 VAC

1,500 VAC

2,500 V

1812

302S43______V3E-****-SC

STANDARDS:

IEC/EN 60384-14:2013 EN 60950 2006 • UL 60384-14, UL 60950-01

CERTIFICATIONS:

TUV R 50227900

T 72140662

•

UL File E472557 & E212609

X1/Y2

250 VAC

1,500 VAC

5,000 V

1808

502R29______V3E-****-SC

STANDARDS:

IEC/EN 60384-14:2013 EN 60950 2006 • UL 60384-14, UL 60950-01

CERTIFICATIONS:

TUV R 50227900

T 72140662

•

UL File E472557 & E212609

X1/Y2

STANDARDS:

IEC/EN 60384-14:2013 EN 60950 2006 • UL 60384-14, UL 60950-01

CERTIFICATIONS:

TUV R 50227900

T 72140662

•

UL File E472557 & E212609

250 VAC

1,500 VAC

2,500 V

5,000 V

1812

2211

502S43______V3E-****-SC

502R30______V3E-****-SC

STANDARDS:

IEC/EN 60384-14:2013 EN 60950 2006 • UL 60384-14, UL 60950-01

CERTIFICATIONS:

TUV R 50227900

T 72140662

•

UL File E472557 & E212609

X1/Y2

250 VAC

1,500 VAC

5,000 V

2220

502S47______V3E-****-SC

STANDARDS:

IEC/EN 60384-14:2013 EN 60950 2006 • UL 60384-14, UL 60950-01

CERTIFICATIONS:

TUV R 50227900

T 72140662

•

UL File E472557 & E212609

X Capacitors are defined as suitable for use in situations where failure of the capacitor would not lead to danger of electric shock.

Y Capacitors are defined as suitable for use in situations where failure of the capacitor could lead to danger of electric shock.

www.johanson dielectrics.com

S-SY2 Related Products

	S-SY2	502R30W681KV3E-****-SC	302R29W471KV3E-****-SC	302R29N100JV3E-****-SC	S-SY3	302R29W681MV3E-****-SC	502R30N151JV3E-****-SC	302R29W471MV3E-****-SC
Description	CAP KIT CER 10PF-2200PF 200PCS	multilayer ceramic capacitors mlcc - smd/smt 5kvolts 680pf 10% x7r	CAP CER 470PF 250VAC X7R 1808	CAP CER 10PF 250VAC C0G/NP0 1808	CAP KIT CER 10PF-1500PF 240PCS	CAP CER 680PF 250VAC X7R 1808	SAFE MLCC 2211,150PF,5%,5KV	CAP CER 470PF 250VAC X7R 1808
Tolerance	±5%， ±10%	5 %	±10%	±5%	±5%， ±10%， ±20%	±20%	±5%	±20%
Installation type	Surface mount, MLCC	-	Surface mount, MLCC	Surface mount, MLCC	Surface mount, MLCC	Surface mount, MLCC	Surface mount, MLCC	Surface mount, MLCC
Voltage - Rated	250VAC	-	250V	250V	250VAC	250VAC	250V	250V
application	Safety	-	Safety	Safety	Safety	Safety	Safety	Safety
capacitance	-	-	470pF	10pF	-	680pF	150pF	470pF
Temperature Coefficient	-	-	X7R	C0G，NP0	-	X7R	C0G，NP0	X7R
Operating temperature	-	-	-55°C ~ 125°C	-55°C ~ 125°C	-	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
grade	-	-	X2	X2	-	X2	X1，Y2	X2
Package/casing	-	-	1808 (4520 metric)	1808 (4520 metric)	-	1808 (4520 metric)	2211 (5728 metric)	1808 (4520 metric)
size/dimensions	-	-	0.189" long x 0.080" wide (4.80mm x 2.03mm)	0.189" long x 0.080" wide (4.80mm x 2.03mm)	-	0.189" long x 0.080" wide (4.80mm x 2.03mm)	0.225" long x 0.110" wide (5.72mm x 2.80mm)	0.189" long x 0.080" wide (4.80mm x 2.03mm)
Thickness (maximum)	-	-	0.085"（2.16mm）	0.085"（2.16mm）	-	0.085"（2.16mm）	0.115"（2.92mm）	0.085"（2.16mm）
