350LSG6800MNB77X141 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> 350LSG6800MNB77X141

Preview

350LSG6800MNB77X141: DescriptionCAP ALUM 6800UF 20% 350V SCREW; CategoryPassive components; File Size126KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

350LSG6800MNB77X141 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	350LSG6800MNB77X141	-	-	View	Buy Now

350LSG6800MNB77X141 Overview

CAP ALUM 6800UF 20% 350V SCREW

350LSG6800MNB77X141 Parametric

Parameter Name	Attribute value
capacitance	6800µF
Tolerance	±20%
Voltage - Rated	350V
ESR (equivalent series resistance)	-
Service life at different temperatures	5000 hours at 105°C
Operating temperature	-25°C ~ 105°C
polarization	polarization
grade	-
application	Universal
Ripple current @ low frequency	14.1A @ 120Hz
Ripple current @ high frequency	19.74A @ 10kHz
lead spacing	1.236"（31.40mm）
size/dimensions	3.032" diameter (77.00mm)
Height - Installation (maximum)	5.630"（143.00mm）
Surface mount pad dimensions	-
Installation type	Base installation
Package/casing	Radial, Can - Screw Terminal

Preview

Download Datasheet

View All

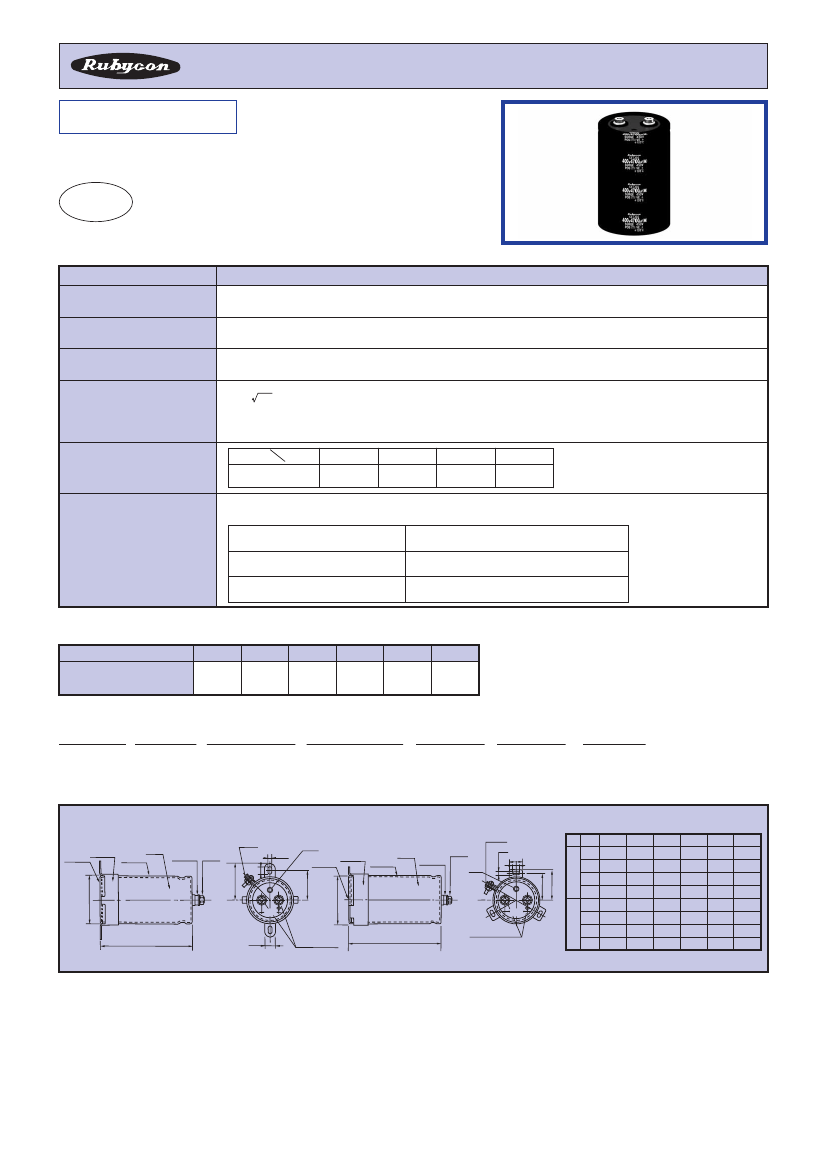

SCREW TERMINAL ALUMINUM ELECTROLYTIC CAPACITORS

LSG

RoHS

compliance

SERIES

Load Life : 105℃ 5000 hours

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Characteristics

−25∼＋105℃

350∼450Vdc

±20％

（20℃，

120Hz）

I＝3

CV or 5mA whichever is smaller. (After 5 minutes application of rated voltage)

Leakage Current(MAX)

I＝

Leakage Current

(μA)

Vdc

φD

51

0.20

64

0.25

C＝

Capacitance

(μF)

77

0.25

90

0.25

V＝

Rated Voltage

(Vdc)

（20℃,120Hz）

Dissipation Factor(MAX)

(tanδ)

350∼450

After applying rated voltage with rated ripple current for 5000 hours at 105℃,

the capacitors shall meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within ±20％ of the initial value.

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency

（Hz）

Coeﬃcient

60 50）（100） 300

（

120

0.80

1.00

1.17

500

1.23

1k

1.30

10k≦

1.40

◆PART NUMBER

□□□

Rated Voltage

LSG

Series

□□□□□

Capacitance

M

Capacitance Tolerance

□□□

Option

□□

Clamp Code

D×L

Case Size

◆DIMENSIONS

〈I type〉

Plate

Mounting

Clamp

Case

Sleeve

Screw

Terminal Bolt

W2±2

Clamp

Bolt

W3

W4

〈Y type〉

Vent

Plate

W1±2

Mounting

Clamp

Sleeve

Bolt

Case Screw

Terminal

Clamp

Bolt

W3

Vent

W4

W2±2

W1±2

D±2

L±3

W5

M5 P=0.8Bolt

L±3

M5 P=0.8Bolt

Y type

F±1

I type

W5

φD

51

64

77

90

51

64

77

90

W1

34.0

40.0

47.0

54.0

32.5

38.0

44.5

50.8

W2

40.0

45.0

53.0

60.0

37.5

43.0

49.0

56.0

W3

3.5

4.5

W4

6.0

7.0

6.0

8.0

7.0

8.0

W5

12

14

12

14

16

(mm)

F

21.8

28.2

31.4

21.8

28.2

31.4
