4197414/10 | 5504M YELLOW CPK
Ultra II® 5504M ETL Verified Category 5e U/UTP Cable, plenum, yellow
jacket, 4 pair count, 1000 ft (305 m) length, CommPak
OBSOLETE
Replaced By
874036514/10
ETL Verified Category 5e U/UTP Cable, plenum, yellow jacket, 4 pair count, 1000 ft (305 m)
CS27P YEL C5E 4/24 U/UTP CPK 1KFT length, CommPak
Product Classification
Portfolio
Brand
Product Type
Regional Availability
Uniprise®
Ultra II®
Twisted pair cable
North America

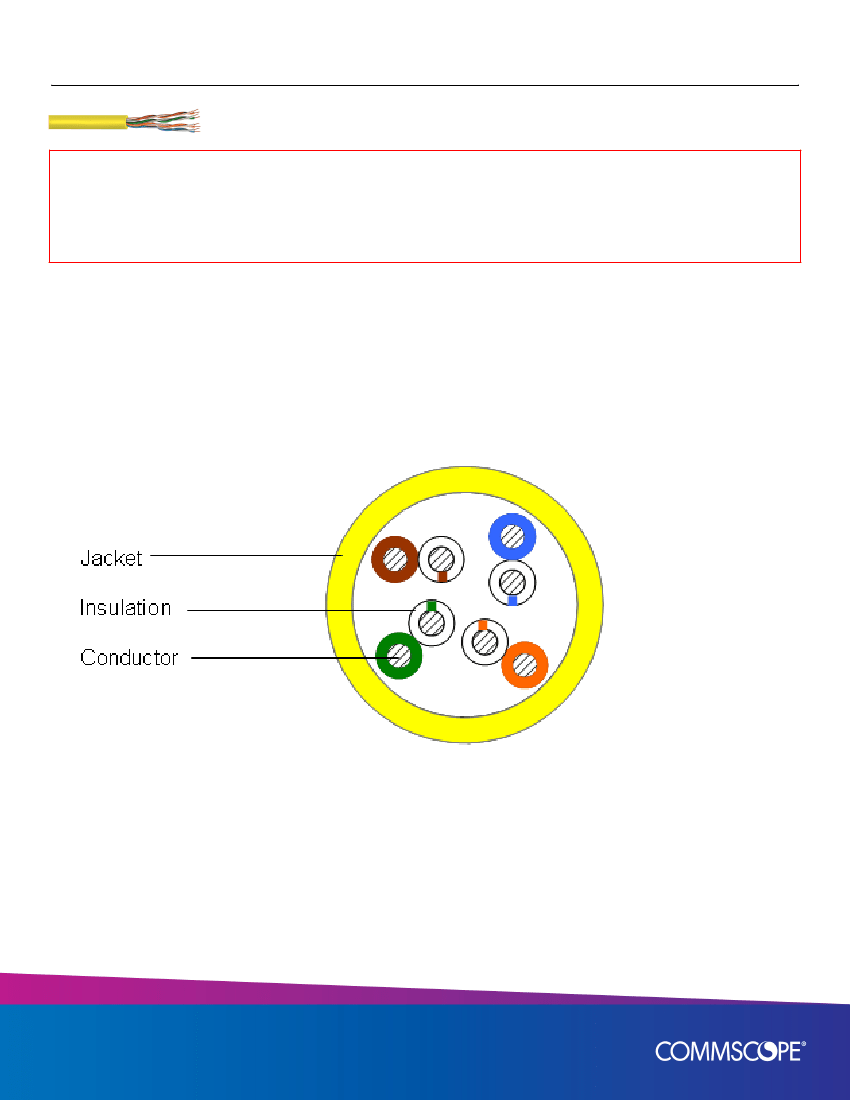

Cross Section Drawing
Construction Materials
Jacket Material
Conductor Material
Insulation Material
PVC
Bare copper
FEP | Polyolefin
Dimensions
Cable Length
305 m | 1000 ft
page 1 of 3
December 17, 2018
©2018 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: November 16, 2018
4197414/10 | 5504M YELLOW CPK
Cable Weight
Diameter Over Jacket, nominal
Jacket Thickness
22.33 lb/kft
4.902 mm | 0.193 in
0.483 mm | 0.019 in
Electrical Specifications
ANSI/TIA Category
Characteristic Impedance
dc Resistance Unbalance, maximum
dc Resistance, maximum
Delay Skew, maximum
Mutual Capacitance
Operating Frequency, maximum
Transmission Standards
Safety Voltage Rating
Dielectric Strength, minimum
Note
5e
100 ohm
5%
9.38 ohms/100 m
15 ns
4.6 nF/100 m @ 1 kHz
350 MHz
ANSI/TIA-568-C.2 | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D
300 V
1500 Vac | 2500 Vdc
All electrical transmission tests include swept frequency measurements
Nominal Velocity of Propagation (NVP)
72 %
Environmental Specifications
Environmental Space
Smoke Test Method
Flame Test Method
Installation Temperature
Operating Temperature
Plenum
CMP
CMP
0 °C to +60 °C (+32 °F to +140 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
General Specifications
Cable Type
Packaging Type
Pairs, quantity
Cable Component Type
Jacket Color
Product Number
Conductor Gauge, singles
Conductor Type, singles
Conductors, quantity
U/UTP (unshielded)
CommPak® box
4
Horizontal
Yellow
5504M
24 AWG
Solid
8
Mechanical Specifications
Pulling Tension, maximum
11 kg | 25 lb
page 2 of 3
December 17, 2018
©2018 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: November 16, 2018
4197414/10 | 5504M YELLOW CPK
Regulatory Compliance/Certifications
Agency
ISO 9001:2008
Classification
Designed, manufactured and/or distributed under this quality management system
page 3 of 3
December 17, 2018
©2018 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: November 16, 2018
