Compact Photoelectric Sensor with Stainless Steel Housing
E3ZM
CSM_E3ZM_DS_E_5_8
Stainless Steel Housing Ideal for Food
Industry
PAT Pending
• Strong resistance against detergents, disinfectants, and jet liquid flow.
• Product lineup includes BGS Reflective Models and Through-beam
Models with built-in slits.
• Certified by Ecolab Europe.
Be sure to read
Safety Precautions
on
page 13.
For the most recent information on models that have been certified for
safety standards, refer to your OMRON website.

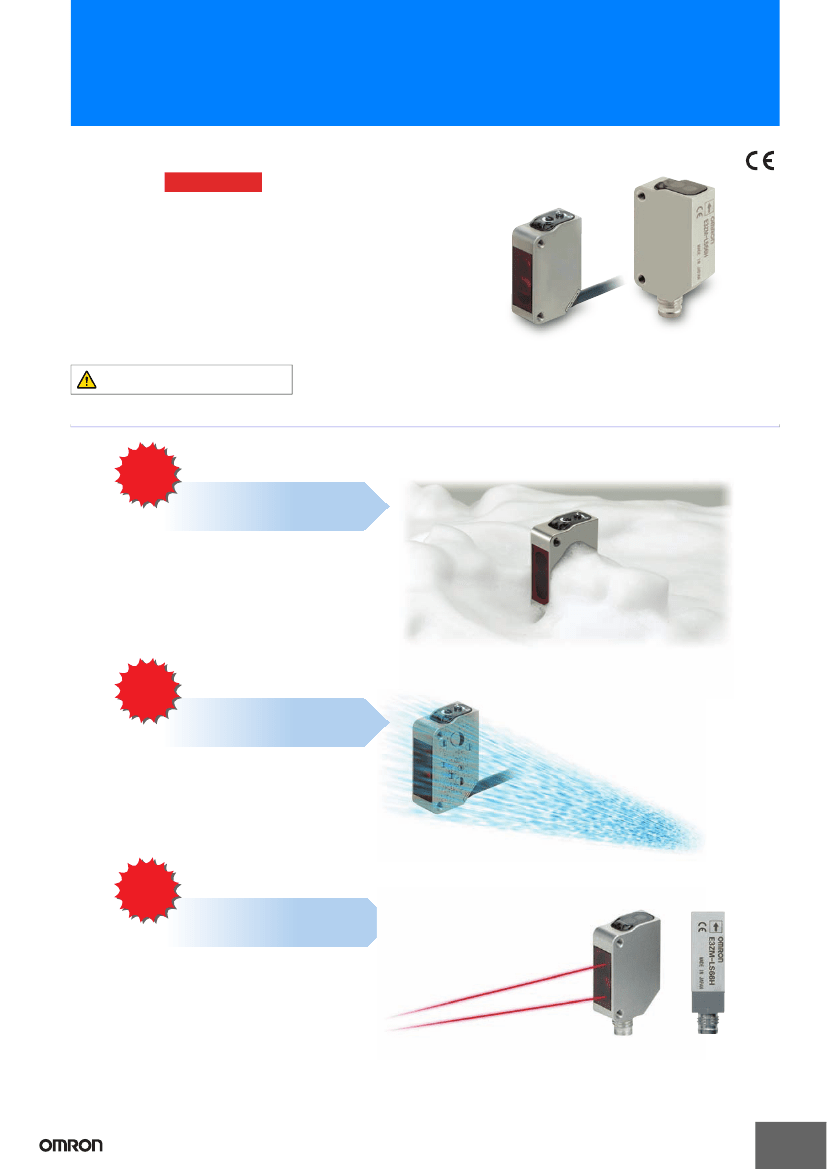

Features
World's t
es
Strong
Withstands Detergent and
Disinfectant Spray
We used SUS316L for the case and
the best material for all parts to
achieve
200 times the durability of
the E3Z
(in 1.5% solution of sodium
hydroxide at 70˚C) to make the
E3ZM suitable for the cleaning
conditions of food-processing
machinery.
's
Worl
l
d
's
Wor d
Fi
i
rst
t
F rs
Superior Protective Structure
The first IP69K* (DIN 40050-9)
protective structure in the world
for a square metal photoelectric
sensor. Suitable for high-
temperature, high-pressure jet
water spray cleaning applications.
* Refer to the footnote on page 5 (ratings
and specifications table).
y's
Industr
Best
Rear
Shape and Markings Designed
for Greater Hygiene
Few indentations in the shape
means less dust and water can
collect, making the E3ZM more
hygienic. No labels have been used
in order
to prevent foreign matter
contaminating food
products. The
E3ZM model and lot numbers are
imprinted using a laser marker.
1
E3ZM

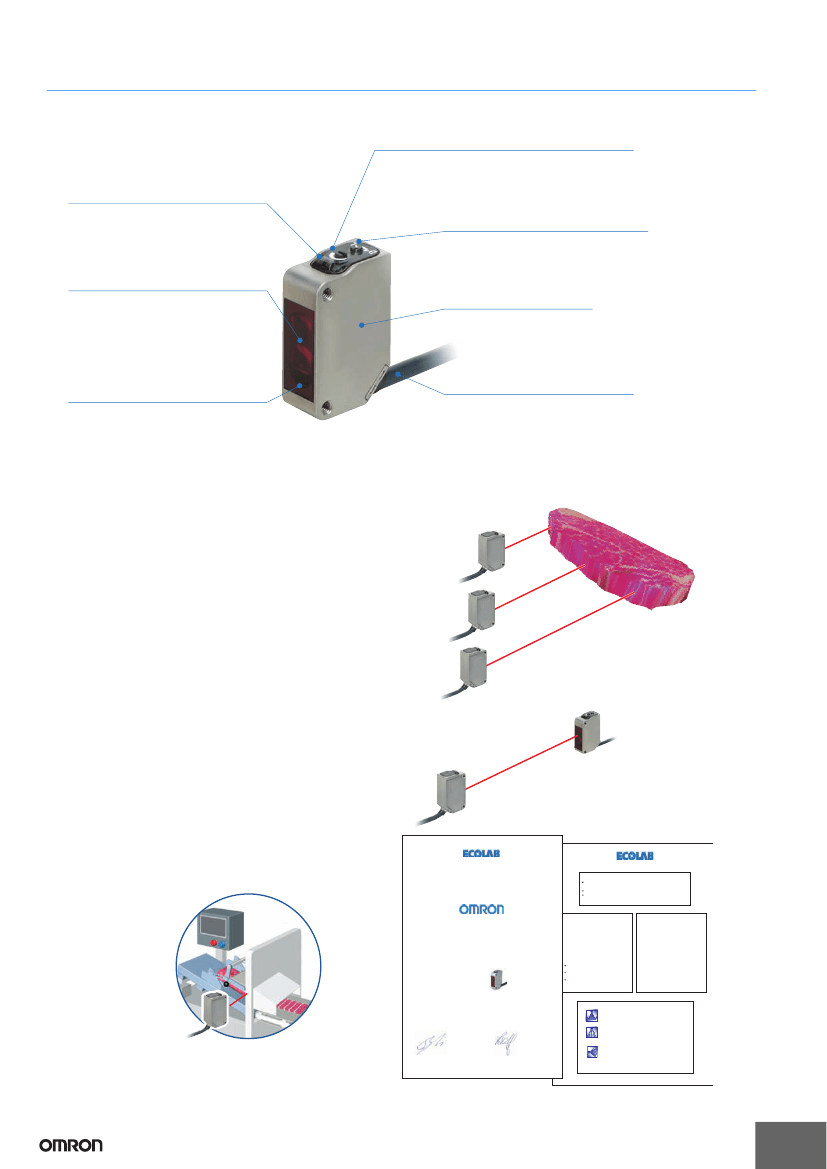

Structural Design That Provides Excellent Environment-resistance*
Indicator cover: Polyetherimide (PEI)
Excellent resistance to detergents and disinfectants.
Waterproofing ring: Fluorine rubber
Excellent resistance to detergents and
disinfectants.
Sensitivity adjustment and mode
selector switch:
Polyetheretherketone (PEEK)
Excellent resistance to detergents and
disinfectants. Also has excellent abrasion
resistance.
Optical plate:
Polymethylmethacrylate (PMMA)
Excellent resistance to detergents
and disinfectants. High
transparency and other qualities
give PMMA excellent optical
characteristics.
Case: SUS316L
Excellent corrosion resistance
to many chemical reagents.
Seal
The seal provides the durability to
high-temperature and high-pressure
water that complies with IP69K.
*Do not use the E3ZM in an oily environment.
Cable: Polyvinylchloride
Excellent resistance to detergents and
disinfectants.
Unique Members of the E3ZM Family
BGS Reflective Models
E3ZM-LS6@H/-LS8@H
Three models with different fixed sensitivity (rated sensing distances)
have been created. These models cover the sensing ranges of the E3Z-
LS61.
100mm
150mm
200mm
Through-beam Inner Aperture Models
E3ZM-T63
Fine beam without attaching an external aperture. This eliminates
malfunctions from residual water drops, even immediately after
washing.
0.8 m
Same minimum detection object
(0.7-mm dia.) as the E3Z-T61+E39-S65C
(2-mm-dia. aperture).
A Better Fit for the Application
The E3ZM can be used in those harsh cleaning
environments in which the E3Z was difficult to use.
E3ZM passed the material resistance tests and is certified
by Ecolab.
Ecolab GmbH & Co. OHG
P.O. Box 13 04 06
D-40551 Düsseldorf
certifies that for
This certificate is based on:
documented test procedures (test no.: F&E/P3-E Nr. 40-1)
according to material resistance
defined product descriptions
standardized cleaning procedure
OMRON Manufacturing of Germany GmbH
Carl-Benz-Strasse 4
71154 Nufringen
Test procedure
Ecolab-test F&E Nr. 40-1
Dipping test:
•
Complete immersion in solutions/liquid
Test period:
•
14 days
Temperature:
•
room temperature (constant)
Product specifications:
P3-topax 56:
Acid foam cleaning substance for food industry
P3-topax 66:
Alkaline cleaning detergent with active chlorine
for machine cleaning in food and beverage
industry
P3-topax 91:
Neutral disinfection agent based on
quaternary ammonium compounds (QAV) for
food industry
P3-topactive DES:
Acid disinfectant based on Peracetic Acid and
Hydrogen Peroxide for the food and beverage
industry
material resistance tests
were performed with cleaning substances
P3-topax 56, P3-topax 66, P3-topax
91, P3 Topactiv DES
and demineralized water as a zero reference factor.
The material resistance of the tested series
Photoelectric Sensor E3ZM
Analysis:
Visual judgement like swelling, brittleness,
discoloring
compared to zero-reference factor
(demineralized water)
Photometric documentation
to the P3 products used in the test can be considered to be positive according to
the cleaning procedure mentioned overleaf.
Cleaning plan for food and beverage industry*
Düsseldorf, 14th February 2006
Rinsing with water 40 – 50°C
Rinsing with low pressure. Rinsing from top to bottom in the
direction of the drains. Cleaning of the drains.
Foaming
from bottom to top
alkaline:
P3-topax 66 2 – 5 %
acid:
P3-topax 56 2 %
temperature: cold up to 40°C
contact time: 15 min. recommended
Ecolab GmbH & Co. OHG
i.V.
i. V.
daily
on demand
Thomas Tyborski
Reimund Laaff
Processing and wrapping of
meat or raw food products
Rinsing with water 40 – 50°C
Rinsing from top to bottom with low pressure
Spray disinfection
P3-topax 91 1-2 %, 30 -60 minutes
Foam disinfection
P3-topactive DES 1-2 %, 10-30 minutes
*short description
2
E3ZM

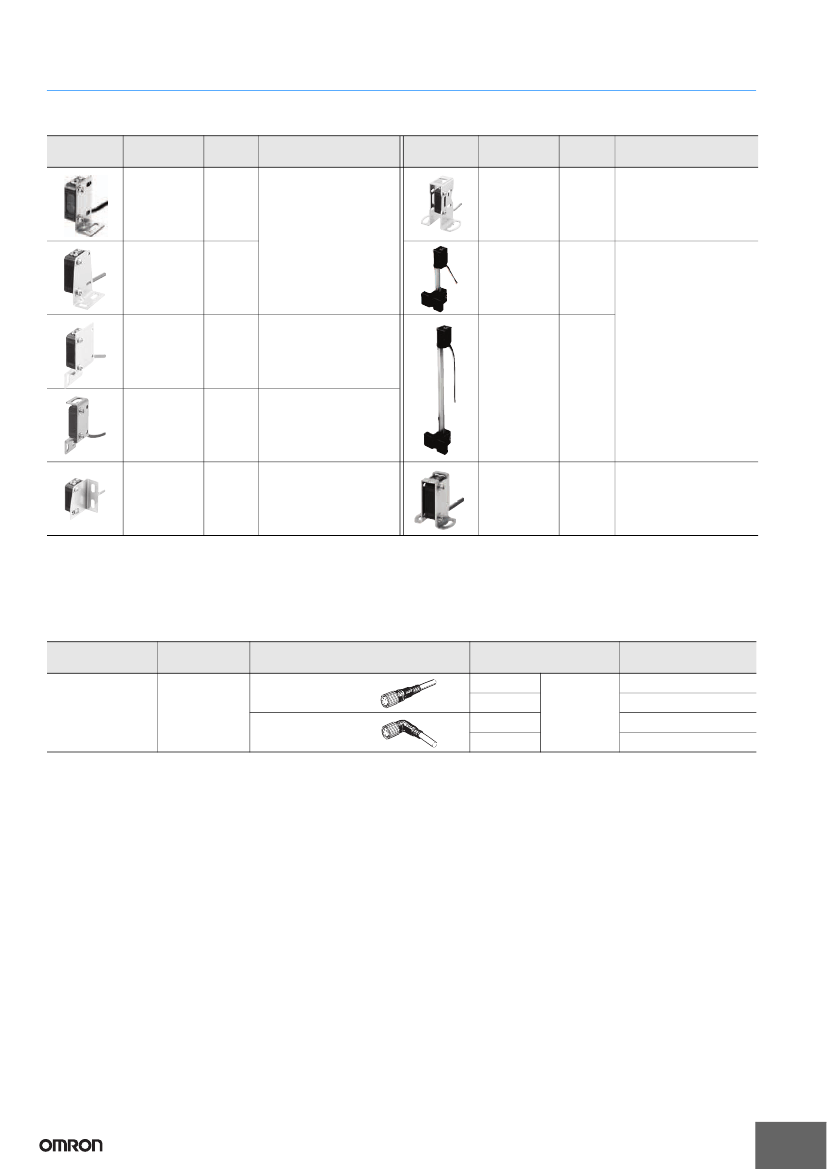

Ordering Information
Sensors
Sensing
method
(Refer to
Dimensions
on page 15.)
Appear-
ance
Connection
method
Pre-wired (2 m)
Sensing distance
Model
NPN output
E3ZM-T61 2M
Emitter E3ZM-T61-L 2M
Receiver E3ZM-T61-D 2M
E3ZM-T66
Emitter E3ZM-T66-L
Receiver E3ZM-T66-D
E3ZM-T63 2M
Emitter E3ZM-T63-L 2M
Receiver E3ZM-T63-D 2M
E3ZM-T68
Emitter E3ZM-T68-L
Receiver E3ZM-T68-D
E3ZM-R61 2M
E3ZM-R66
E3ZM-D62 2M
PNP output
E3ZM-T81 2M
Emitter E3ZM-T81-L 2M
Receiver E3ZM-T81-D 2M
E3ZM-T86
Emitter E3ZM-T86-L
Receiver E3ZM-T86-D
E3ZM-T83 2M
Emitter E3ZM-T83-L 2M
Receiver E3ZM-T83-D 2M
E3ZM-T88
Emitter E3ZM-T88-L
Receiver E3ZM-T88-D
E3ZM-R81 2M
E3ZM-R86
E3ZM-D82 2M
E3ZM-D87
E3ZM-LS81H 2M
E3ZM-LS86H
E3ZM-LS82H 2M
E3ZM-LS87H
E3ZM-LS84H 2M
E3ZM-LS89H
Red light
Infrared light
15 m
Through-
beam
(Emitter +
Receiver)
Connector (M8, 4 pins)
Pre-wired (2 m)
Connector (M8, 4 pins)
Pre-wired (2 m)
*1
Connector (M8, 4 pins)
Pre-wired (2 m)
0.8 m
(apertures built in)
*2
Retro-
reflective with
MSR function
Diffuse-
reflective
4m
(100 mm)
(Using E39-R1S)
1m
Connector (M8, 4 pins)
Pre-wired (2 m)
E3ZM-D67
E3ZM-LS61H 2M
10 to 100 mm
Connector (M8, 4 pins)
BGS
reflective
(fixed
distance)
Pre-wired (2 m)
E3ZM-LS66H
E3ZM-LS62H 2M
10 to 150 mm
Connector (M8, 4 pins)
Pre-wired (2 m)
E3ZM-LS67H
E3ZM-LS64H 2M
10 to 200 mm
Connector (M8, 4 pins)
E3ZM-LS69H
*1. The Reflector is sold separately. Select the Reflector model most suited to the application.
*2. Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
Accessories (Order Separately)
Reflectors
(A Reflector is required for each Retro-reflective Sensor: A Reflector is not provided with the Sensor. Be sure to order a Reflector.)
(Refer to
Dimensions
on E39-L/E39-S/E39-R.)
E3ZM-R
Sensing distance
*
Rated value
3 m (100 mm)
4 m (100 mm)
---
---
---
---
---
---
---
---
Reference value
---
---
5 m (100 mm)
2.5 m (100 mm)
3.5 m (100 mm)
3 m (100 mm)
1.5 m (50 mm)
700 mm (150 mm)
1.1 m (150 mm)
1.4 m (150 mm)
E39-R1
E39-R1S
E39-R2
E39-R9
E39-R10
E39-R1K
E39-R3
E39-RS1
E39-RS2
E39-RS3
1
1
1
1
1
1
1
1
1
1
Name
Model
Quantity
Remarks
Reflector
Fog Preventive Coating
Small Reflector
Tape Reflector
• Reflectors are not provided with Retro-reflec-
tive models.
• The MSR function is enabled.
Note: If you use the Reflector at any distance other than the rated distance, make sure that the stability indicator lights properly when you install the Sensor.
* Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
3
E3ZM
Mounting Brackets
A Mounting Bracket is not enclosed with the Sensor. Order a Mounting Bracket separately if required.
(Refer to
Dimensions
on
E39-L/F39-L/E39-S/E39-R.)
Appearance
Model
(Material)
E39-L153
(SUS304)
*1
Mounting Brackets
E39-L104
(SUS304)
*1
1
E39-L150
(SUS304)
1 set
(Sensor adjuster)
E39-L43
(SUS304)
*2
Horizontal Mounting
Bracket
E39-L151
(SUS304)
E39-L142
(SUS304)
*2
1
Horizontal Protective Cover
Bracket
1 set
Easily mounted to the
aluminum frame rails of
conveyors and easily
adjusted.
For left to right adjustment
Quantity
Remarks
Appearance
Model
(Material)
E39-L98
(SUS304)
*2
Quantity
Remarks
1
1
Metal Protective Cover
Bracket
1
E39-L44
(SUS304)
1
Rear Mounting Bracket
E39-L144
(SUS304)
*2
1
Compact Protective Cover
Bracket
Note: When using a Through-beam Sensor, order one Mounting Bracket for the Receiver and one for the Emitter.
*1. Cannot be used for Standard Connector models with mounting surface on the bottom. In that case, use Pre-wired Connector models.
*2. Cannot be used for Standard Connector models.
Sensor I/O Connectors (Sockets on One Cable End)
(Models for Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)
(Refer to
Dimensions
on
XS3.)
Size
Cable
Straight
*2
M8 (4 pins)
*1
Standard
L-shaped
*2 *3
Appearance
2m
5m
2m
5m
Note: When using a Through-beam Sensor, order one Mounting Bracket for the Receiver and one for the Emitter.
The whole system requires a single-chip microcomputer to control four-way AC 220V output. The solution I considered is: the 220V AC power is output through a 5V2A power adapter with 5V output. This 5V...
Although it is posted here, the title is no joke.
I've recently been trying to embark on the path of freelancing.I can write code, boards, and soft manuscripts.
If you need anything, please find me~~~...
As a novice, I want to know the process of debugging wince driver. For example, if there is an error in the driver, after modification, I need to 1 recompile NK 2 export a new sdk 3 uninstall the orig...
Time-interleaved sampling ADC system based on AD9444 The four-channel time-interleaved sampling ADC system using AD9444 and AFB technology improves the resolution and the sampling rate of the system. ...
1. I saw the STM32B-EVAL development board drawing. Why does the USB have a USB Disconnect control? Is it okay to not have this control in the application? ?2. Can ST's DFU software be used in Win7 sy...
Google's driverless technology is not only an eye-catching technology, but also a subversion of the car usage model.
Those who have watched anti-terrorism films and TV dramas must have been im...[Details]
The Portable Digital Data Acquisition System (PDDAS) uses LabVIEW Real-Time and PXI to control the wind tunnel test and record air pressure data from 128 different channels.
"The LabVIEW Real-...[Details]
In recent years, the market for mobile/portable devices such as smartphones and laptops has continued to grow rapidly. While these products continue to integrate more new features to enhance the ...[Details]
1. Introduction
Light control circuit plays a vital role in urban street lamps or corridor lighting. With light control circuit, the lights can be automatically turned on and off according to ...[Details]
With the rapid development of urban economy, elevators are increasingly used as a vertical transportation tool. However, elevator fault detection and maintenance, especially the role of elevator remot...[Details]
1. Introduction
With the gradual automation and modernization of industrial control systems, fieldbus control systems have received more and more attention and application. CAN bus is currentl...[Details]
Aromatic gases are widely present in food, medicine, cosmetics and various daily chemical products, such as snacks, liquor, spices, Chinese herbal medicines, plasters, perfumes, soaps, shampoos, et...[Details]
Overview
As a remote network communication control method with advanced technology, high reliability, complete functions and reasonable cost, CAN-bus has been widely used in various automa...[Details]
1 Introduction
The Third Steel Plant of Jigang Group is a key investment project of Jigang Group during the "15th Five-Year Plan". It has introduced first-class domestic and foreign advanced eq...[Details]
LED is the abbreviation of light emitting diode, which is an electric light source made of semiconductor technology. The core part of LED is a chip composed of P-type semiconductor and N-type semi...[Details]
Smart lighting control systems provide high controllability for various buildings and further enhance the level of green energy. They are the core products of energy conservation and digital techn...[Details]
With the continuous consumption of earth's energy and the scarcity of resources, the harm of greenhouse effect to human beings, and the serious pollution of the atmosphere to the earth, the intern...[Details]
The traditional display screen using 51 single-chip microcomputer to control LED dot matrix has relatively simple functions. If it is to achieve diversified functions, it often takes a lot of time ...[Details]
FPGAs are used in 81% of electronic systems, including many commercial and defense products, and most FPGAs use BGA packaging. The BGA packaging is characterized by small solder balls and small sol...[Details]
It is well known to automotive suppliers that automakers are demanding more from their supply base. For connector suppliers, this means stricter requirements for product performance, stability and ...[Details]
Integrated technical exchanges
京公网安备 11010802033920号
EEWORLD
