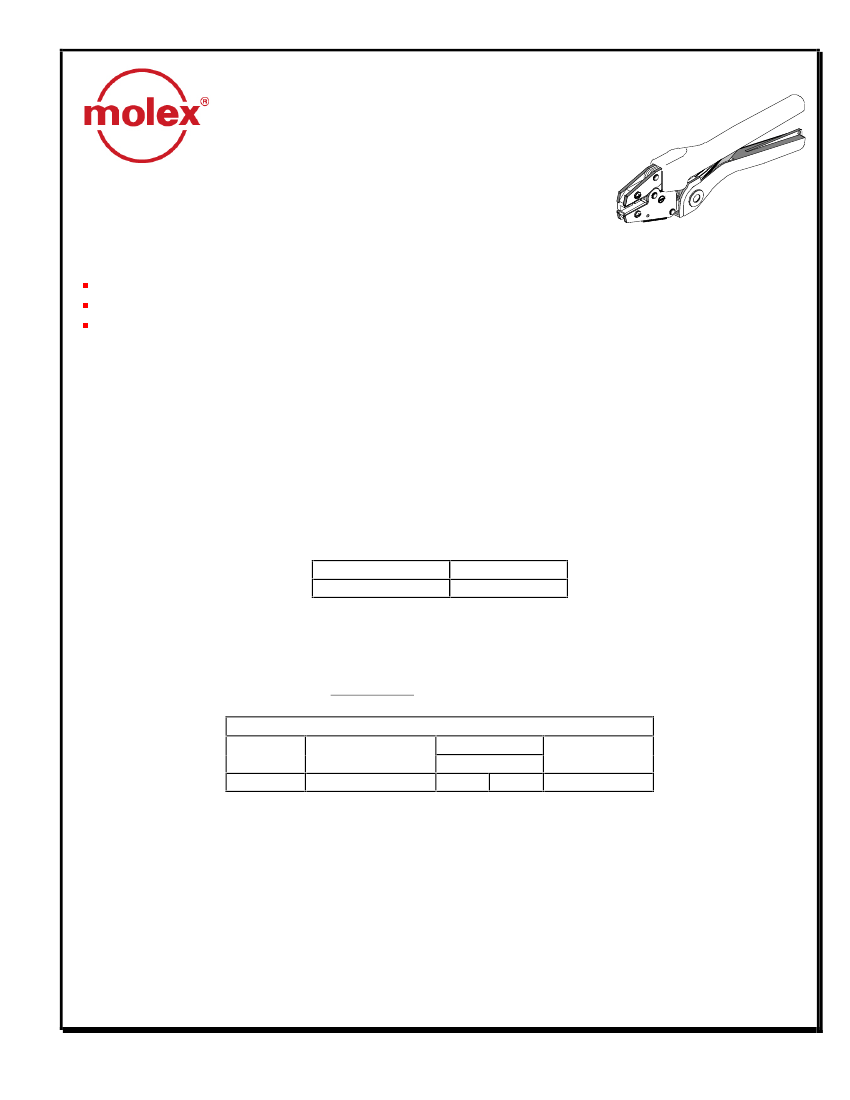

RHT2080 Hand Crimp Tool
Hand Crimp Tool
Operating Instruction And Specifications Sheet
Part No. 64001-2500
Eng. No. RHT 2080
(Replaces 19285-0011)
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Long handles for comfortable crimping with reduced crimping force
A precision user-friendly terminal locator wire stop holds terminals in the proper crimping position
SCOPE
Nylon closed end connectors 8 AWG
Testing
Mechanical
The tensile test, or pull test, is a means of evaluating the mechanical properties of the crimped connections. The following charts
show the UL specifications for various wire sizes. The tensile strength is shown in pounds and indicates the minimum acceptable
force to break or separate the terminal from the conductor.
Wire Size (AWG)
8
UL – 486 C
45
* UL – 486 C – Closed end connectors and Wire Nuts.
The following is a partial list of the product part numbers and their specifications that this tool is designed to run. We will be adding to
this list and an up to date copy is available on www.molex.com.
Wire Size: 8 AWG 8.50 mm²
Wire Strip Length
Terminal Eng No. (REF)
In
mm
NC-8
Varies
Varies
Terminal No.
19160-0024
Wire Combinations
See Chart 1
Doc No. 64001-2500
Revision: B
Release Date: 01-20-03
Revision Date: 09-02-03
UNCONTROLLED COPY
Page 1 of 7
RHT2080 Hand Crimp Tool
OPERATION
Wire Preparation
For stranded wire strip leads to approximately 7/8 of an inch. Twist the
wire combination even and tight. Trim stripped pre-twisted area to 1/2
of an inch and insert into connector and crimp. For more information
follow the Quality Crimping Handbook.
CHART 1
Wire Combinations for Nylon- Insulated Closed End Connectors
Part No. 191600024 (NC-8)
Wire Gauge (AWG)
Wire Type
Rating
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
**Stranded
only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
8
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
3
2
2
2
2
2
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
5
4
4
4
2
1
4
3
2
1
5
4
3
2
8
7
6
5
4
3
2
3
2
1
4
3
2
1
1
1
2
4
2
1
6
5
4
3
2
1
10
12
14
1
16
1
1
2
18
1/2 “
Wire Combinations for Nylon- Insulated Closed End Connectors
Part No. 191600024 (NC-8)
Wire Type
Wire Gauge (AWG)
Rating
8
10
12
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
Stranded only
Stranded only
Stranded only
Stranded Only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
14
3
3
3
3
3
3
3
3
3
2
2
2
2
2
2
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
16
3
2
1
18
5
4
3
2
1
4
3
2
1
7
6
5
4
3
2
6
5
4
3
10
9
8
7
6
5
4
7
7
6
6
6
6
5
5
5
5
5
4
4
4
4
4
4
4
3
2
1
6
5
4
3
2
1
3
2
1
UL & CSA
UL & CSA
UL & CSA
UL only
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
Doc No. 64001-2500
Revision: B
Release Date: 01-20-03
Revision Date: 09-02-03
UNCONTROLLED COPY
Page 2 of 7
RHT2080 Hand Crimp Tool
Wire Combinations for Nylon- Insulated Closed End Connectors
Part No. 191600024 (NC-8)
Wire Gauge (AWG)
Wire Type
Rating
8
10
12
14
Wire Combinations for Nylon- Insulated Closed End Connectors
Part No. 191600024 (NC-8)
Wire Type
Wire Gauge (AWG)
Rating
8
10
12
14
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
16
4
3
3
3
3
3
3
3
2
2
2
2
2
2
1
1
18
1
8
7
6
5
4
3
2
9
8
7
6
5
4
11
10
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
Stranded only
16
1
1
1
1
1
18
9
8
7
6
5
12
11
10
9
8
7
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
UL & CSA
** -
Rated 300 Volts all others 600 Volts
Crimping Terminals
Open the tool by first closing the jaws sufficiently for the ratchet mechanism
to release.
JAWS SLIGHTLY CLOSED

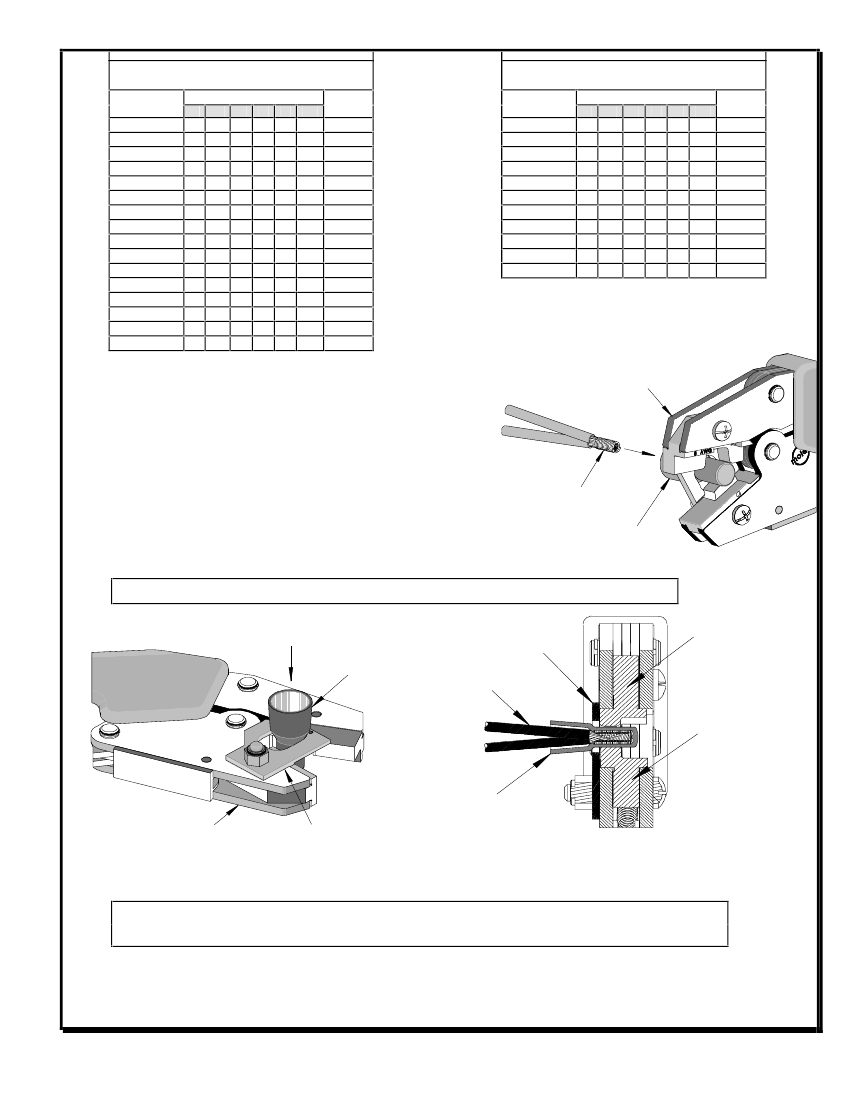

1. Hold hand tool with the locator facing up. Insert the closed end
connector in the correct slot (8). Make sure that the shoulder of the
PRE-TWISTED
connector is resting on the locator plate (See Figure 1).
WIRE
2. Close the hand tool jaws until the connector is held snug in place. Load
CONNECTOR
the connector with the desired wire combination (See Figure 2 and 3).
Figure 2
Complete the crimp by closing the hand tool handles until they release.
Note:
The tamper proof ratchet action will not release the tool until it has been fully closed.
DROP IN
THIS SIDE
CONNECTOR
LOCATOR
PRE-TWISTED
WIRE
CONDUCTOR
NVIL
CONDUCTOR
PUNCH
CONNECTOR
JAWS OPEN
Figure 1
LOCATOR
Figure 3
3. Remove the crimp and inspect for proper crimp location, and check for insulation closure. Molex offers a Crimp Inspection
Handbook for closed barrel industrial product. See our website or contact your sales engineer.
Note:
Whenever crimping without the locator, make sure the seam of the terminal is oriented up or down in the tool
if using unbrazed product, as this will provide higher pull force values.
Doc No. 64001-2500
Revision: B
Release Date: 01-20-03
Revision Date: 09-02-03
UNCONTROLLED COPY
Page 3 of 7
RHT2080 Hand Crimp Tool
Maintenance
It is recommended that each operator of the tool be made aware of,
and responsible for, the following maintenance steps:

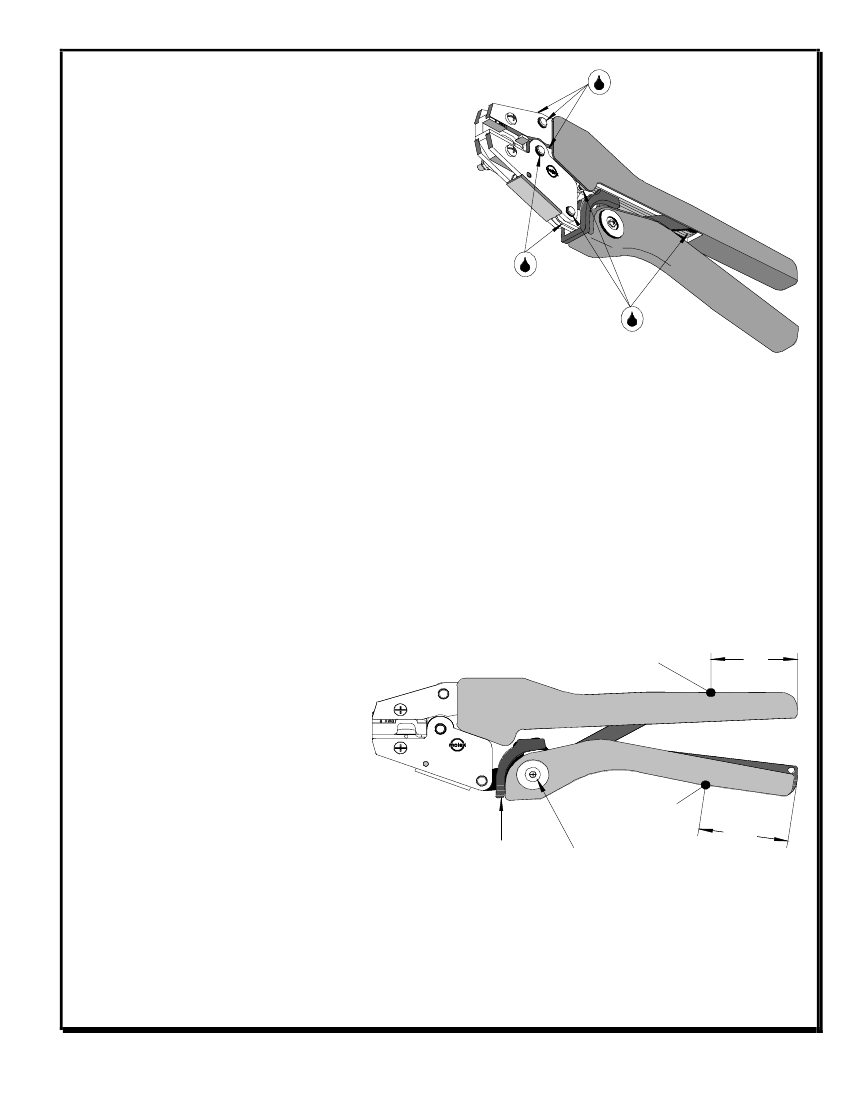

LUBRICATION POINTS
(BOTH SIDES)
LIGHT OIL (EVERY 3 MONTHS
OR 5,000 CRIMPS)
1. Remove dust, moisture and other contaminants with a clean brush,
or soft, lint-free cloth.
2. Do not use any abrasive materials that could damage the tool.
3. Make certain all pins; pivot points and bearing surfaces are
protected with a thin coat of high quality machine oil. Do not oil
excessively. The 64001-2500 (RHT-2080) was engineered for
durability, but like any fine piece of equipment it needs cleaning
and lubrication for a maximum service life of trouble-free
Figure 4
crimping. A light oil, such as 30 weight automotive oil used at the
oil points shown in Figure 4, every 5,000 crimps or 3 months will significantly enhance the tool life and ensure a stable calibration.
4. When tool is not in use, keep the handles closed to prevent objects from becoming lodged in the crimping dies, and store the tool in
a clean, dry area.
Miscrimps or Jams
Should this tool ever become stuck or jammed in a partially closed position,
Do Not
force the handles open or closed.
The tool will
open easily by pressing the ratchet release lever. See Figure 5.
How To Adjust Tool Preload
(See Figure 5)
It may be necessary over the life of the tool to adjust tool handle preload force. Listed below are the steps required to adjust the
PRELOAD
crimping force of the hand tool to obtain proper
1.00
TEST POINT
crimp conditions:
1. Remove the screw and plastic cover washer.
Note the setting wheel position.
2. Lift the setting wheel off the axle. Turn the
eccentric axle with a screwdriver.
3. Turning the eccentric axle counter-clockwise
(CCW) will increase handle force.
4. Replace the setting wheel to the axle, aligning
the nearest notch in the setting wheel to the
dowel pin.
5. Replace the plastic cover washer and screw.
6. Check the crimp specifications after tool
handle preload force is adjusted.
PRELOAD
TEST POINT
RATCHET
RELEASE LEVER
PUSH UP
PRELOAD
ADJUSTMENT
LOCKING SCREW
1.00
Figure 5
Doc No. 64001-2500
Revision: B
Release Date: 01-20-03
Revision Date: 09-02-03
UNCONTROLLED COPY
Page 4 of 7
RHT2080 Hand Crimp Tool
Tool Calibration
A Certificate of Calibration (see last page) was supplied with the tool. To
recalibrate this tool, pin gauge measurements should be taken in each
conductor nest and compared to this chart. The tool should be lubricated
prior to recalibration to ensure consistent measurements. Handle preload is
factory set to 25-45 LBS. See How to Adjust Tool Preload (See Figure 5) to
recalibrate.
PIN GAUGE IN
CONDUCTOR CRIMP
X
“ Confining ” Crimp
Wire Range
Awg mm²
8
8.50
“X” Dimension Conductor Crimp
Mean
Go
No Go
.140
.136
.146
Warranty
This tool is for electrical terminal crimping purposes only. This tool is made of the best quality materials. All vital components are long
life tested. All tools are warranted to be free of manufacturing defects for a period of
30 days.
Should such a defect occur, we will
repair or exchange the tool free of charge. This repair or exchange will not be applicable to altered, misused or damaged tools. This
tool is designed for hand use only. Any clamping, fixturing, or use of handle extensions voids this warranty.
Hand held crimping tools are intended for low volume, prototyping, or repair requirements only.
Caution:
Repetitive use of this tool should be avoided.
Doc No. 64001-2500
Revision: B
Release Date: 01-20-03
Revision Date: 09-02-03
UNCONTROLLED COPY
Page 5 of 7
京公网安备 11010802033920号
EEWORLD
