0402B223K160CT: DescriptionCAP CER 0.022UF 16V X7R 0402; CategoryPassive components capacitor; File Size233KB，1 Pages; ManufacturerWalsin Technology Corporation; Environmental Compliance

Download Datasheet Parametric View All

0402B223K160CT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0402B223K160CT	-	-	View	Buy Now

0402B223K160CT Overview

CAP CER 0.022UF 16V X7R 0402

0402B223K160CT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
JESD-609 code	e3
length	1 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	16 V
size code	0402
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

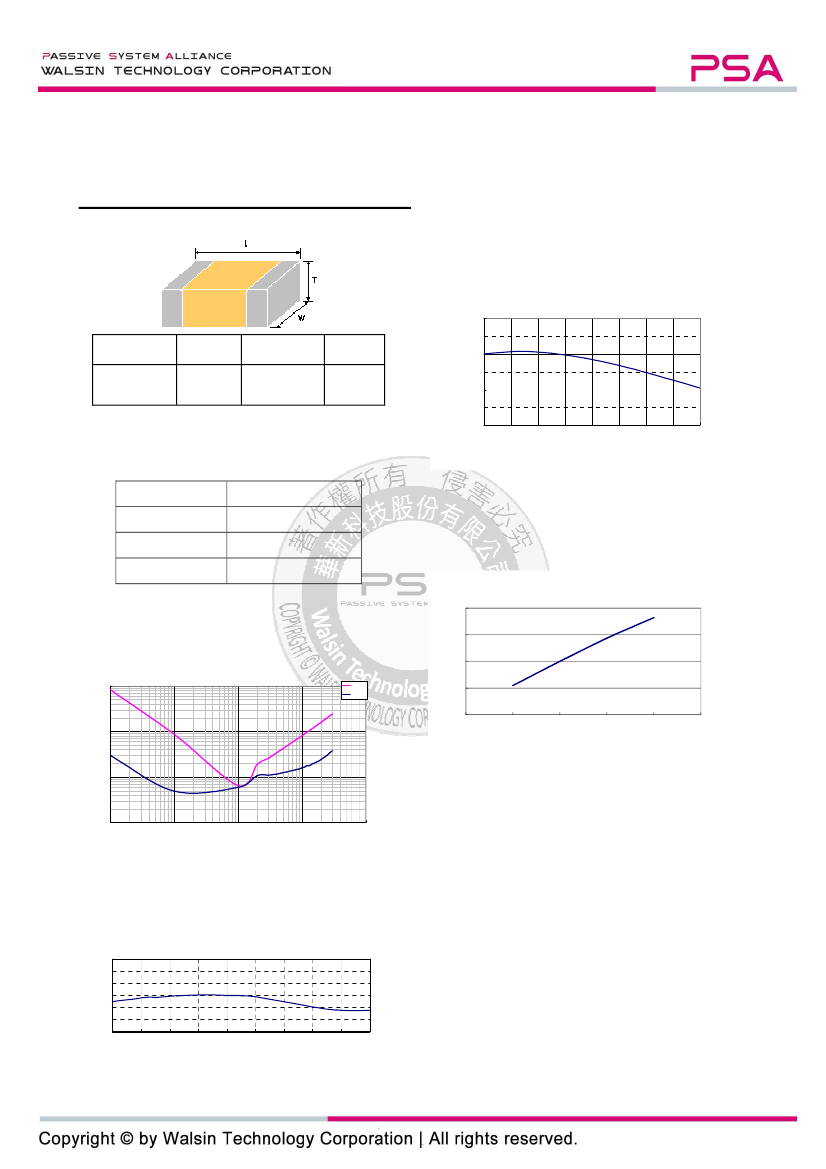

Chip Monolithic Ceramic Capacitor

Electrical Characteristics Data

0402 X7R 22nF 16V(0402B223K160CT)

1. Dimension

5. Capacitance – DC Voltage Characteristics

(Equipment: 4284A; DC charge 60±5sec)

8V : -2.40% ; 16V : -18.98%

△

C/C(%)

20

Size

Inch (mm)

0402

(1005)

L (mm)

1.00±0.05

W (mm)

0.50±0.05

T (mm)

0.50±0.05

0

-20

-40

2. Cap, DF, IR @25℃

(Cap, DF @1KHz, 1Vrms ; IR @16V, 120sec)

Item

Cap [nF]

DF

IR [G-ohm]

Spec

22(±10%)

≦3.5%

>10

△

C/C(%)

10

0

2

4

6

8

10

12

14

16

DC Voltage (V)

6. Capacitance – AC Voltage Characteristics

(Equipment: 4284A)

3. Impedance/ESR-Frequency

(Equipment: 4287A)

10

Z

ESR

5

0

-5

-10

0

Z, ESR(ohm)

1

0.5

1

AC Voltage (V)

1.5

2

2.5

0.1

0.01

1

10

100

Frequency(MHz)

1000

10000

4. Capacitance – Temperature Characteristics

(Equipment: 4284A)

△

C/C(％)

％

30

20

10

0

-10

-20

-30

-55

-35

-15

5

25

45

65

85

105

125

℃

Last updated : 2018/06/12
