0402B104K100CT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 0402B104K100CT

Preview

0402B104K100CT: DescriptionCAP CER 0.1UF 10V X7R 0402; CategoryPassive components capacitor; File Size260KB，1 Pages; ManufacturerWalsin Technology Corporation; Environmental Compliance

Download Datasheet Parametric View All

0402B104K100CT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0402B104K100CT	-	-	View	Buy Now

0402B104K100CT Overview

CAP CER 0.1UF 10V X7R 0402

0402B104K100CT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.1 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.5 mm
JESD-609 code	e3
length	1 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	10 V
size code	0402
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

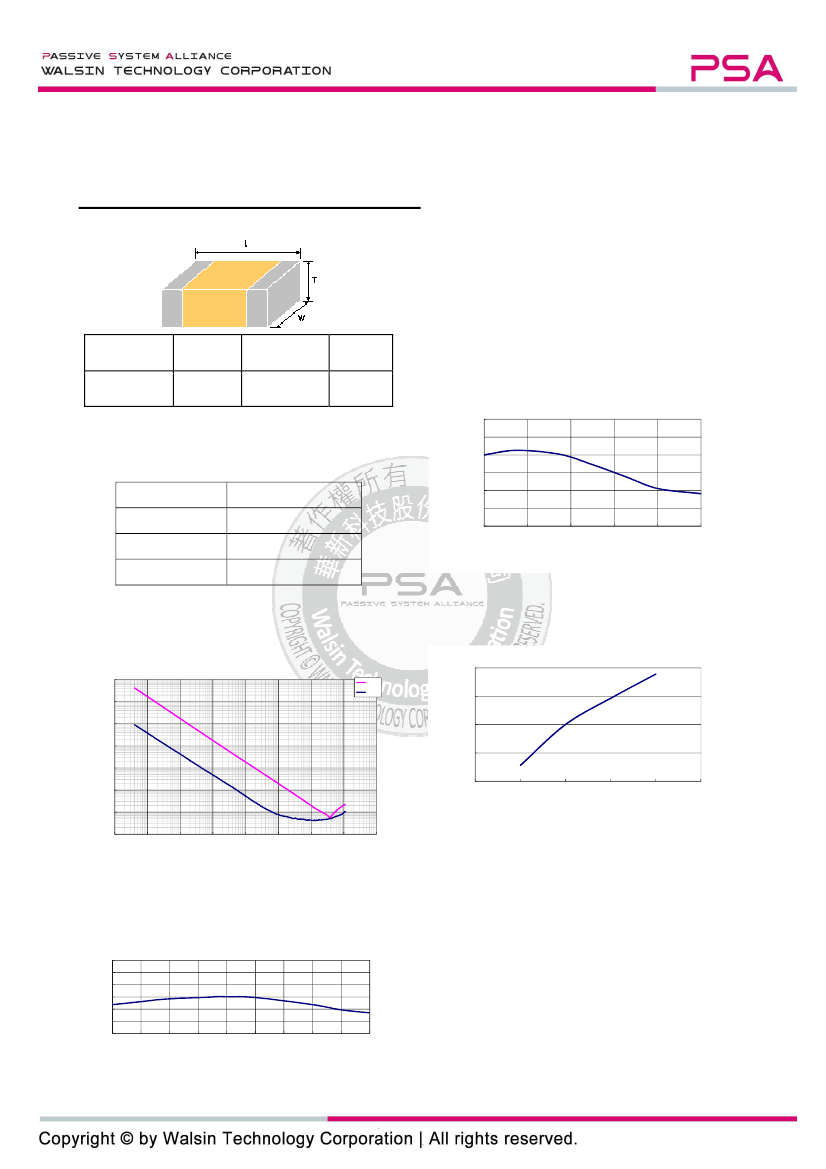

Chip Monolithic Ceramic Capacitor

Electrical Characteristics Data

0402 X7R 100nF 10V(0402B104K100CT)

1. Dimension

5. Temperature Rise – Ripple Current

(Equipment: 11810)

Over the measure limit.

6. Capacitance – DC Voltage Characteristics

Size

Inch (mm)

0402

(1005)

L (mm)

1.00±0.05

W (mm)

0.50±0.05

T (mm)

0.50±0.05

(Equipment: 4284A; DC charge 60±5sec)

5V : -5.50% ; 10V : -21.80%

C/C(%)

20

2. Cap, DF, IR @25℃

(Cap, DF @1KHz, 1Vrms ; IR @10V, 120sec)

0

-20

Item

Cap [nF]

DF

IR [G-ohm]

Spec

100(±10%)

≦5%

DC Voltage (V)

-40

0

2

4

6

8

10

>5

7. Capacitance – AC Voltage Characteristics

3. Impedance/ESR-Frequency

(Equipment: 4294A)

100000

10000

1000

ESR,Z(ohm)

Z

ESR

(Equipment: 4284A)

C/C(%)

8

4

0

100

-4

10

-8

1

0.1

0.01

0

0.5

1

AC Voltage (V)

1.5

2

2.5

0.1

1

10

100

1000

Frequency(KHz)

10000

100000

1000000

4. Capacitance – Temperature Characteristics

(Equipment: 4284A)

△

C/C(％)

％

30

20

10

0

-10

-20

-30

-55

-35

-15

5

25

45

65

85

105

125

℃

Last updated : 2018/07/18
