0603B473K160CT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 0603B473K160CT

0603B473K160CT: DescriptionCAP CER 0.047UF 16V X7R 0603; CategoryPassive components capacitor; File Size240KB，1 Pages; ManufacturerWalsin Technology Corporation; Environmental Compliance

Download Datasheet Parametric View All

0603B473K160CT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0603B473K160CT	-	-	View	Buy Now

0603B473K160CT Overview

CAP CER 0.047UF 16V X7R 0603

0603B473K160CT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Walsin Technology Corporation
package instruction	, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.047 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.8 mm
JESD-609 code	e3
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	16 V
size code	0603
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

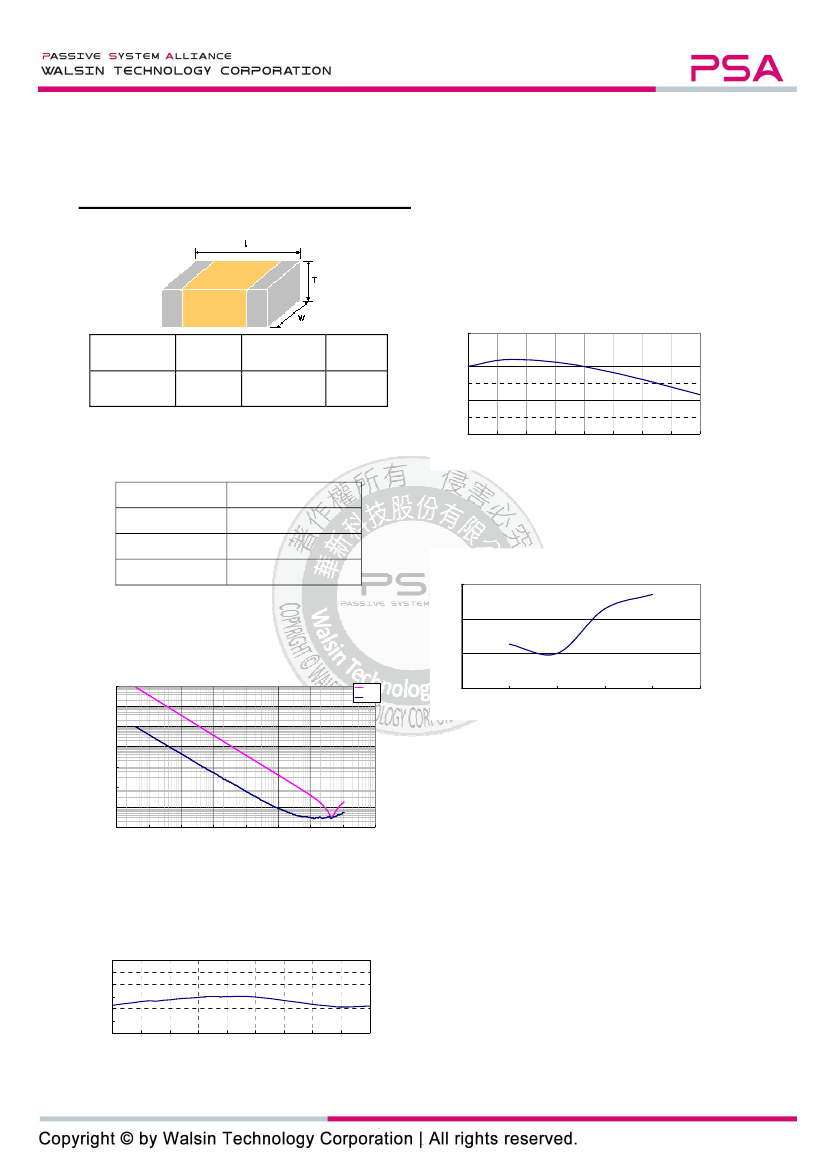

Chip Monolithic Ceramic Capacitor

Electrical Characteristics Data

0603 X7R 47nF 16V(0603B473K160CT)

1. Dimension

5. Capacitance – DC Voltage Characteristics

(Equipment: 4284A; DC charge 60±5sec)

8V : 0.86% ; 16V : -16.88%

△

C/C(%)

Size

Inch (mm)

0603

(1608)

L (mm)

1.60±0.10

W (mm)

0.80±0.10

T (mm)

0.80±0.07

-20

-40

2. Cap, DF, IR @25℃

(Cap, DF @1KHz, 1Vrms ; IR @16V, 120sec)

Item

Cap [nF]

IR [G-ohm]

Spec

47(±10%)

≦3.5%

DC Voltage (V)

6. Capacitance – AC Voltage Characteristics

(Equipment: 4284A)

△

C/C(%)

> 10

3. Impedance/ESR-Frequency

(Equipment: 4294A)

100000

10000

1000

ESR,Z(ohm)

100

0.1

0.01

ESR

-5

0.5

AC Voltage (V)

1.5

2.5

0.1

100

1000

Frequency(KHz)

10000

100000

1000000

4. Capacitance – Temperature Characteristics

(Equipment: 4284A)

△

C/C(％)

％

-10

-20

-30

-55

-35

-15

105

125

℃

Last updated : 2018/06/19
