0603B681K101CT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 0603B681K101CT

0603B681K101CT: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00068uF, Surface Mount, 0603, CHIP; CategoryPassive components capacitor; File Size233KB，1 Pages; ManufacturerWalsin Technology Corporation; Environmental Compliance

Download Datasheet Parametric View All

0603B681K101CT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0603B681K101CT	-	-	View	Buy Now

0603B681K101CT Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.00068uF, Surface Mount, 0603, CHIP

0603B681K101CT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1804875577
package instruction	, 0603
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	7
capacitance	0.00068 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.8 mm
JESD-609 code	e3
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	100 V
size code	0603
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.8 mm

Preview

Download Datasheet

View All

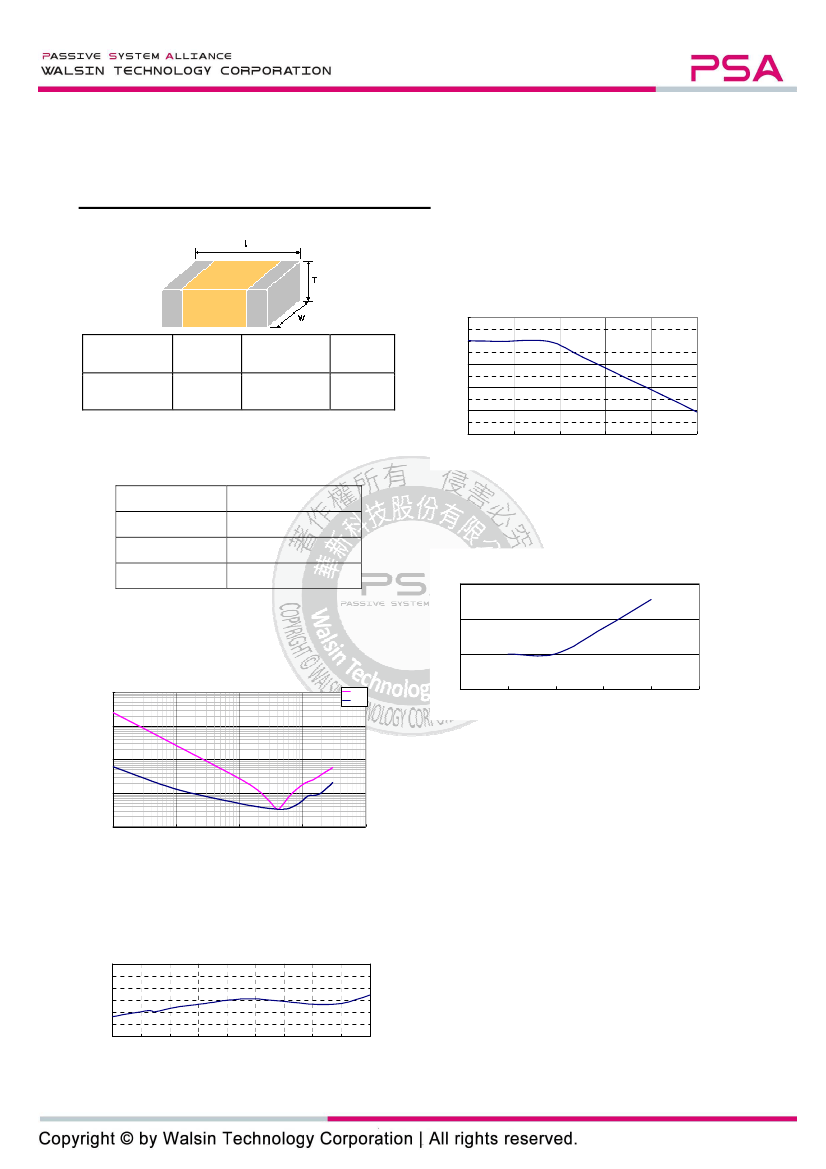

Chip Monolithic Ceramic Capacitor

Electrical Characteristics Data

0603 X7R 680pF 100V(0603B681K101CT)

1. Dimension

5. Capacitance – DC Voltage Characteristics

(Equipment: 4284A; DC charge 60±5sec)

50V : -7.07% ; 100V : -30.60%

△

C/C(%)

Size

Inch (mm)

0603

(1608)

L (mm)

1.60±0.10

W (mm)

0.80±0.10

T (mm)

-10

0.80±0.07

-20

-30

-40

2. Cap, DF, IR @25℃

(Cap, DF @1MHz, 1Vrms ; IR @100V, 120sec)

Item

Cap [pF]

IR [G-ohm]

Spec

680(±10%)

≦2.5%

> 10

100

DC Voltage (V)

6. Capacitance – AC Voltage Characteristics

(Equipment: 4284A)

△

C/C(%)

3. Impedance/ESR-Frequency

(Equipment: 4287A)

1000

ESR

-1

0.5

AC Voltage (V)

1.5

2.5

100

Z, ESR(ohm)

0.1

100

Frequency(MHz)

1000

10000

4. Capacitance – Temperature Characteristics

(Equipment: 4284A)

△

C/C(％)

％

-10

-20

-30

-55

-35

-15

105

125

℃

Last updated : 2018/06/19
