CRGP0805F56R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> CRGP0805F56R

CRGP0805F56R: DescriptionCRGP 0805 56R 1%; CategoryPassive components; File Size535KB，10 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

CRGP0805F56R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CRGP0805F56R	-	-	View	Buy Now

CRGP0805F56R Overview

CRGP 0805 56R 1%

CRGP0805F56R Parametric

Parameter Name	Attribute value
Resistor type	Universal resistor
size code	805
Component type	thick film
Number of resistors	1
Tolerance	1%
Resistance range (Ω)	up to 1 kΩ
Resistance (Ω)	56
Rated power (W)	.33
Rated voltage (V)	150
Number of terminations	2
Termination type	welding
Installation method	surface mount
Dimensions (mm)	2 x 1.25 x .55
Temperature coefficient (ppm/°C)	±100
Encapsulation method	stick and roll

Preview

Download Datasheet

View All

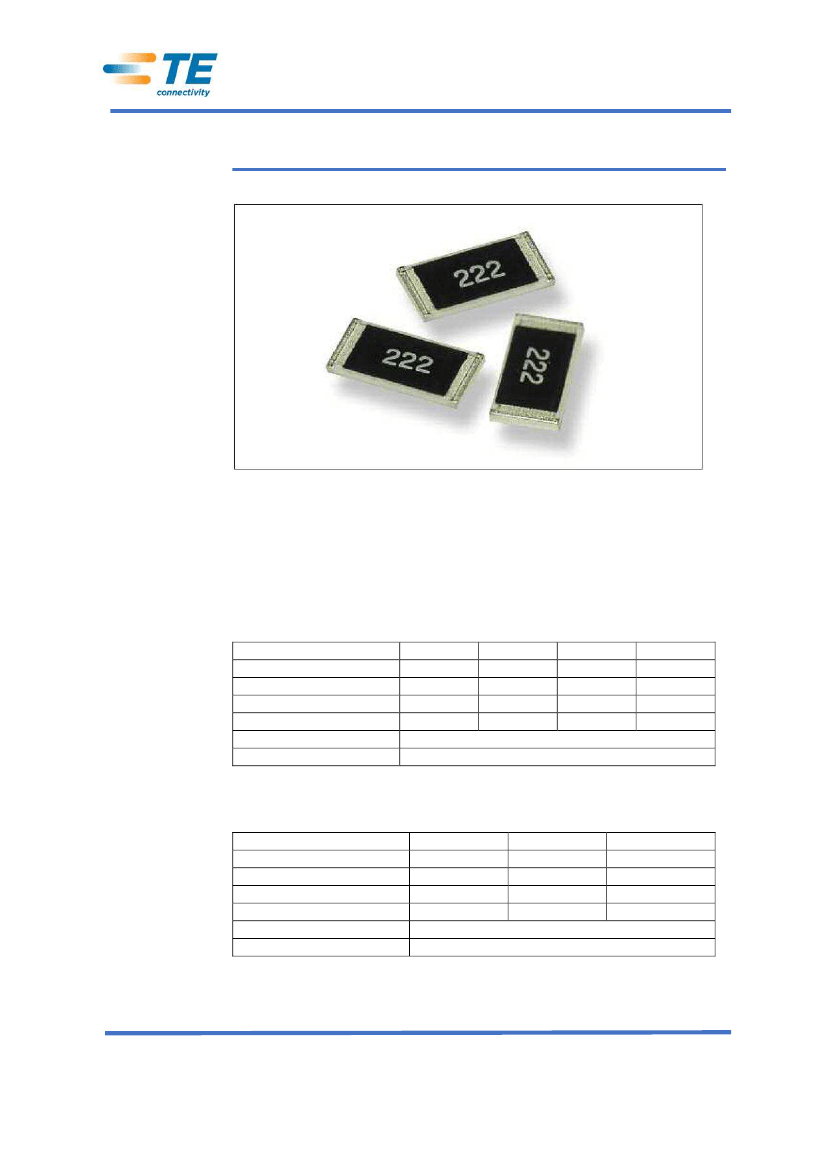

SMD Precision Pulse Thick Film Chip Resistor

Type CRGP Series

Key Features

Small size and

light weight

Suitable for

both wave and

reflow

soldering

techniques

Supplied on

tape

Pulse Rated

7 different

package sizes

Terminal finish

matte Sn over

TE Connectivity is pleased to introduce this SMD Pulse withstand thick film Chip

resistor, suitable for auto placement in volume and for most applications.

Available in five different packages and supplied on tape and reel for automatic

insertion processes. Standard values

–

E24 Series

Characteristics

–

Electrical

Type

Power Rating @ 70°C

Max. Working Voltage

Max. Overload Voltage

Dielectric Withstand

Temperature Range

Ambient Temperature

CRGP0402

0.125W

50V

100V

CRGP0603 CRGP0805

0.25W

0.33W

50V

150V

100V

300V

500V

-55°C ~ +155°C

70°C

CRGP1206

0.5W

200V

400V

500V

Type

Power Rating @ 70°C

Max. Working Voltage

Max. Overload Voltage

Dielectric Withstand

Temperature Range

Ambient Temperature

CRGP1210

0.75W

200V

500V

CRGP2010

CRGP2512

1.25W

400V

500V

800V

1000V

500V

-55°C ~ +155°C

70°C

9-1773463-9 CIS WR 03/2018

Dimensions in

millimetres unless

otherwise specified

Dimensions Shown for

reference purposes only.

Specifications subject to

change

For Email, phone or live chat,

go to: www.te.com/help
