0805B104J500CT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 0805B104J500CT

Preview

0805B104J500CT: DescriptionCAP CER 0.1UF 50V X7R 0805; CategoryPassive components capacitor; File Size279KB，1 Pages; ManufacturerWalsin Technology Corporation; Environmental Compliance

Download Datasheet Parametric View All

0805B104J500CT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0805B104J500CT	-	-	View	Buy Now

0805B104J500CT Overview

CAP CER 0.1UF 50V X7R 0805

0805B104J500CT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.1 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.8 mm
JESD-609 code	e3
length	2 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 7 INCH
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
size code	0805
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	1.25 mm
Base Number Matches	1

Preview

Download Datasheet

View All

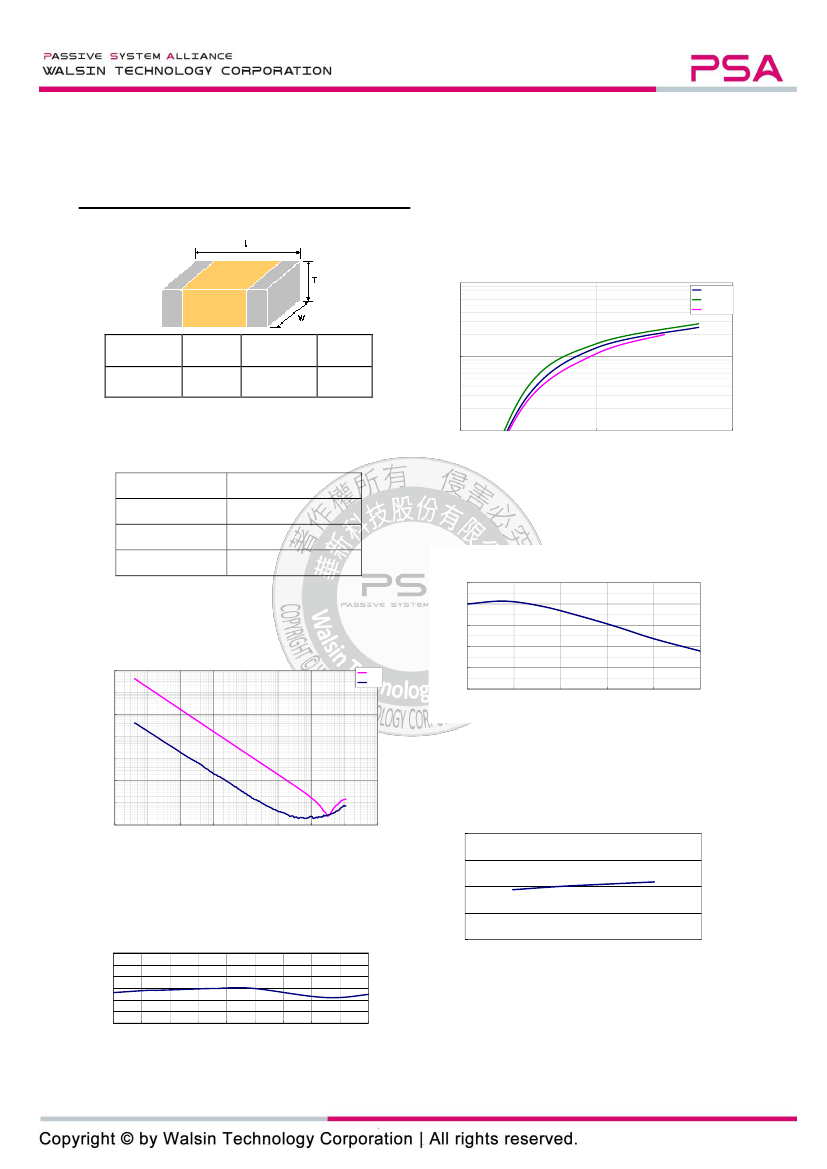

Chip Monolithic Ceramic Capacitor

Electrical Characteristics Data

0805 X7R 0.1uF 50V(0805B104J500CT)

1. Dimension

5. Temperature Rise – Ripple Current

(Equipment: 11810)

100

1000KHz

750KHz

500KHz

Size

Inch (mm)

0805

(2012)

L (mm)

2.00±0.15

W (mm)

1.25±0.10

T (mm)

0.80±0.10

Temperature Rise (deg.C)

10

2. Cap, DF, IR @25℃

(Cap, DF @1KHz, 1Vrms ; IR @50V, 120sec)

Item

Cap [uF]

DF

IR [G-ohm]

Spec

0.1 (±5%)

≦2.5%

1

0

1

Ripple Current (Arms)

2

6. Capacitance – DC Voltage Characteristics

(Equipment: 4284A; DC charge 60±5sec)

25V : -11.14% ; 50V : -44.33%

△C/C(%)

>5

20

0

3. Impedance/ESR-Frequency

(Equipment: 4294A)

100000

10000

1000

Z

ESR

-20

-40

-60

-80

0

10

20

30

40

50

DC Voltage (V)

ESR,Z(ohm)

100

10

7. Capacitance – AC Voltage Characteristics

(Equipment: 4284A)

△C/C(%)

0.1

1

10

100

1000

Frequency(KHz)

10000

100000

1000000

1

0.1

0.01

30

15

4. Capacitance – Temperature Characteristics

(Equipment: 4284A)

△C/C(％)

30

20

0

-15

-30

0

0.5

1

AC Voltage (V)

1.5

2

2.5

10

0

-10

-20

-30

-55

-35

-15

5

25

45

65

85

105

125

℃

Last updated : 2018/05/21
