(3/11)
E M C
C o m p o n e n t s
Product compatible with RoHS directive
Halogen-free
Compatible with lead-free solders
AEC-Q200
Chip beads
For general signal line
Soft termination
Overview of KMZ1608-HR type
FEATURES
Noise reduction solution for general signal line.
Various frequency characteristics with 6 materials of different features for countermeasures against everything from general signals to
high-speed signals.
Guide electric property resin absorbs external stress, and mechanical stress, resistance force to thermal shock is improved.
Easing by conductive resin thermal stress, and respond for High-temperature environment of 150 °C, too.
APPLICATION
Various ECUs, powertrains, body controls, and car multimedia (telematics).
PART NUMBER CONSTRUCTION
KMZ
Series name
1608
L×W×T dimensions
(mm)
1608
1.6×0.8x0.6
1.6×0.8x0.8
B
Material
name
A
B
D
R
S
Y
HR
Specifications
(Grade)
Soft
HR
termination
601
Impedance
() at 100MHz
601
102
600
1000
C
Characteristic
type
C
A
B
T
Packaging style
T
Taping
DH5
Internal
code
DH5
D25
OPERATING TEMPERATURE RANGE, PACKAGE QUANTITY, PRODUCT WEIGHT
Temperature range
Operating
Storage
temperature
temperature*
（°C）
（°C）
t=0.6mm (DH5)
–55 to +150
–55 to +150
KMZ1608-HR
t=0.8mm (D25)
–55 to +150
–55 to +150
The storage temperature range is for after the circuit board is mounted.
Type
Package quantity
Individual weight
(pieces/reel)
4,000
4,000
（mg）
3
4
RoHS Directive Compliant Product: See the following for more details.https://product.tdk.com/info/en/environment/rohs/index.html
Halogen-free: Indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20180521 / beads_automotive_signal_kmz1608-hr_en.fm
(5/11)
E M C
C o m p o n e n t s
KMZ1608-HR type
MATERIAL CHARACTERISTIC
B material: This type is perfectly suited for fast digital signals. By equalizing R components and X components that beads possess at a
frequency of 5MHz, it is able to suppress overshooting, undershooting and ringing of fast digital signals.
R material: For wide frequency applications calling for broad impedance characteristics. For digital signal line applications calling
requiring good waveform integrity. Impedance values selected for effectiveness at 10 to 200MHz.
S material: Standard type that features impedance characteristics similar to those of a typical ferrite core. For signal line applications in
which the blocking region is near 100MHz. Impedance values selected for effectiveness at 40 to 300MHz.
Y material: High frequency range type intended for the 100MHz region and above. For signal line applications in which the signal
frequency is far from the cutoff frequency. Impedance values selected for effectiveness at 80 to 400MHz.
A material: This high-impedance product is based on the impedance frequency characteristics of our Y-material. The product offers
excellent impedance characteristics, which is greater than 2500, in the vicinity of 100MHz range (KMZ1608AHR252B).
D material: For applications calling for low insertion loss at low frequencies and sharply increasing impedance at high frequencies.
Designed for high impedance at high frequencies (300MHz to 1GHz) for signal line applications.

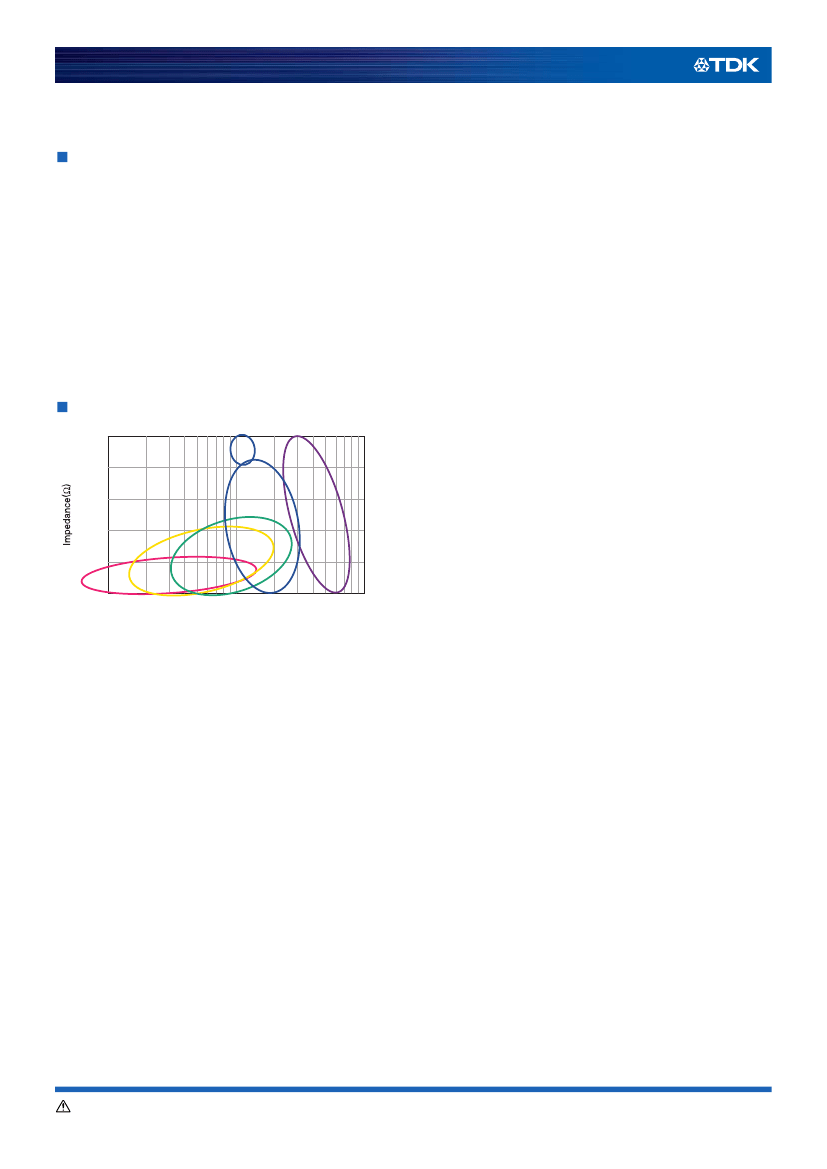

TYPICAL MATERIAL IMPEDANCE CHARACTERISTICS
2500
A
2000
1500
1000
500
B
0
10
100
Frequency(MHz)
1000
R
S
Y
D
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20180521 / beads_automotive_signal_kmz1608-hr_en.fm
