KITSQ1600LF: DescriptionCAP KIT CERAMIC 10PF-100PF 240PC; CategoryDevelopment board/suite/development tools; File Size1MB，6 Pages; ManufacturerAVX

Download Datasheet Parametric View All

KITSQ1600LF Overview

CAP KIT CERAMIC 10PF-100PF 240PC

KITSQ1600LF Parametric

Parameter Name	Attribute value
Kit type	ceramics
Capacitance range	10pF ~ 100pF
Installation type	Surface mount, MLCC
Voltage - Rated	250V
Tolerance	±5%
application	RF, microwave, high frequency
characteristic	High Q value, low loss
quantity	240 pieces (16 values - 15 pieces each)
Includes packaging	0603 (1608 Metric)

Preview

Download Datasheet

View All

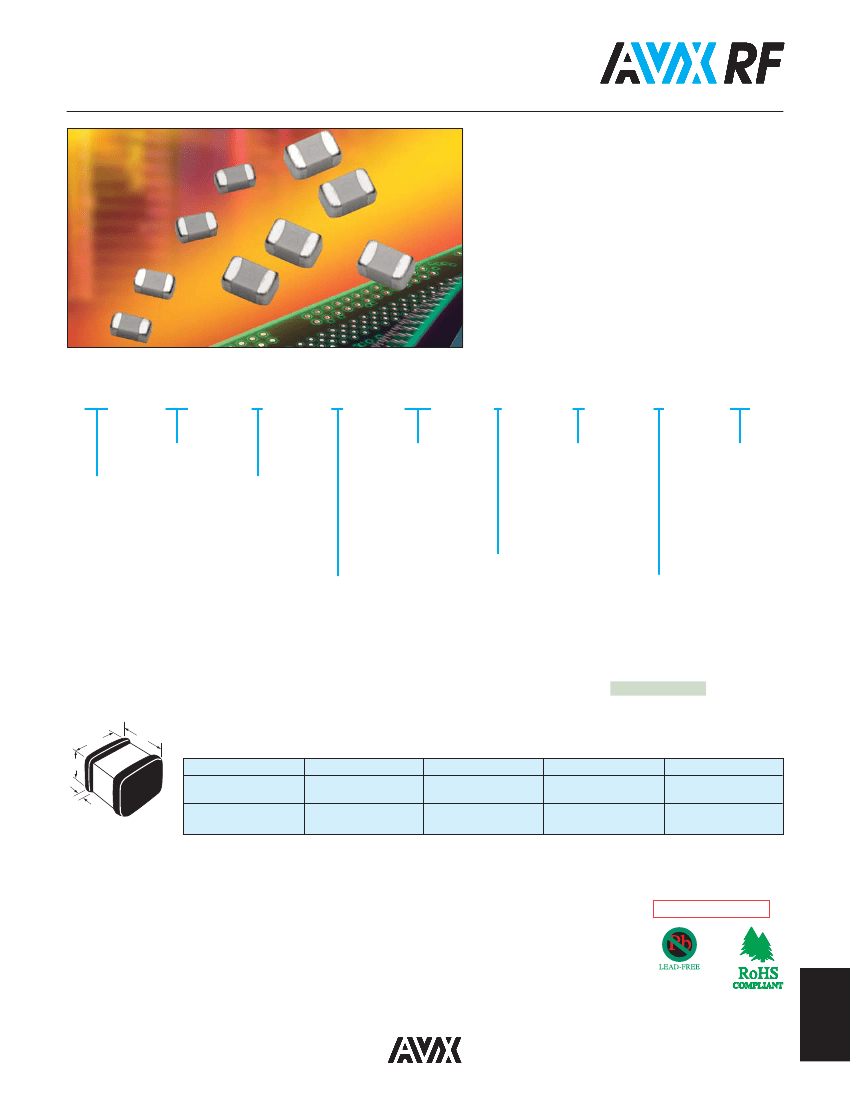

Microwave MLC’s

SQCS (0603) SQCF (0805) Ultra Low ESR MLC

FEATURES:

•

Low ESR

High Q

High Self Resonance

Capacitance Range 0.1 pF to 240 pF

EIA Size

APPLICATIONS:

•

RF Power Amplifiers

Low Noise Amplifiers

Filter Networks

Point to Point Radios

HOW TO ORDER

100

Case Size

CS = 0603

CF = 0805

Capacitance

Voltage

Code

V = 250V

EIA Capacitance Code in pF.

First two digits = significant

figures or “R” for decimal

place.

Third digit = number of zeros

or after “R” significant figures.

Failure Rate

Code

A = Not

Applicable

Packaging Code

1A = 7" Reel Unmarked

ME = 7" Reel Marked

* Vertical T&R available

* 500 piece reels available

AVX Style

Temperature

Coefficient Code

A = 0±30ppm/°C

Capacitance

Tolerance Code

A = ±.05 pF

B = ±.1 pF

C = ±.25 pF

D = ±.5 pF

F = ±1%

G = ±2%

J = ±5%

Termination

Style Code

**7

= Ag/Ni/Au

J = Nickel Barrier

Sn/Pb (60/40)

**T

= 100% Tin

(Standard)

**RoHS compliant

MECHANICAL DIMENSIONS:

Case

SQCS

inches (millimeters)

Width (W)

.032±.006

(.813±.152)

.049±.008

(1.24±.200)

A 1J

Length (L)

.063±.006

(1.60±.152)

.079±.008

(2.01±.200)

Thickness (T)

.030 Max.

(.762)

.045 Max.

(1.14)

Band Width (bw)

.014±.006

(.357±.152)

.014±.006

(.357±.152)

SQCF

TAPE & REEL:

All tape and reel specifications are in compliance with EIA RS481 (equivalent to IEC 286 part 3).

—8mm carrier

—7" reel = 4000 pcs (500 piece options)

Not RoHS Compliant

LEAD-FREE COMPATIBLE

COMPONENT

For RoHS compliant products,

please select correct termination style.

12132017

199
