EBA28DCTT-S288

Description
Card Edge Connector, 56 Contact(s), 2 Row(s), Right Angle, 0.125 inch Pitch, Surface Mount Terminal, Locking
CategoryThe connector    The connector
File Size529KB,2 Pages
ManufacturerSullins Connector Solutions
Environmental Compliance
Download Datasheet Parametric View All

EBA28DCTT-S288 Overview

Card Edge Connector, 56 Contact(s), 2 Row(s), Right Angle, 0.125 inch Pitch, Surface Mount Terminal, Locking

EBA28DCTT-S288 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid309441315
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL6
body width0.37 inch
subject depth0.61 inch
body length4.305 inch
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedMatte Tin (Sn) - with Nickel (Ni) barrier
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleBELLOWED TYPE
Filter functionNO
insulator materialPOLYBUTYLENE TEREPHTHALATE
JESD-609 codee3
Plug contact pitch0.125 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
PCB contact patternRECTANGULAR
Plating thickness10u inch
Rated current (signal)3 A
Terminal pitch3.175 mm
Termination typeSURFACE MOUNT
Total number of contacts56
Female Card Edge
.125” [3.18 mm] Contact Centers, .610” [15.49 mm] Insulator Height,
Dip Solder/Wire Wrap/Right Angle

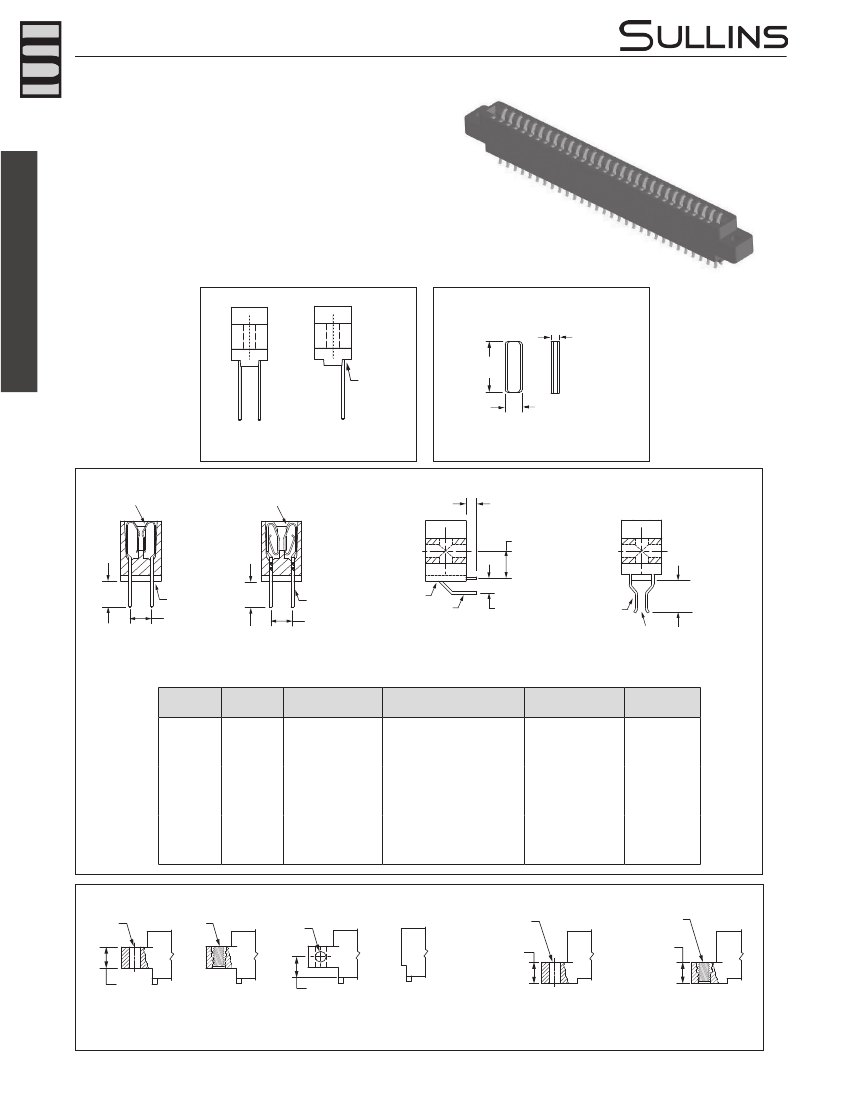

SPECIFICATIONS
• Accommodates .062” ± .008” [1.57 mm ± 0.20 mm] PC board
(See following pages for .093” ± .008” [2.36 mm ± 0.20 mm]
and .125” ± .008” [3.18 mm ± 0.20 mm] mating PCB)
• PBT, PPS or PA9T insulator
• Molded-in key available
• 3 Amps current rating for one contact energized
• 30 milli Ohms maximum at rated current
• UL Flammability Rating: 94V-0
Sullins Female Card Edge
READOUT
POLARIZING KEY
PLC-K1
.038”
[0.97]
.285”
[7.24]
EVEN
NUMBER
SIDE
.100” [2.54]
DUAL (D)
HALF LOADED (H)
KEY IN BETWEEN CONTACTS
(ORDER SEPARATELY)
TERMINATION TYPE
HAIRPIN BELLOWS
LOOP BELLOWS
L
.275” [6.98]
L
K
.250” [6.35]
L
K
.250” [6.35]
ODD
NUMBER
SIDE
K
.150” [3.81]
K
L - .015” [0.38]
ACCEPTS .062” [1.57] PCB
HAIRPIN BELLOWS
(CS,CM,CW,CT)
LOOP BELLOWS
(TK,RS,RM,CK)
RIGHT ANGLE, DIP SOLDER
(CA,CB,CC,TA,TB,TM)
CARD EXTENDER
REQUIRES -S288 MODIFICATION CODE
(CS,CM,CT,RS,CK,TK,RM)
HAIRPIN
BELLOWS
CM
CA
CB
CC
CW
CT
CS
LOOP
BELLOWS
TK, CK
RS
RM
TA
TB
TM
TERMINATION
TYPE
DIP SOLDER
DIP SOLDER
WIRE WRAP
RIGHT ANGLE
RIGHT ANGLE
RIGHT ANGLE
DIP SOLDER
DIP SOLDER
DIP SOLDER
POST CROSS SECTION
K
.025ʺ [0.64] ROUND
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.025ʺ [0.64] SQUARE
.015ʺ X .025ʺ [0.38 X 0.64]
.015ʺ X .025ʺ [0.38 X 0.64]
.025ʺ [0.64] SQUARE
POST LENGTH
L ± .025”ʺ [0.64]
.190ʺ [4.83]
.190ʺ [4.83]
.560ʺ [14.20]
.100ʺ [2.54]
.180ʺ [4.57]
.250ʺ [6.35]
.125ʺ [3.18]
.170ʺ [4.32]
.160ʺ [4.06]
FITS MIN.
HOLE SIZE
.033ʺ [0.84]
.040ʺ [1.02]
.040ʺ [1.02]
.043ʺ [1.09]
.043ʺ [1.09]
.043ʺ [1.09]
.035ʺ [0.89]
.035ʺ [0.89]
.040ʺ [1.02]
MOUNTING STYLE
Ø.125”
[3.18]
#4-40
Ø.125”
[3.18]
Ø.125” [3.18]
D = .250” [6.35]
W = .430” [10.92]
.250”
[6.35]
.245”
[6.22]
#4-40
T = .250” [6.35]
X = .430” [10.92]
CLEARANCE
HOLE (H)
THREADED
INSERT (I)
SIDE MOUNTING
(S)
NO MOUNTING
EARS (N)
FLUSH MOUNTING
(D, W)
FLUSH MOUNTING WITH
THREADED INSERT
(T, X)
64
www.sullinscorp.com
|
760-744-0125
|
toll-free 888-774-3100
|
fax 760-744-6081
|
