EHT-117-01-F-D-SM datasheet, PDF

Datasheet> All Categories > The connector> The connector> EHT-117-01-F-D-SM

EHT-117-01-F-D-SM: Description2MM EJECTOR HEADER; CategoryThe connector The connector; File Size161KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

EHT-117-01-F-D-SM Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EHT-117-01-F-D-SM	-	-	View	Buy Now

EHT-117-01-F-D-SM Overview

2MM EJECTOR HEADER

EHT-117-01-F-D-SM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Samacsys Description	34 Position, 2.00 mm Shrouded IDC Ejector Header
Other features	POLARIZED
body width	0.3 inch
subject depth	0.375 inch
body length	1.881 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (3)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	EHT
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.334 mm
Plating thickness	3u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	34
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

F-218

EC2–12

EHT–120–01–F–D–SM–LC

(2.00 mm) .0787"

EHT–112–01–L–D

EHT, EC2 SERIES

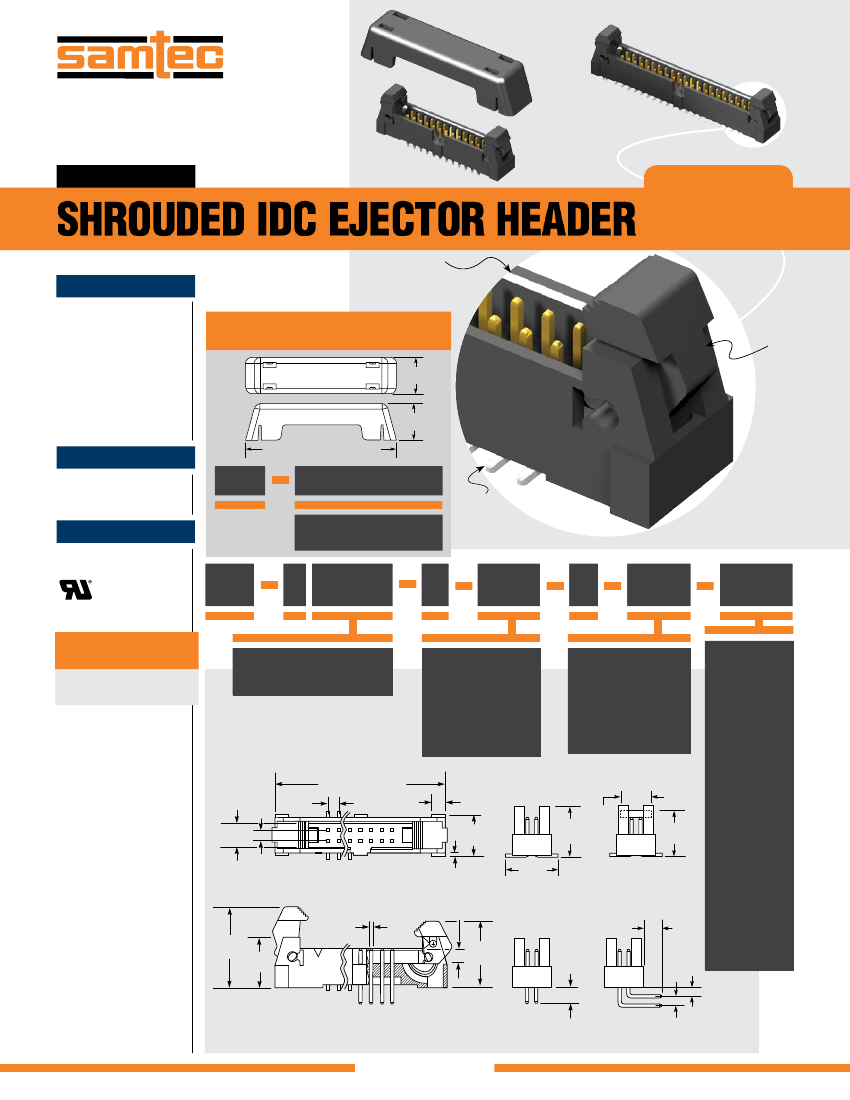

SHROUDED IDC EJECTOR HEADER

SPECIFICATIONS

For complete specifications and

recommended PCB layouts

see www.samtec.com?EHT

Insulator Material:

Black Liquid Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn or Au over

50 µ" (1.27 µm) Ni

Operating Temp Range:

-55 °C to +125 °C

RoHS Compliant:

Yes

Mates with:

TCSD

Ten standard

sizes mate with

common 2 mm IDC

cable assemblies

Ejector

latches

(Locks TCSD cable to EHT header)

(9.65)

.380

EJECTOR HEADER CAP

(9.65)

.380

No. of positions x (2.00) .0787

+ (19.89) .783

PROCESSING

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0.10 mm) .004" max

EC2

NO. PINS PER ROW

05, 08, 10, 12, 13,

15, 17, 20, 22, 25

Straight

through-hole,

right-angle, or

surface mount

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

EHT

NO. PINS

PER ROW

PLATING

OPTION

TAIL

OPTION

OTHER

OPTION

ALSO AVAILABLE

(MOQ Required)

• Other platings

Contact Samtec.

05, 08, 10, 12, 13,

15, 17, 20, 22, 25

= Gold flash on post,

Matte Tin on tail

= 10 µ" (0.25 µm)

Gold on post,

Matte Tin on tail

–F

Leave blank

for Through-hole

= Polarized Position

–“XX”

–SR

–LC

–L

= Right-angle

–RA

= Surface Mount

–SM

= Strain Relief

(Leave Blank for

no strain relief)

No. of positions x (2.00) .0787

+ (13.79) .543

(2.00)

.0787

(4.51)

.178

(2.00)

.0787

(2.54)

.100

(7.62)

.300

(0.51)

.020

(3.05)

.120

(12.19)

.480

(8.89)

.350

–SM

= Locking Clip

(–SM only)

(Manual placement

required)

(8.26)

.325

(9.53)

.375 (6.02)

.237

(8.58)

.338

–P

= (6.50 mm) .256"

DIA Polyimide Film

Pick & Place Pad

(–SM only)

–K

(15.07)

.593

(0.50)

.020 SQ

(9.40)

.370

(3.05)

.120

= Pick & Place Pad

(–SM only)

–P

(2.90)

.114

(2.00)

.0787

= Tape & Reel

(–SM only)

–TR

–SR

–RA

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(Latch removed for clarity)

Due to technical progress, all designs, specifications and components are subject to change without notice.

(1.52)

.060

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM
