ER1032-042MELAC Overview

ER1032-042MELAC, 4N/C+2N/O, M20

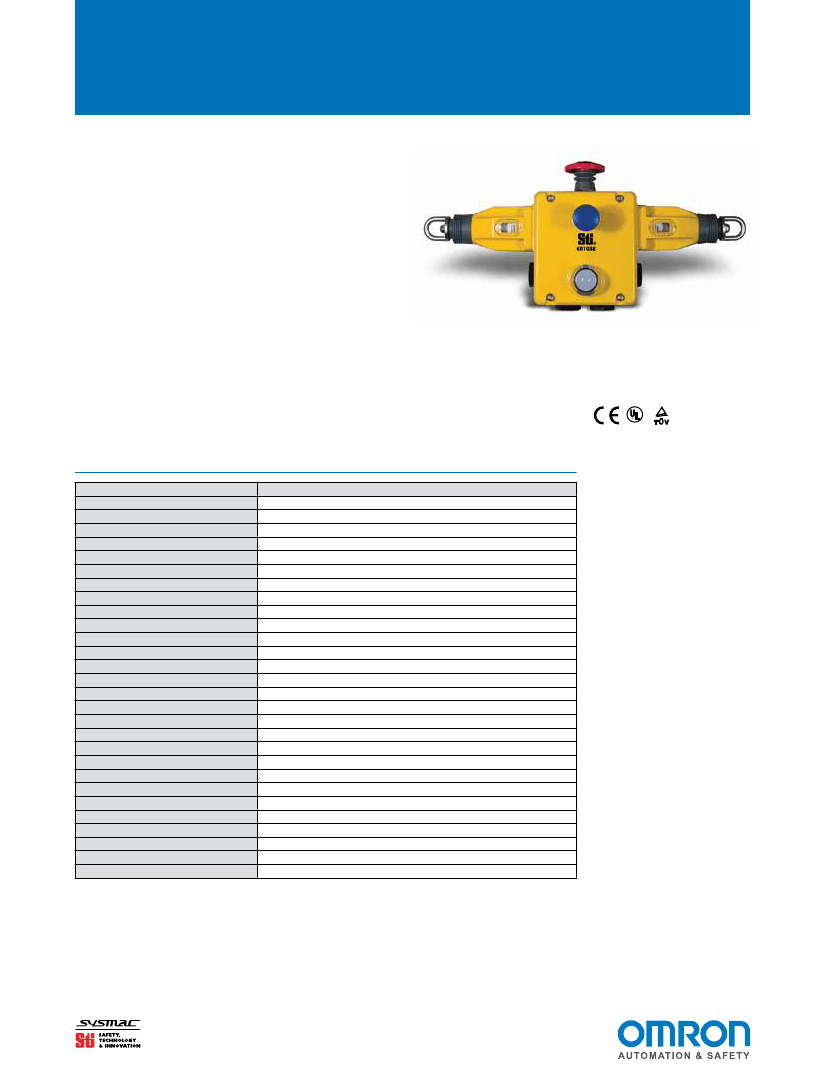

Rope Pull Emergency Stop Devices
ER1032
Rope Pull Emergency Stop Switch
• Rope spans up to 200 m (656 ft.) makes this switch ideal for
applications where long rope spans are required
• IP67 (NEMA 6) enclosure enables the ER1032 switch to withstand
water washdown cleaning
• Integral E-stop—the E-stop button provides emergency stop-
ping capability at the extreme end of the installation and is field
serviceable
• Tension indicator makes system setup and rope tension mainte-
nance easy
• 4 N/C safety contacts and 2 N/O auxiliary contacts satisfy the
most demanding applications
• Vibration tolerant—the snap-acting switch contacts protect
against nuisance tripping due to vibration
• Indicator beacon—the indicator beacon, available in 24 VDC or 120 VAC can
be wired to flash red to indicate a tripped switch or glow a constant green to
indicate a properly reset switch
• Rubber bellows contain UV inhibitor making the switches suitable for outdoor
applications
R
C
US
Specifications
Electrical
All Models
Contact Configurations:
4 N/C + 2 N/O
Safety Contacts:
4 N/C
Switching Ability
AC: 240 V–3 A, 120 V–6 A, Inductive: DC: 24 V–2.5 A, Inductive
Auxiliary Contacts:
2 N/O
Max Switching Current/Volt/Amp:
240 V/720 VA
Minimum Current:
5 V 5 mA DC
Electrical Life:
1 x 10
6
minimum
LED Indicator Beacon
24 VDC or 120 VAC
Mechanical
Mounting:
Any position
Mounting Hardware:
4 x M5 screws
Max Rope Span:
200 m (656 ft.)
Operation Force:
< 125 N (28 lb.)
Tensioning Force to Run Position:
130 N (23 lb.) typical
Case Material:
Die-cast aluminum alloy
Eye Nut Material:
Stainless Steel
Stainless Accessory Items:
304 Stainless Steel
Wiring Entry:
4 x M20 or 4 x 0.5 in. NPT
Weight:
1320 g (42 oz.)
Color:
Yellow
Mechanical Life:
1 x 10
6
minimum
Environmental
Protection:
IP67 (NEMA 6)
Operating Temperature:
-25 to 80°C (-13 to 176°F)
Cleaning:
Water washdown
Compliance
Standards:
IEC947-5-1, IEC947-5-5, EN418, UL508, BS5304
Approvals/Listings:
CE marked for all applicable directives, UL and C-UL, TUV
Specifications are subject to change without notice.
Note: The safety contacts of the STI switches are described as normally closed (N/C)—
i.e., with the rope properly tensioned and the machine able to be started.
Conforms to IEC947-5-1, IEC947-5-5,
EN418, UL508, BS5304
UL and C-UL listed, TUV certified
www.omron247.com
1
