11 Process data...............................................................................................................................
9
11.1
11.2
Process data output words OUT .................................................................................................................... 9
Process data input words IN......................................................................................................................... 12
12 Formats for representing measured values................................................................................
13
12.1
12.2
12.3
12.4
IB IL format (default setting) ......................................................................................................................... 13
IB ST format ................................................................................................................................................. 14
S7-compatible format ................................................................................................................................... 15
Standardized representation format ............................................................................................................. 16
13 Diagnostic codes in the in formats IB IL and standardized representation .................................
16
14 Selecting measuring ranges and sensors ..................................................................................
Tolerance and drift ....................................................................................................................................... 17
8360_en_00
PHOENIX CONTACT
2 / 19

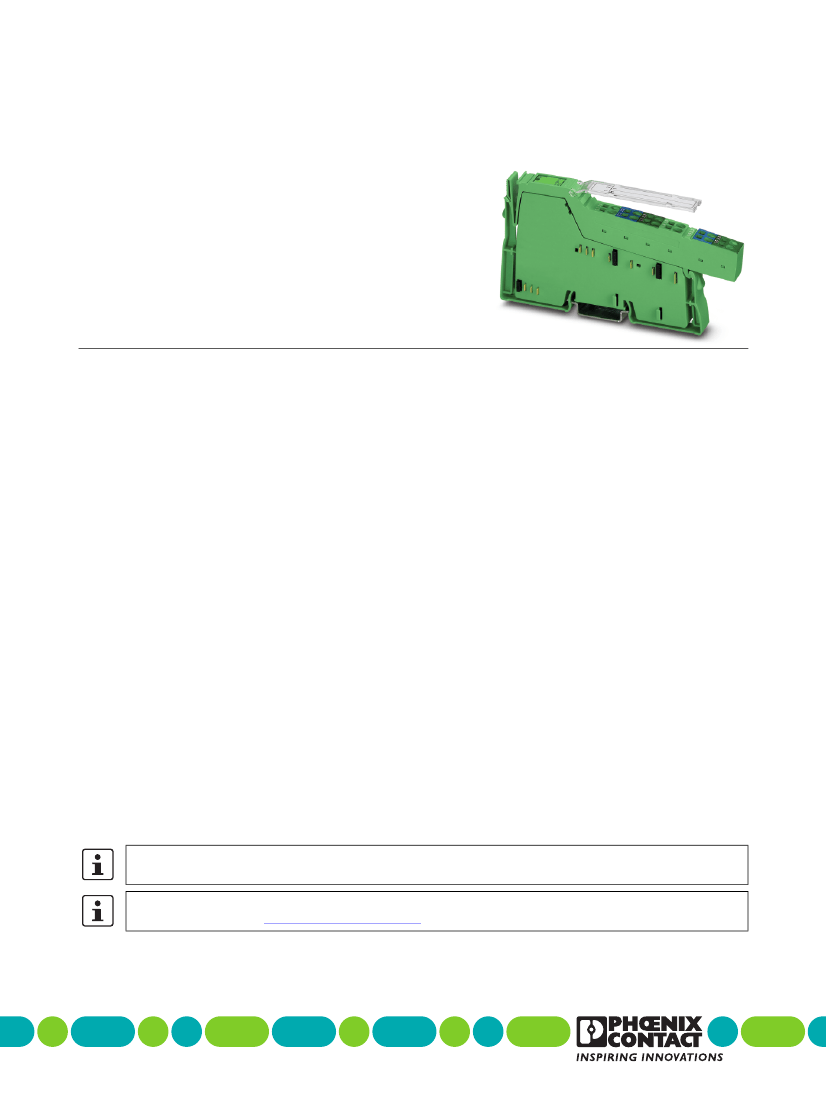

IB IL AI/TEMP 4 RTD-XC-PAC
2
Ordering data
Type
IB IL AI/TEMP 4 RTD-XC-PAC
Terminal blocks
Description
Inline analog input terminal, version for extreme conditions,
complete with accessories (connector and labeling field), 4 inputs, 0-10 V,
resistance temperature detector (RTD), 2-wire connection technology
Order No.
2701165
Pcs. / Pkt.
1
Accessories
Description
Connector as replacement item
Type
IB IL SCN-12-OCP
Order No.
2727624
Pcs. / Pkt.
10
Documentation
Description
“Automation terminals of the Inline product range” user manual
Type
IL SYS INST UM E
Order No.
2698724
Pcs. / Pkt.
1
3
Technical data
Dimensions (nominal sizes in mm)
140,5
119,8
71,5
Housing dimensions (width x height x depth)
12.2 x 140.5 x 71.5 mm
General data
Color
Weight
Operating mode
Connection method for sensors
Ambient temperature (operation)
Green
68 g (with connector)
Process data mode with 2 words
2-wire technology
-25°C ... +55°C (Standard)
-40 °C ... +70°C (Extended, see also the “Tested successfully: Use under
extreme ambient conditions” section of the data sheet).
